300
(11 13/16")
G 1/2"
G 1/2"
Ø42,8
Ø23,8
(Ø15/16")
(Ø1 11/16")
100
100
(3 15/16")
(3 15/16")
G 1/2"
+
G 1/2"
G 1/2"
Ø42,8
(Ø1 11/16")

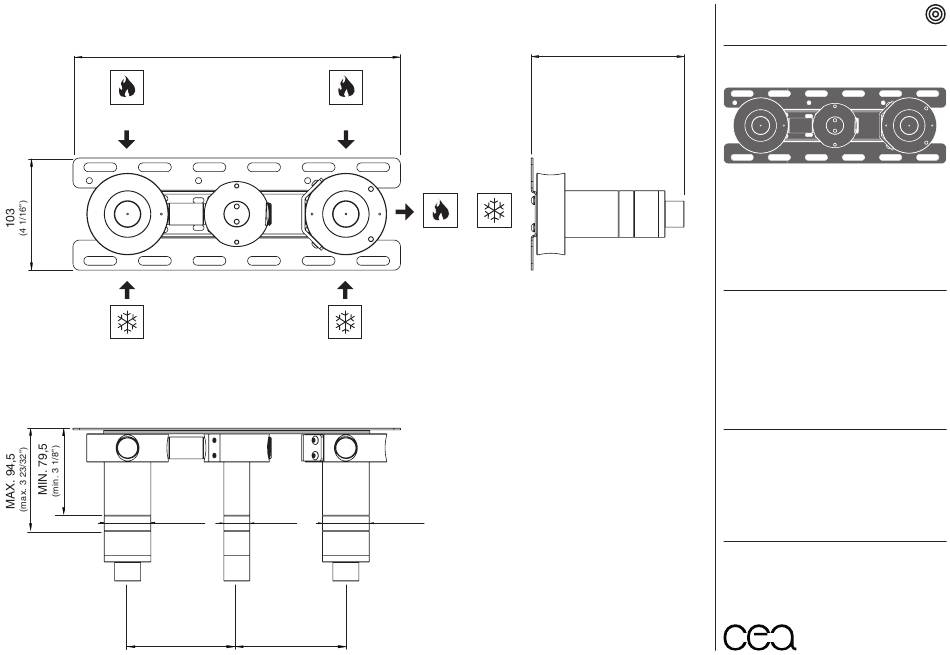

PTR51
141
(5 35/64")
REGISTERED PATENT
CEADESIGN
AISI 304 STAINLESS STEEL
Corpo incasso universale che permette una regolazione in
profondità nella parete
Universal built-in part that allows to adjust its
depth into the wall
PRODOTTI CORRELATI / RELATED PRODUCTS
FLG40
Questi disegni sono proprietà di CEADESIGN SRL s.u. pertanto non potranno
essere utilizzati e/o comunicati a terzi, anche in forma parziale, senza preventiva
autorizzazione. CEADESIGN SRL s.u. si riserva il diritto di apportare modifiche ai
disegni al fine di migliorare il prodotto.
CEADESIGN SRL s.u. has the property rights on these drawings, therefore they
cannot be used and/or transferred to third party, even in partial form, without any
prior authorization. Furthermore CEADESIGN SRL s.u. reserves the right to apply
any change to these drawings in order to upgrade the product.
_ REV15
PTR
SYSTEM
ceadesign.it
loading

Inhaltszusammenfassung für CEA PTR51

  • Seite 1 PTR51 _ REV15 SYSTEM (5 35/64”) (11 13/16”) G 1/2” G 1/2” REGISTERED PATENT CEADESIGN AISI 304 STAINLESS STEEL Corpo incasso universale che permette una regolazione in G 1/2” profondità nella parete Universal built-in part that allows to adjust its depth into the wall G 1/2”...
  • Seite 2 PTR51 _ REV15 SYSTEM AVVERTENZE TECNICHE Risciacquare bene le tubazioni prima del montaggio ed evitare sbalzi di pressione fra i raccordi d’acqua fredda e d’acqua calda. In caso di pressioni statiche superiori a 5 bar si raccomanda D IS l’installazione di un riduttore di pressione per evitare danni alla cartuccia.
  • Seite 3 PTR51 _ REV15 SYSTEM RICAMBI / SPARE PARTS RICC041 Cartuccia / Cartridge RICC042 Cartuccia / Cartridge RICP019 Copertura di protezione / Protective covering RICP027 Copertura di protezione / Protective covering RICS081 Prolunga telescopica / Telescopic extension RICS305 Membrana di isolamento / Insulation membrane...
