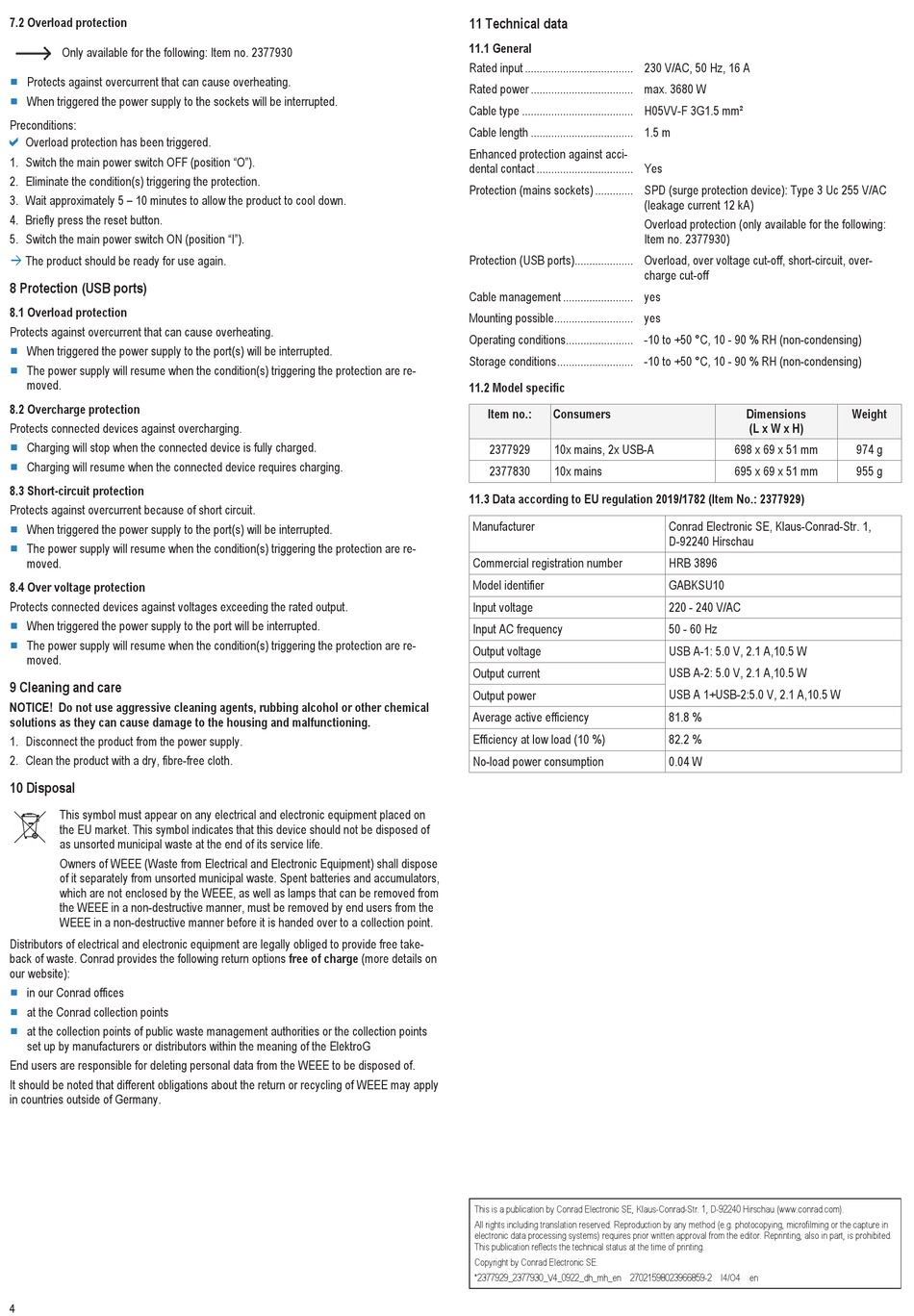

Sygonix SY-4755858 Bedienungsanleitung Seite 4

7.2 Overload protection
Only available for the following: Item no. 2377930
■
Protects against overcurrent that can cause overheating.
■
When triggered the power supply to the sockets will be interrupted.
Preconditions:
a
Overload protection has been triggered.
1. Switch the main power switch OFF (position "O").
2. Eliminate the condition(s) triggering the protection.
3. Wait approximately 5 – 10 minutes to allow the product to cool down.
4. Briefly press the reset button.
5. Switch the main power switch ON (position "I").
à
The product should be ready for use again.
8 Protection (USB ports)
8.1 Overload protection
Protects against overcurrent that can cause overheating.
■
When triggered the power supply to the port(s) will be interrupted.
■
The power supply will resume when the condition(s) triggering the protection are re-
moved.
8.2 Overcharge protection
Protects connected devices against overcharging.
■
Charging will stop when the connected device is fully charged.
■
Charging will resume when the connected device requires charging.
8.3 Short-circuit protection
Protects against overcurrent because of short circuit.
■
When triggered the power supply to the port(s) will be interrupted.
■
The power supply will resume when the condition(s) triggering the protection are re-
moved.
8.4 Over voltage protection
Protects connected devices against voltages exceeding the rated output.
■
When triggered the power supply to the port will be interrupted.
■
The power supply will resume when the condition(s) triggering the protection are re-
moved.
9 Cleaning and care
NOTICE! Do not use aggressive cleaning agents, rubbing alcohol or other chemical
solutions as they can cause damage to the housing and malfunctioning.
1. Disconnect the product from the power supply.
2. Clean the product with a dry, fibre-free cloth.
10 Disposal
This symbol must appear on any electrical and electronic equipment placed on
the EU market. This symbol indicates that this device should not be disposed of
as unsorted municipal waste at the end of its service life.
Owners of WEEE (Waste from Electrical and Electronic Equipment) shall dispose
of it separately from unsorted municipal waste. Spent batteries and accumulators,
which are not enclosed by the WEEE, as well as lamps that can be removed from
the WEEE in a non-destructive manner, must be removed by end users from the
WEEE in a non-destructive manner before it is handed over to a collection point.
Distributors of electrical and electronic equipment are legally obliged to provide free take-
back of waste. Conrad provides the following return options free of charge (more details on
our website):
■
in our Conrad offices
■
at the Conrad collection points
■
at the collection points of public waste management authorities or the collection points
set up by manufacturers or distributors within the meaning of the ElektroG
End users are responsible for deleting personal data from the WEEE to be disposed of.
It should be noted that different obligations about the return or recycling of WEEE may apply
in countries outside of Germany.
4
11 Technical data
11.1 General
Rated input ..................................... 230 V/AC, 50 Hz, 16 A
Rated power ................................... max. 3680 W
Cable type ...................................... H05VV-F 3G1.5 mm²
Cable length ................................... 1.5 m
Enhanced protection against acci-
dental contact ................................. Yes
Protection (mains sockets) ............. SPD (surge protection device): Type 3 Uc 255 V/AC
Protection (USB ports).................... Overload, over voltage cut-off, short-circuit, over-
Cable management ........................ yes
Mounting possible........................... yes
Operating conditions....................... -10 to +50 °C, 10 - 90 % RH (non-condensing)
Storage conditions.......................... -10 to +50 °C, 10 - 90 % RH (non-condensing)
11.2 Model specific
Item no.: Consumers
2377929 10x mains, 2x USB-A
2377830 10x mains
11.3 Data according to EU regulation 2019/1782 (Item No.: 2377929)
Manufacturer
Commercial registration number
Model identifier
Input voltage
Input AC frequency
Output voltage
Output current
Output power
Average active efficiency
Efficiency at low load (10 %)
No-load power consumption
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com).
All rights including translation reserved. Reproduction by any method (e.g. photocopying, microfilming or the capture in
electronic data processing systems) requires prior written approval from the editor. Reprinting, also in part, is prohibited.
This publication reflects the technical status at the time of printing.
Copyright by Conrad Electronic SE.
*2377929_2377930_V4_0922_dh_mh_en 27021598023966859-2 I4/O4 en
(leakage current 12 kA)
Overload protection (only available for the following:
Item no. 2377930)
charge cut-off
Dimensions
(L x W x H)
698 x 69 x 51 mm
695 x 69 x 51 mm
Conrad Electronic SE, Klaus-Conrad-Str. 1,
D-92240 Hirschau
HRB 3896
GABKSU10
220 - 240 V/AC
50 - 60 Hz
USB A-1: 5.0 V, 2.1 A,10.5 W
USB A-2: 5.0 V, 2.1 A,10.5 W
USB A 1+USB-2:5.0 V, 2.1 A,10.5 W
81.8 %
82.2 %
0.04 W
Weight
974 g
955 g
