BoConcept Volani 4430 Montageanleitung

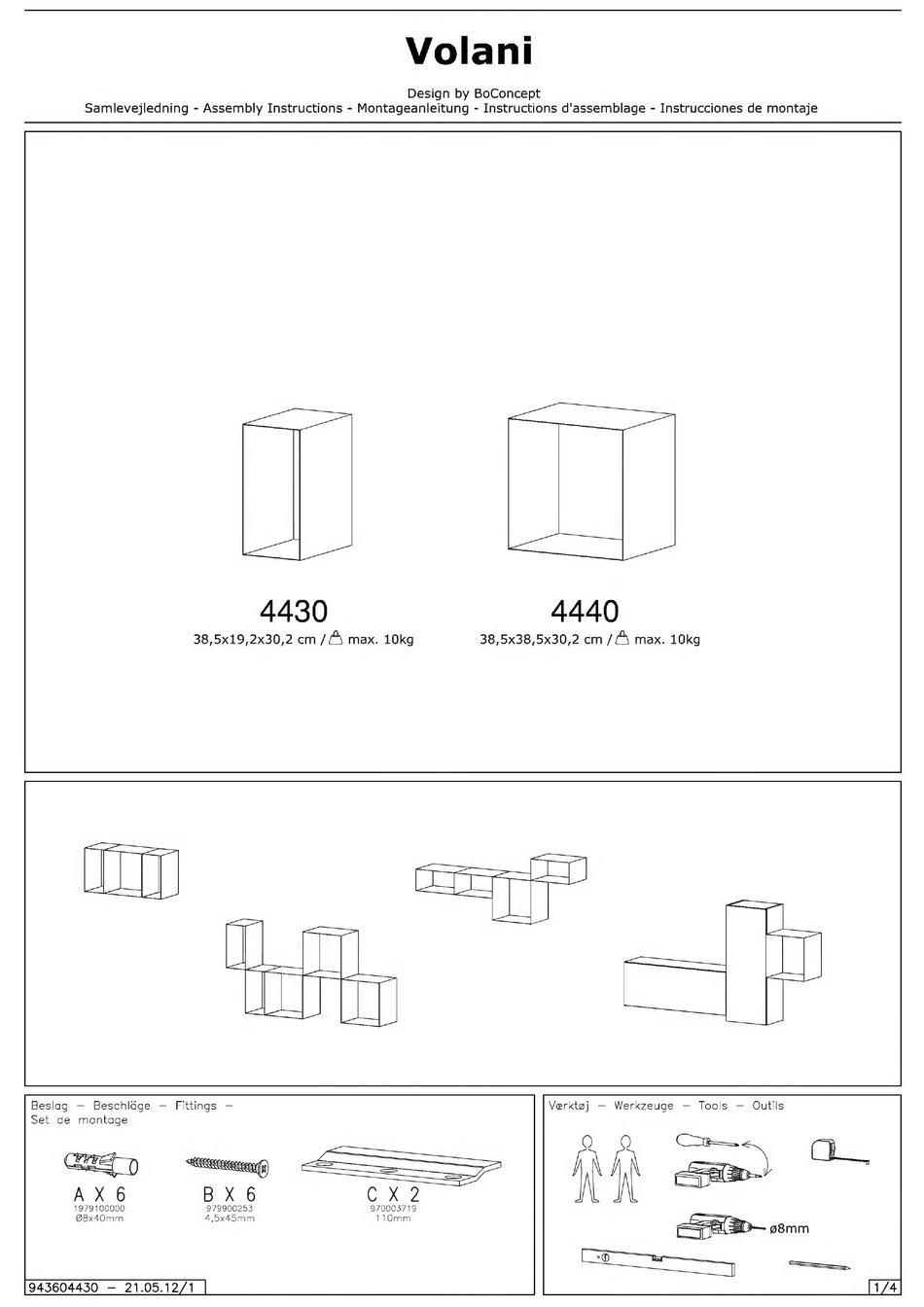

Volani
Design by BoConcept
Samlevejledning - Assembly Instructions - Montageanleitung - Instructions d'assemblage - Instrucciones de montaje
4430 4440
38,5x19,2x30,2 cm /C\ max. 10kg 38,5x38,5x30,2 cm / Ô max. 10kg
Beslag — Beschläge — Fittings — Verktej — Werkzeuge — Tools — Outils
Set de montage
SC — Eh Gee
G)
E
i i
en
AX 6 BX 6 CX2
1979100000 979900253 970003719
@8x40mm 4,5x45mm 110mm
943604430 — 21.05.12/1
