Original operating instruction - GOJAK 6313

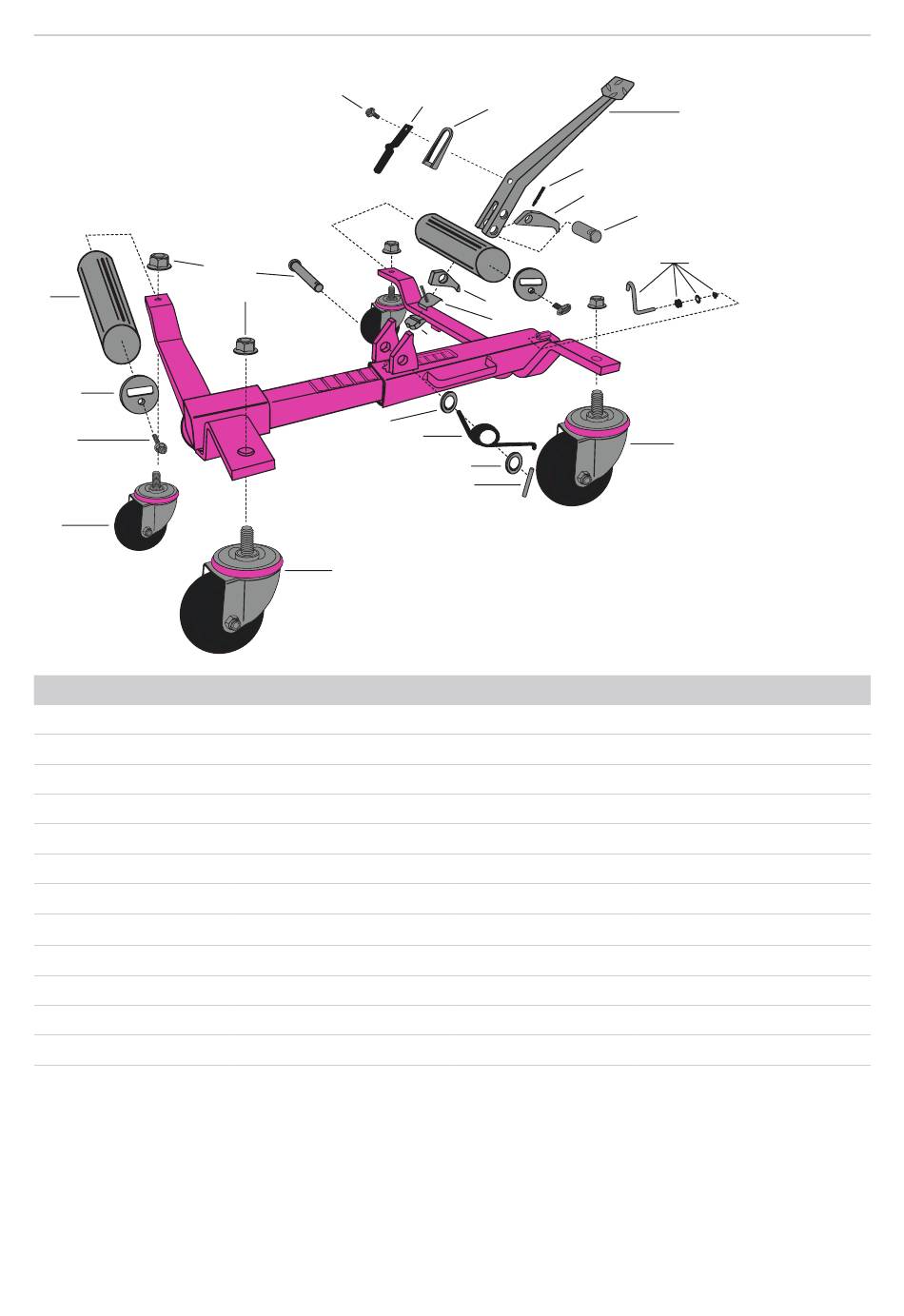

Individual parts
19
20
21
10
Nr.
Article number
1
411300
411301
2
411302
3
4
411303
411304
5
6
411305
411306
7
411307
8
411308
9
411309
10
11
411310
411311
12
Specifications
Material: Steel, partially galvanised
Weight [kg]: 21,3
Dimensions W x H x L [mm]: 625 x 220 x 675
GoJak wheel ø [mm]: 100/125
Permissible tyre width [mm]: up to 330
Technically permissible load capacity [kg]: 715
Technically permissible speed [km/h]: 10
8
11
2
13
12
Name
Locking claw
Lower pivot pin
Pedal spring RIGHT
Pedal spring LEFT
Disc
Split pin
Spring for switch lever
Screw with washer
Switch lever
Wheel 4'' incl. Bearings/Nut
Wheel fastening nut
Wheel 5'' incl. Bearings/Nut
7
9
1
17
18
5
3/4
5
6
Nr.
Article number
13
411312
14
411313
15
411314
16
411315
17
411316
18
411317
19
411334
20
411335
21
411307
22
411321
23
411322
24
411323
24
15
14
16
22/23
12
Name
Wheel fastening nut
Working claw
Spring for working claw
Upper pivot pin
Bracket for stop disc
Stop disc
Steel roller drum
Roller bearing
Screw
Pedal lock right
Pedal lock left
Pedal
