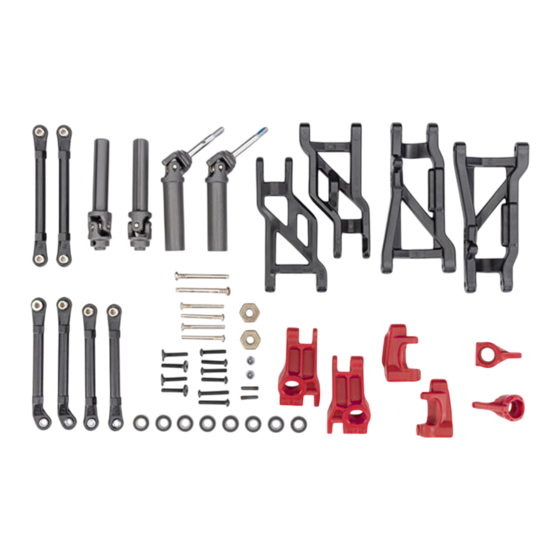

Outer Driveline & Suspension Upgrade Kit Installation Instructions

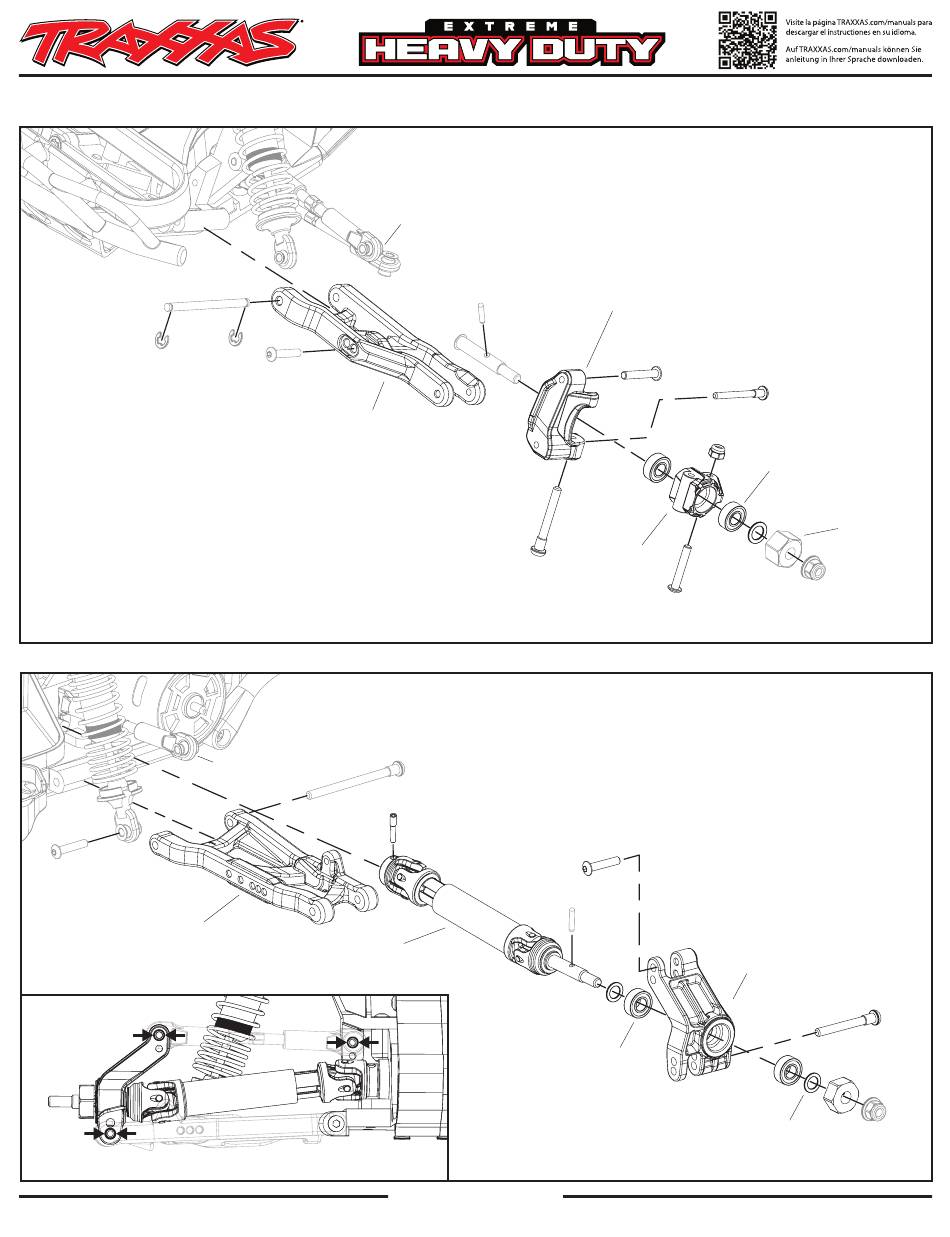

FRONT ASSEMBLY
Fig. 1
2640*
1633*
E-Clip
Refer to your model's exploded view
diagrams for help with disassembly.
1. Remove the wheel/tire and wheel hex.
2. Remove the stub axle from the steering block.
Retain and reuse the stub axle.
3. Remove the suspension arm, caster block (c-hub), and
steering block assembly from the front bulkhead.
4. Install the included extreme heavy duty parts and
suspension arms as shown in Fig. 1.
5. Repeat steps 1-4 for the other side.
*Reuse parts and hardware in these locations.
REAR ASSEMBLY
Fig. 2
2579*
3x15 BCS
2555A
2555G
2555X
2555T
2555R
Suspension Arm
Installation Locations
Traxxas, 6250 Traxxas Way, TX 75070, Phone: 972-549-3000, Fax: 972-549-3011, e-mail: support@Traxxas.com
2579*
3x15mm BCS
3631X
3631A
3631G
3631R
3631T
Suspension Arm
9142*
46mm
SEE NOTE
†
6852A
Driveshaft Assembly
TR A XX A S. c om
SEE NOTE
†
2754*
3637*
Stub Axle
9142
9137
26mm
9137-GRAY
9137-BLUE
9137-GRN
9137-ORNG
9137-RED
Steering Block
Refer to your model's exploded view diagrams for help with disassembly.
1. Remove the wheel/tire and wheel hex.
2. Remove the suspension arm and axle carrier.
3. Remove the driveshaft assembly from the differential output shaft of the transmission.
4. Install the included extreme heavy duty parts and suspension arms as shown in Fig. 2.
5. Repeat steps 1-4 for the other side.
*Reuse parts and hardware in these locations.
†Note: Install the included extreme heavy duty fixed camber links for hassle-free alignment.
6852A
M3/12.5
2583
3x18 BCS
2754*
1985
5x8x0.5 PTW
#9181, 9181-RED, 9181-BLUE, 9181-GRN, 9181-GRAY
†Note: Install the included extreme heavy duty fixed camber
links for hassle-free alignment.
9136
9136-GRAY
9136-BLUE
9136-GRN
9136-ORNG
9136-RED
Caster Block
2583
3x18mm BCS
9142
26mm
2745
3.0 NL
5x11x4 BB
5116A
5x11x4 BB
2579
3x15mm BCS
9150
9150-GRAY
9150-BLUE
9150-GRN
9150-ORNG
9150-RED
Axle Carrier
5116A
5x11x4 BB
5116A
5x11x4 BB
1985
5x8x0.5 PTW
Covers parts
5116A
1985
5x8x0.5 PTW
3654*
Wheel Hex
3647*
4.0 NL
9142
31mm
3647*
4.0 NL
1654R
Wheel Hex
KC23010-R01
240614
