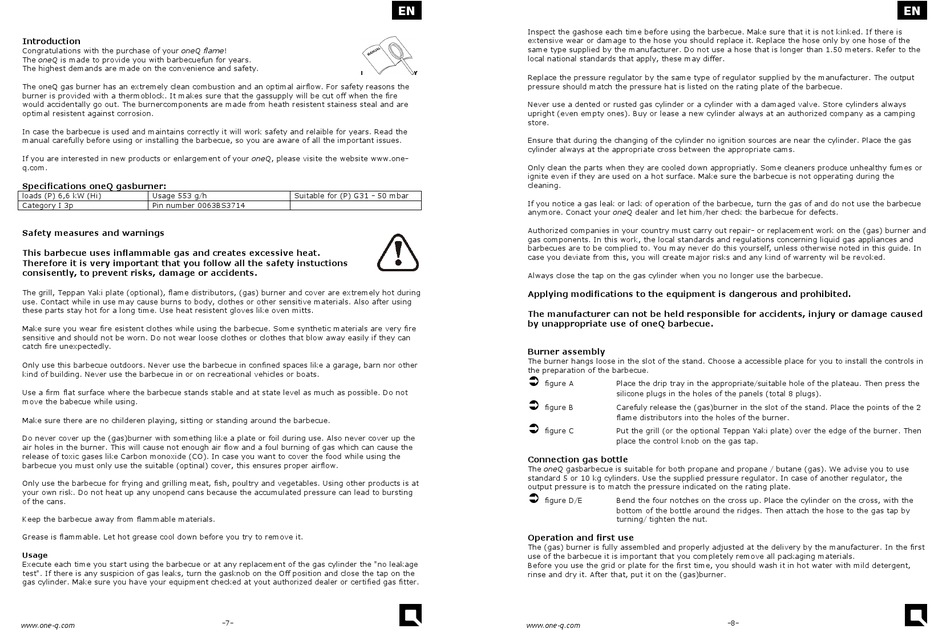

Introduction
Congratulations with the purchase of your oneQ flame!
The oneQ is made to provide you with barbecuefun for years.
The highest demands are made on the convenience and safety.
The oneQ gas burner has an extremely clean combustion and an optimal airflow. For safety reasons the
burner is provided with a thermoblock. It makes sure that the gassupply will be cut off when the fire
would accidentally go out. The burnercomponents are made from heath resistent stainess steal and are
optimal resistent against corrosion.
In case the barbecue is used and maintains correctly it will work safety and relaible for years. Read the
manual carefully before using or installing the barbecue, so you are aware of all the important issues.
If you are interested in new products or enlargement of your oneQ, please visite the website www.one-
q.com.
Specifications oneQ gasburner:
loads (P) 6,6 kW (Hi) Usage 553 g/h
Category I 3p Pin number 0063BS3714
Safety measures and warnings
This barbecue uses inflammable gas and creates excessive heat.
Therefore it is very important that you follow all the safety instuctions
consisently, to prevent risks, damage or accidents.
The grill, Teppan Yaki plate (optional), flame distributors, (gas) burner and cover are extremely hot during
use. Contact while in use may cause burns to body, clothes or other sensitive materials. Also after using
these parts stay hot for a long time. Use heat resistent gloves like oven mitts.
Make sure you wear fire esistent clothes while using the barbecue. Some synthetic materials are very fire
sensitive and should not be worn. Do not wear loose clothes or clothes that blow away easily if they can
catch fire unexpectedly.
Only use this barbecue outdoors. Never use the barbecue in confined spaces like a garage, barn nor other
kind of building. Never use the barbecue in or on recreational vehicles or boats.
Use a firm flat surface where the barbecue stands stable and at state level as much as possible. Do not
move the babecue while using.
Make sure there are no childeren playing, sitting or standing around the barbecue.
Do never cover up the (gas)burner with something like a plate or foil during use. Also never cover up the
air holes in the burner. This will cause not enough air flow and a foul burning of gas which can cause the
release of toxic gases like Carbon monoxide (CO). In case you want to cover the food while using the
barbecue you must only use the suitable (optinal) cover, this ensures proper airflow.
Only use the barbecue for frying and grilling meat, fish, poultry and vegetables. Using other products is at
your own risk. Do not heat up any unopend cans because the accumulated pressure can lead to bursting
of the cans.
Keep the barbecue away from flammable materials.
Grease is flammable. Let hot grease cool down before you try to remove it.
Usage
Execute each time you start using the barbecue or at any replacement of the gas cylinder the "no leakage
test". If there is any suspicion of gas leaks, turn the gasknob on the Off position and close the tap on the
gas cylinder. Make sure you have your equipment checked at yout authorized dealer or certified gas fitter.
www.one-q.com
EN NL
READ CAREFULLY
Suitable for (P) G31 - 50 mbar
-7-
Inspect the gashose each time before using the barbecue. Make sure that it is not kinked. If there is
extensive wear or damage to the hose you should replace it. Replace the hose only by one hose of the
same type supplied by the manufacturer. Do not use a hose that is longer than 1.50 meters. Refer to the
local national standards that apply, these may differ.
Replace the pressure regulator by the same type of regulator supplied by the manufacturer. The output
pressure should match the pressure hat is listed on the rating plate of the barbecue.
Never use a dented or rusted gas cylinder or a cylinder with a damaged valve. Store cylinders always
upright (even empty ones). Buy or lease a new cylinder always at an authorized company as a camping
store.
Ensure that during the changing of the cylinder no ignition sources are near the cylinder. Place the gas
cylinder always at the appropriate cross between the appropriate cams.
Only clean the parts when they are cooled down appropriatly. Some cleaners produce unhealthy fumes or
ignite even if they are used on a hot surface. Make sure the barbecue is not opperating during the
cleaning.
If you notice a gas leak or lack of operation of the barbecue, turn the gas of and do not use the barbecue
anymore. Conact your oneQ dealer and let him/her check the barbecue for defects.
Authorized companies in your country must carry out repair- or replacement work on the (gas) burner and
gas components. In this work, the local standards and regulations concerning liquid gas appliances and
barbecues are to be complied to. You may never do this yourself, unless otherwise noted in this guide. In
case you deviate from this, you will create major risks and any kind of warrenty wil be revoked.
Always close the tap on the gas cylinder when you no longer use the barbecue.
Applying modifications to the equipment is dangerous and prohibited.
The manufacturer can not be held responsible for accidents, injury or damage caused
by unappropriate use of oneQ barbecue.

Burner assembly

The burner hangs loose in the slot of the stand. Choose a accessible place for you to install the controls in
the preparation of the barbecue.
!
figure A Place the drip tray in the appropriate/suitable hole of the plateau. Then press the
silicone plugs in the holes of the panels (total 8 plugs).
!
figure B Carefuly release the (gas)burner in the slot of the stand. Place the points of the 2
flame distributors into the holes of the burner.
!
figure C Put the grill (or the optional Teppan Yaki plate) over the edge of the burner. Then
place the control knob on the gas tap.
Connection gas bottle
The oneQ gasbarbecue is suitable for both propane and propane / butane (gas). We advise you to use
standard 5 or 10 kg cylinders. Use the supplied pressure regulator. In case of another regulator, the
output pressure is to match the pressure indicated on the rating plate.
!
figure D/E Bend the four notches on the cross up. Place the cylinder on the cross, with the
bottom of the bottle around the ridges. Then attach the hose to the gas tap by
turning/ tighten the nut.
Operation and first use
The (gas) burner is fully assembled and properly adjusted at the delivery by the manufacturer. In the first
use of the barbecue it is important that you completely remove all packaging materials.
Before you use the grid or plate for the first time, you should wash it in hot water with mild detergent,
rinse and dry it. After that, put it on the (gas)burner.
