3.3 Function status and Drives

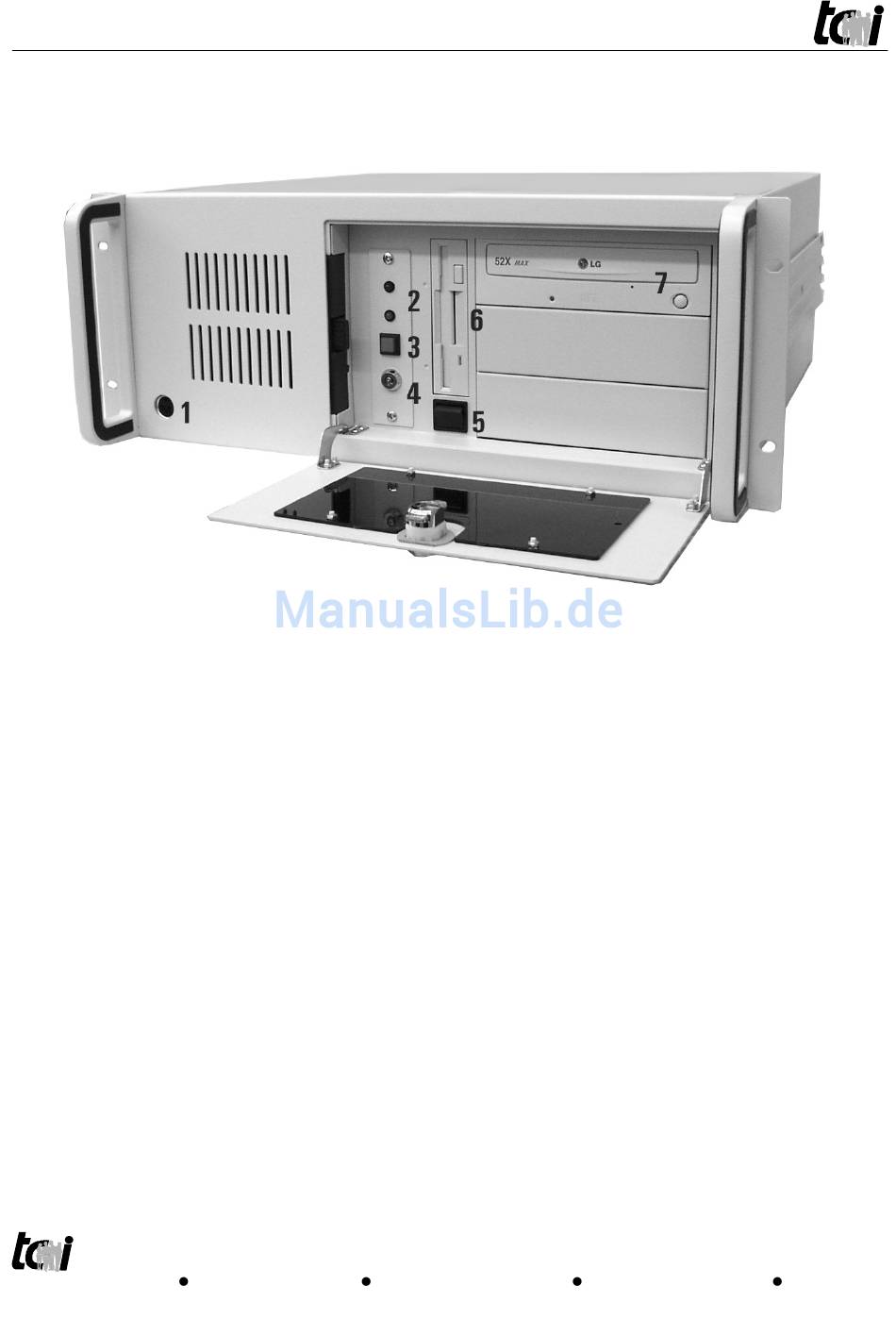

1: DIN-Connection for keyboard (only backplane version)
2: Control-LED
3: Reset push button
4: Keylock, depending on motherboard
5: On/Off push-button
6: 3.5", 1,44 MB Floppy-Drive
7: IDE CD-ROM-Drive
There are available 3x 5.25" and 1x 3.5" installation slots
Ludwig-Rinn-Str. 10-14
Red=access on HDD
Gren=Power on
