Tools
●
Electric drill
●
Phillips screwdriver
●
T20 torx screwdriver

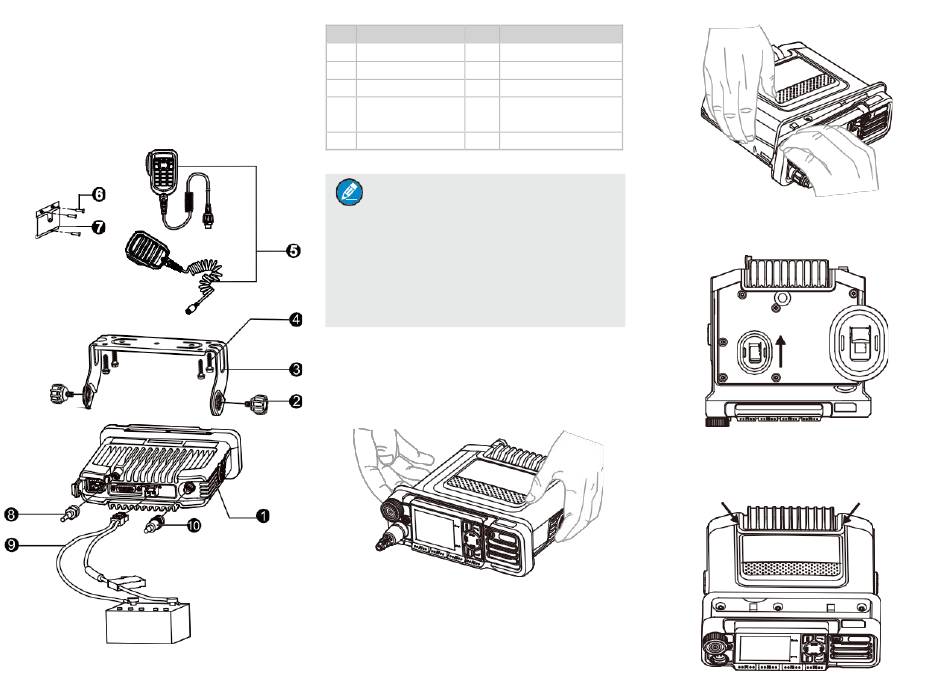

Parts
No. Part Name
No. Part Name
1
Radio
6
Screw (4 mm x 16 mm)
2
Locking Knobs
7
Microphone Hanger
3
Mounting Bracket
8
GPS Antenna
Screw (4.8 mm x 20
4
9
Power Cord (with fuse)
mm)
5
Palm Microphone
10
RF Antenna
NOTE
●
The RF antenna must be purchased separately.
●
The GPS antenna is available only for radios
with the GPS feature.
●
The palm microphone without keypad (with
⑥ and ⑦) is available for the conventional
radio, and the one with keypad (with ⑥ and
⑦) is for the trunking radio.
Procedure
Installing the TF Card
5.
Release the latch on both sides of the plastic upper cover.
6.
Hold the front panel, and then pull and remove the
plastic upper cover.
2
7.
Insert the TF card to the metal card slot properly as
directed in the following figure.
8.
Align the concave side of the plastic upper cover with
the aluminum chassis, and then press the cover until the
latches are properly locked.
