Accessing the Web User Interface
By default, the QSW - M3224-24T switch support DHCP clients. When connected to a network, the switch
automatically obtains an IP address from a DHCP server. You can then use Qfinder Pro to locate the
switch and access QSS.

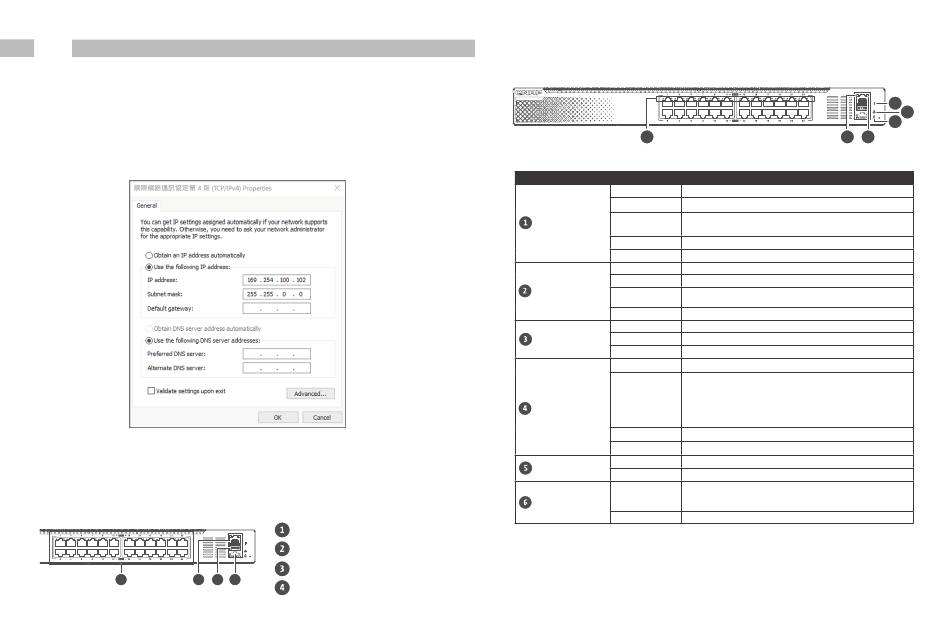

If the device is unable to connect to a DHCP server to obtain an IP address, you can access the web user
interface by changing the IP address of the computer to 169.254.100.102.
Note : Ensure that you change the IP address of the computer to its previous setting after configuring the switch.
The default IP address of the switch is 169.254.100.101.
Logging into the Web User Interface
Default username : admin
Default password : This is a unique and QNAP-encrypted [Cloud Key] consisting of the letter 'Q' followed
by eight digits, making it distinct for each device. Displayed on the device's label.

Hardware Overview

Front Panel Ports
1 2 3
10GbE RJ45 ports
MGMT
RJ45 Management port
Rst
Console
Reserved for repair purposes
4
USB Type-C Console port
LED Behavior
1
LED Status
Green The link speed is operating at 10 Gbps.
Flashes Green Data is being transmitted.
The link speed is operating at 5 Gbps, 2.5 Gbps, 1Gbps, or
10GbE RJ45
Amber
100Mbps.
Flashes Amber Data is being transmitted.
Off There is no network connection.
Green The link speed is operating at 1 Gbps.
Amber The link speed is operating at 100 Mbps.
Management port
Flashes Green
(Left-speed)
Data is being transmitted.
or Amber
Off There is no network connection.
Amber The port is operating as an uplink port.
Management port
(Right-link and Flashes Amber Data is being transmitted.
activity)
Off There is no network connection.
Green The device is ready.
• The device is being initialized.
• The firmware is being updated.
Flashes Green Note : When updating the firmware, do not remove the power
System Status
cord or USB cable, and do not force-exit the application.
• The device is being reset.
Red A fatal device error occurred.
Off The device is powered off.
Green Fan status is fine.
Fan Status
Red Fatal error on the fan.
The switch is being located.
Flashes amber Note: The locator LED flashes for 30 minutes when the
Locator
locator function is enabled.
Off The locator function is disabled.
MGMT
4
5
Rst
6
Console
2 3
Description
