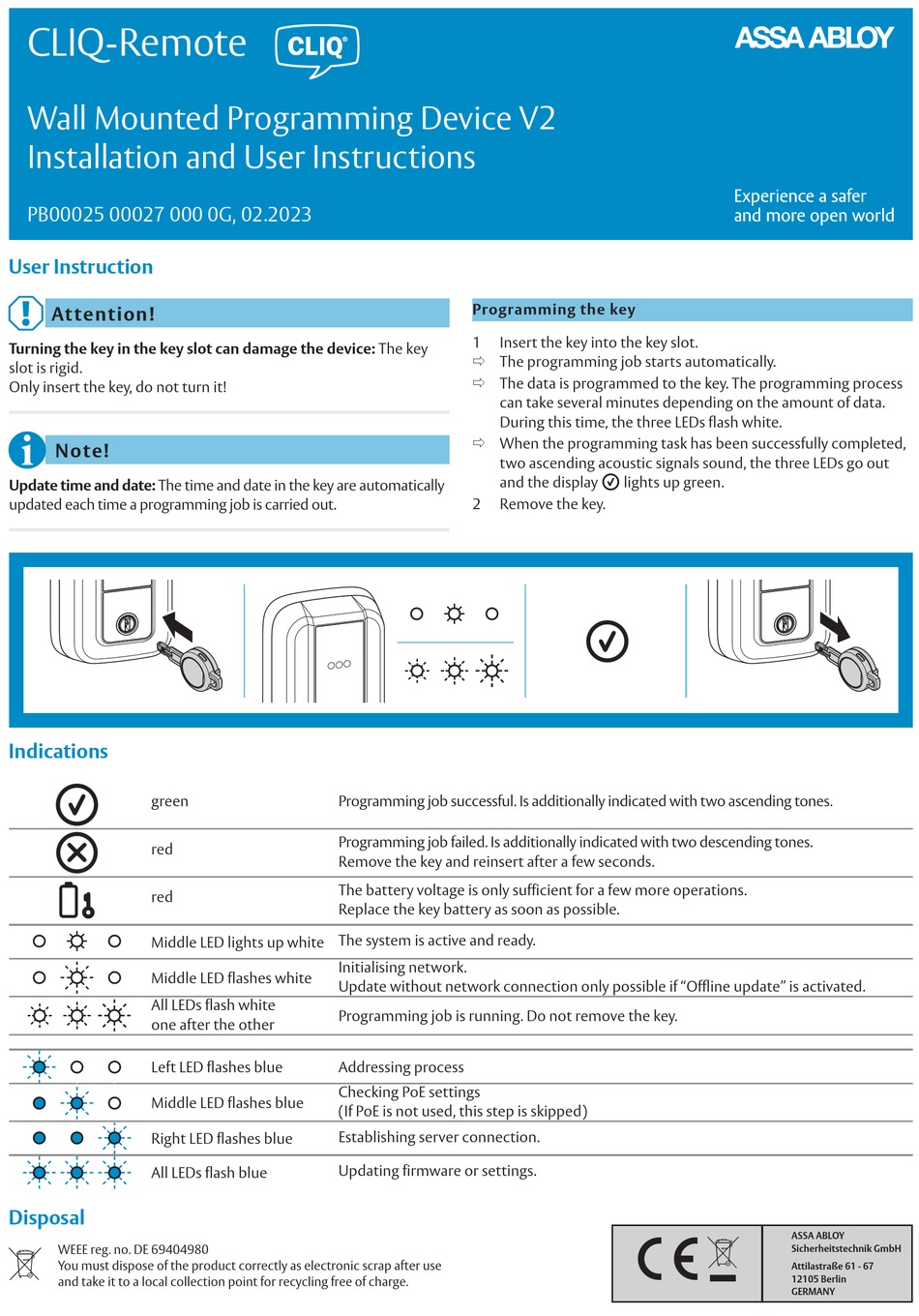

CLIQ-Remote
Wall Mounted Programming Device V2
Installation and User Instructions
PB00025 00027 000 0G, 02.2023
User Instruction
A
At tention!
Turning the key in the key slot can damage the device: The key
slot is rigid.
Only insert the key, do not turn it!
I
Note!
Update time and date: The time and date in the key are automatically
updated each time a programming job is carried out.
Indications
green
red
red
Middle LED lights up white The system is active and ready.
Middle LED flashes white
All LEDs flash white
one after the other
Left LED flashes blue
Middle LED flashes blue
Right LED flashes blue
All LEDs flash blue
Disposal
N
WEEE reg. no. DE 69404980
You must dispose of the product correctly as electronic scrap after use
and take it to a local collection point for recycling free of charge.
Programming the key
1
Insert the key into the key slot.
Ö The programming job starts automatically.
Ö The data is programmed to the key. The programming process
can take several minutes depending on the amount of data.
During this time, the three LEDs flash white.
Ö When the programming task has been successfully completed,
two ascending acoustic signals sound, the three LEDs go out
and the display
2
Remove the key.
Programming job successful. Is additionally indicated with two ascending tones.
Programming job failed. Is additionally indicated with two descending tones.
Remove the key and reinsert after a few seconds.
The battery voltage is only sufficient for a few more operations.
Replace the key battery as soon as possible.
Initialising network.
Update without network connection only possible if "Offline update" is activated.
Programming job is running. Do not remove the key.
Addressing process
Checking PoE settings
(If PoE is not used, this step is skipped)
Establishing server connection.
Updating firmware or settings.
lights up green.
C
ASSA ABLOY
M
Sicherheitstechnik GmbH
Attilastraße 61 - 67
12105 Berlin
GERMANY
