1. Description

2. Technical Data

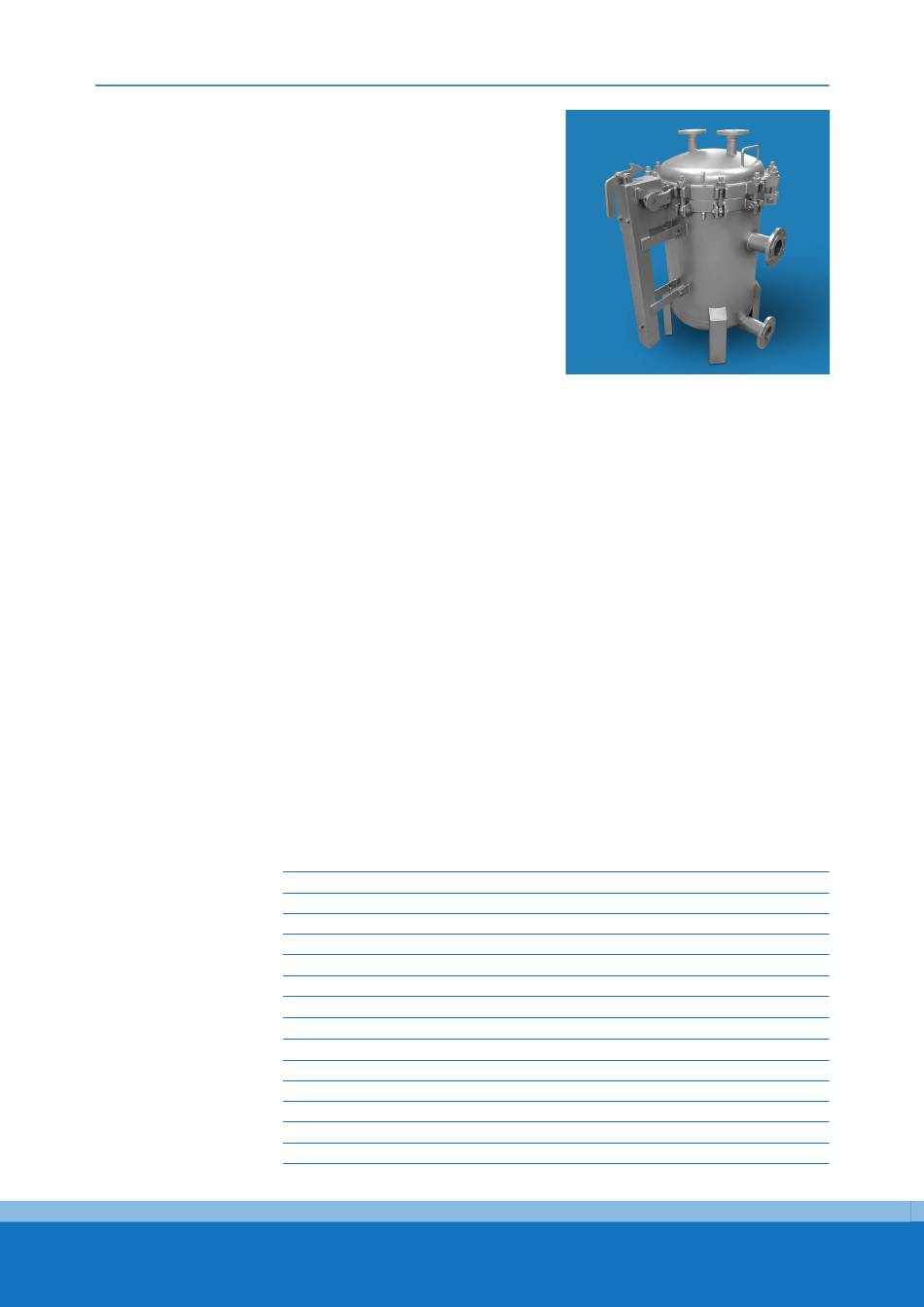

MWTBF Multiple Bag Filter
Housing with hinged cover
and encased spring assembly
or lift-swivel device
Multi Bag Filter Housing with hinged cover and encased spring assembly,
alternatively with lift-swivel device, are for 3/4/6/8/10 filter bags and in the two
sizes available for size 1 or size 2 filter bags. The spring assembly variant with
spring pack is is adjusted that way that the hinged cover can be opened and
closed easily. For filter exchange or maintenance and inspection the cover
can be fixed additionally in its stop position. With the lift-swivel device, the
hinged cover is cranked upwards by means of a handwheel and then
swiveled to the side.
Inside the housing is the mounting plate with the support baskets and locking
devices for 3/4/6/8/10 filter bags of size 1 or 2, depending on the variant
selected. The bagadaption of the Multiple Bag Filter Housing is constructed
that way, that WFB-Filter bags as well as non-company filter bags with higher
collar rings can be installed. Mesh lined strainer baskets, LUPUS ® II-elements
or magnet inserts are additional installation options for Multiple Bag Filter
Housing. The connections for inlet and outlet can be delivered in different
nominal sizes and terminations and the location of the nozzles can be adjusted
according to the onsite needs.
Accessories like drain valves, vents, volume reducers and Pressure gauges can
be supplied.
Material: Housing: stainless steel 1.4301 ( AISI304 ) / 1.4404 ( AISI 316 L )
Basket: stainless steel 1.4301 ( AISI304 ) / 1.4404 ( AISI 316 L )
O-Rings: Viton ( Viton-FEP-encapsulated, EPDM, Silicone, Buna )
In- / Outlet: size, location and termination adjustable to on-site needs
2 x ½" internal threads ( adjustable to on-site needs )
Vent:
Drain: 1" internal thread ( adjustable to on-site needs )
Filter bags: 3/4/6/8/10 size 1 or size 2
Installations: stainless steel 1.4301 ( AISI304 ) / 1.4404 ( AISI 316 L )
Differential pressure: max. 1.5 bar
Pressure: max. 6 / 10 / 16 bar
Temperature: max. 95°C
With PP-filter bags max. 70°C because of bag material
Flow rate: The flow rate correlates to the nominal diameter of the
housing connection and the characteristic curve of the
chosen filter bags.
