Intos Electronic IDE Dual Compact Flash Bedienungsanleitung Seite 4

LED Indicators:
•
Power: Lights up when Power-on (Red)
•
ACT (Disk Activity): Blinks during CF card read/write activity (Green)
•
CF1 (Card Detect): Lights up when a CF card is inserted to the Master CF socket (Yellow)
•
CF2 (Card Detect): Lights up when a CF card is inserted to the Slave CF socket (Yellow)

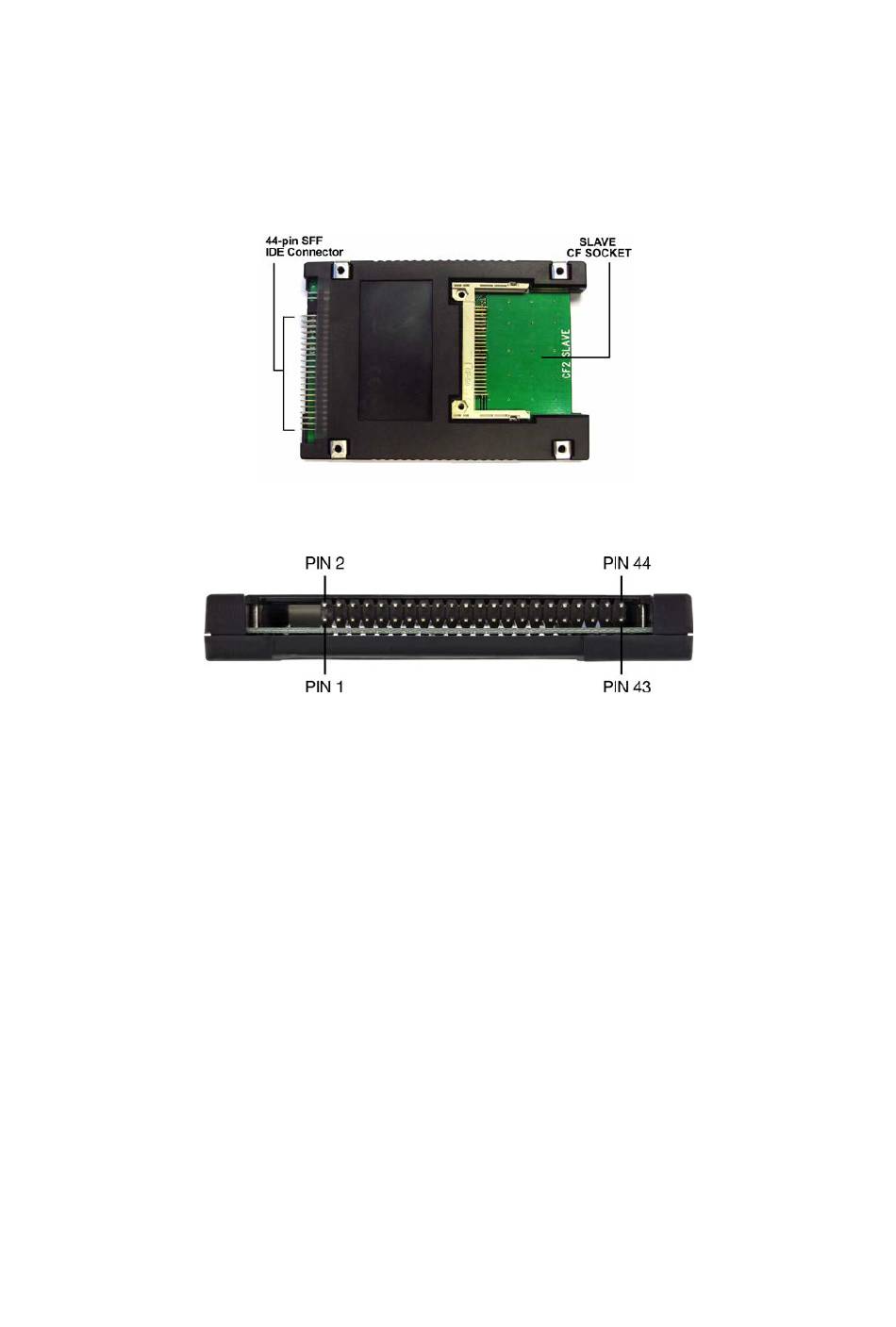

Bottom side:
IDE connector:
Please note the correct polarity when connecting the IDE connector, PIN1 is shown in the lower left side as follows:
