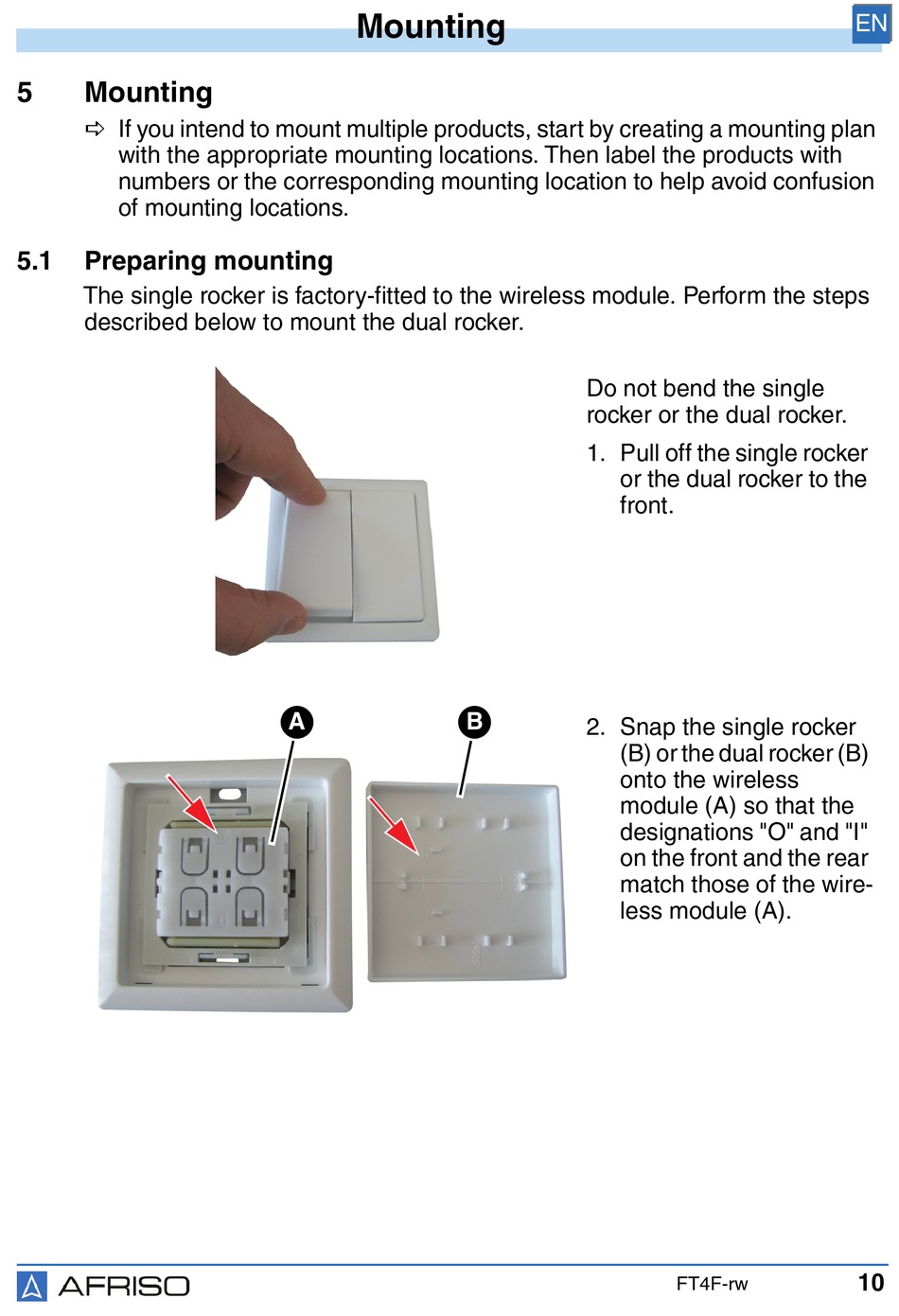

5 Mounting
 If you intend to mount multiple products, start by creating a mounting plan
with the appropriate mounting locations. Then label the products with
numbers or the corresponding mounting location to help avoid confusion
of mounting locations.
5.1 Preparing mounting
The single rocker is factory-fitted to the wireless module. Perform the steps
described below to mount the dual rocker.
Mounting
A
Do not bend the single
rocker or the dual rocker.
1. Pull off the single rocker
or the dual rocker to the
front.
B
2. Snap the single rocker
(B) or the dual rocker (B)
onto the wireless
module (A) so that the
designations "O" and "I"
on the front and the rear
match those of the wire-
less module (A).
