Noark MOD31 Kurzanleitung Seite 2

G
I
L1
L2
L3

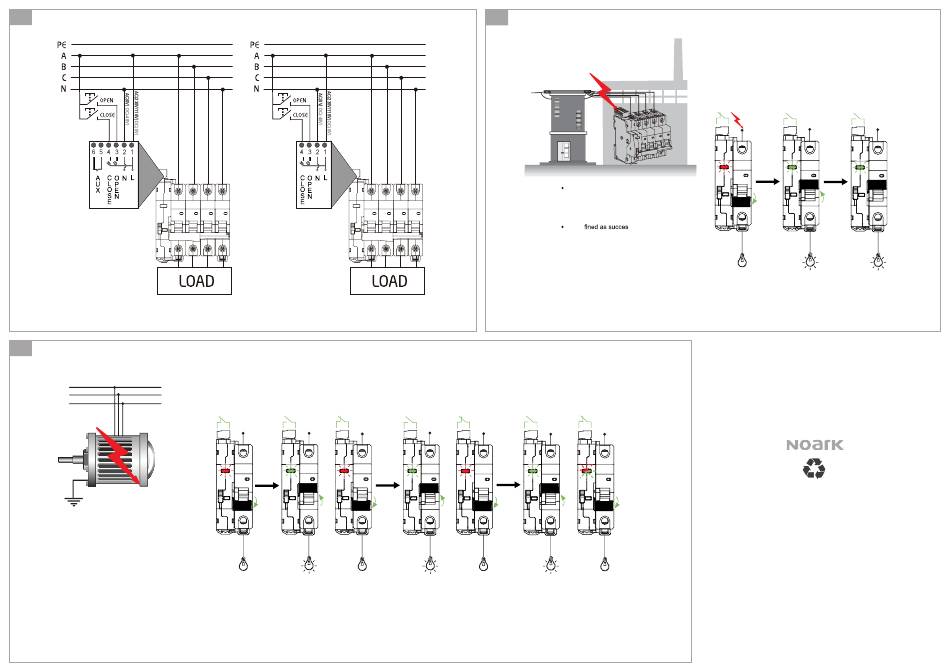

Under "Auto" mode, and for continuous electrical fault,
It will auto reclose after 10s time delay, and failed;
It will auto reclose again after 60s time delay, and failed;
It will auto reclose again after 300s time delay, and failed;
It will switch to "Lock" status, and no more auto reclose
(Meanwhile, the terminal of remote On/Off functions)
...
10s 60s
H
Under "Auto" mode, and for instantaneous
electrical fault, our recloser will auto
reclose after 10s of breaker trips.
It is de
handle holds more than 15 minutes.
After successfully reclosed, previous
reclose counting will be cleared and
renewed.
Lock Status
... ...
300s
10s
sfully reclosed if
Printed with environment-friendly paper
Copyright Noark. All Right Reserved
Manufacturer: NOARK Electrics (Shanghai) Co., Ltd.
3857 Sixian Road, Songjiang District, Shanghai
Importer: NOARK Electric Europe s.r.o.
Sezemická 2757/2, 193 00 Praha 9, Czech Republic
www.noark-electric.eu
ZMOD31202310EU
15min
