Optotronix Aurora LCU ONE
1-Kanal-Lichtsteuermodul mit 5 Lichtfunktionen.
Akkutypen
Die Aurora LCU ONE kann mit bis zu 13V (3S LiPo)
betrieben werden. Dadurch ist auch der Anschluss von
LED-Beleuchtungen möglich, die für 12V ausgelegt sind
(LED-Bänder, HV-LEDs, etc...).
Einstellungen am Sender
Die Schaltschwellen sind gleichmäßig über den Bereich
1000 bis 2000μs verteilt.
1100μs -> Licht aus ca. -80 %
1260μs -> Doppelblinken (. .
1420μs -> dreifaches Blitzen (...
1580μs -> dreifaches Blitzen mit Nachblitz (... - ) +16%
1740μs -> Strobe mit Pause (.....
1900μs -> Licht dauerhaft an ca. +80%
Lieferumfang
Art.Nr. OPT2003:
1x Optotronix Aurora LCU ONE, Anleitung
Art.Nr. OPT2004:
1x Optotronix Aurora LCU ONE Platine, Schrumpf-
schlauch, GFK-Plättchen, Aufkleber, Anleitung

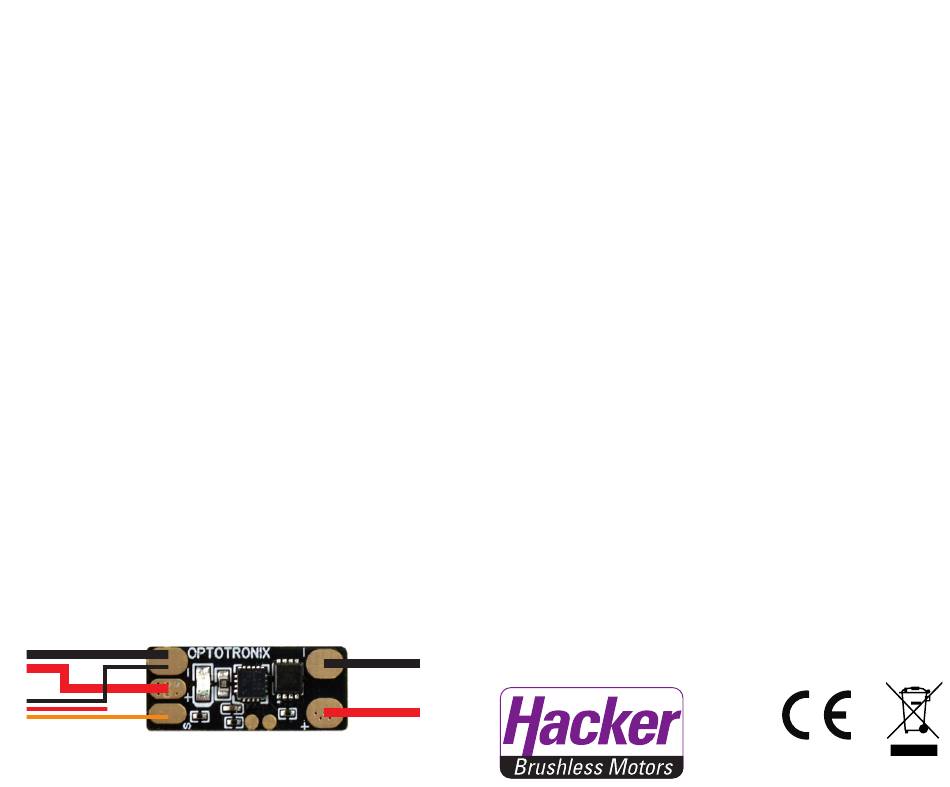

Anschlussschema / Wiring diagram
5-13V
-
+
-
+
s
Empfänger
(Achtung: + Leitung zum Empfänger nicht verbinden!)
Receiver
(Caution: Do not connect receiver + !)
) ca. -48%
) ca. -16%
) ca. +48%
LED
-
+
Optotronix Aurora LCU ONE
1-channel light control module with 5 light functions.
Battery types
The Aurora LCU ONE can be operated with up to 13V
(3S LiPo). This also allows the connection of LED lighting
designed for 12V (LED strips, HV LEDs, etc...).
The following values must be set on the transmitter
The switching thresholds are evenly distributed over the
range 1000 to 2000μs.
1100μs -> light off approx. -80 %
1260μs -> double flash (. . ) approx. -48%
1420μs -> triple flash (... ) approx. -16%
1580μs -> triple flash with afterflash (... - ) +16%
1740μs -> strobe with pause (..... ) approx. +48%
1900μs -> light permanently on approx. +80%
Scope of delivery
Art.Nr. OPT2003:
1x Optotronix Aurora LCU ONE, manual
Art.Nr. OPT2004:
1x Optotronix Aurora LCU ONE circuit PCB, heat-shrink
tubing, GRP plate, sticker, instructions
Kurzanleitung Aurora LCU ONE
Stand 06/2024
Art.Nr. 19871083
Made in Germany
