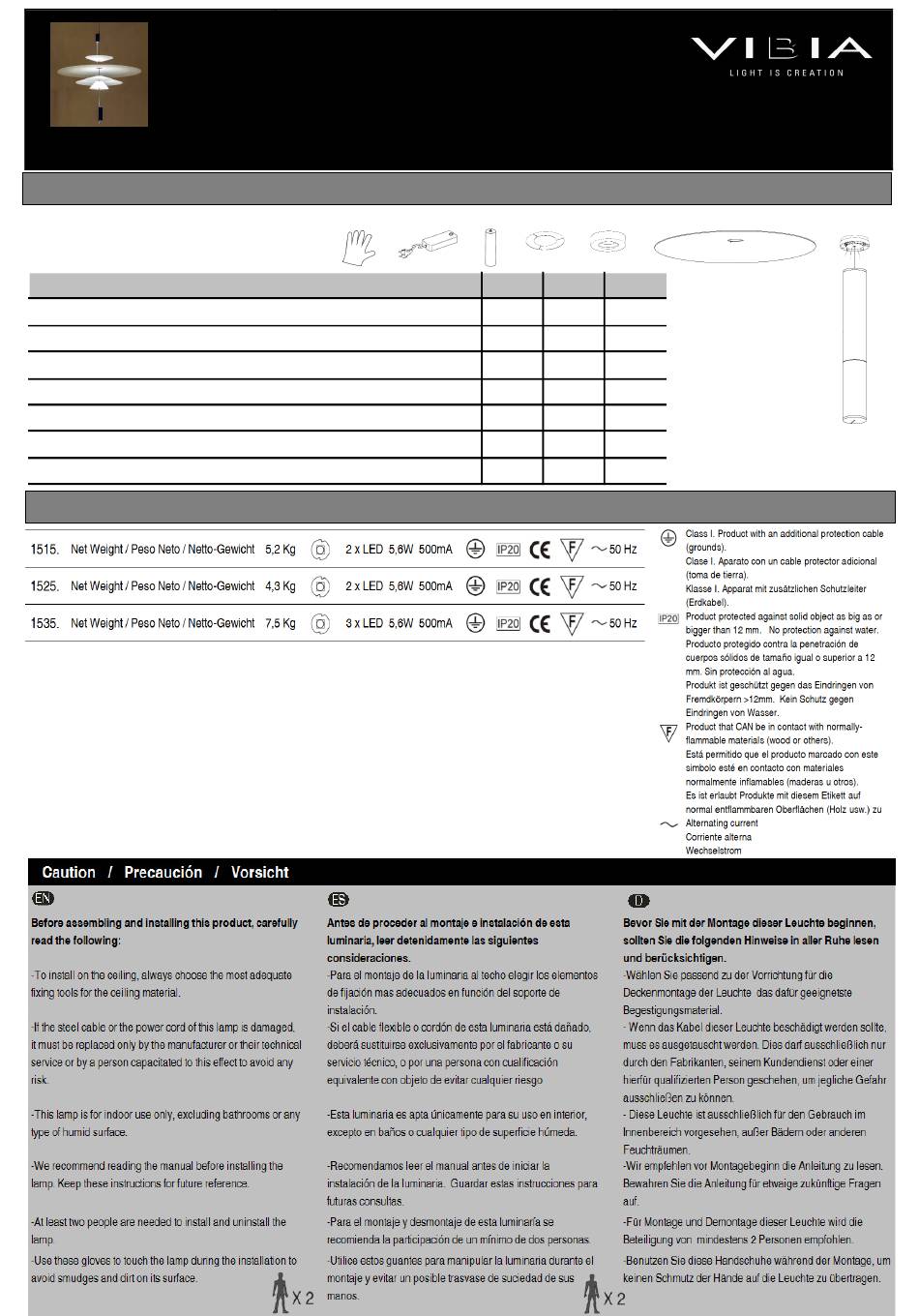

ASSEMBLY INSTRUCTIONS
SUPPLIED MATERIAL
Gloves / Guantes / Handschube
1
2
Regulator / Regulador / Dimmer
Counterweight / Contrapeso / Gegengewicht
3
Disco ni v elador / Di s co nivelador / Ausgleichsscheibe
4
Embellecedor / Embell e cedor / Blende
5
Pantallas / Pantallas / Schirme
6
7
Lighting fi x ture / Estructura l u minaria / Leuchten-Struktur
TECHNICAL SPECIFICATIONS
Flamingo
Design by Antoni Arola & Enric Rodríguez
INSTRUCCIONES DE MONTAJE
MATERIAL SUMINISTRADO
1.
2.
ESPECIFICACIONES TÉCNICAS
MONTAGEANLEITUNG
GELIEFERTES MATERIAL
3.
4.
5.
1515
1525
1535
1 un.
1 un.
1 un.
1 un.
1 un.
1 un.
1 un.
1 un.
1 un.
1 un.
1 un.
1 un.
1 un.
1 un.
1 un.
2 un.
2 un.
3 un.
1 un.
1 un.
1 un.
6.
7.
TECHNISCHE DATEN
Werbung
Verwandte Anleitungen für VIBIA Flamingo
Inhaltszusammenfassung für VIBIA Flamingo
- Seite 1 Flamingo Design by Antoni Arola & Enric Rodríguez ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE MONTAJE MONTAGEANLEITUNG SUPPLIED MATERIAL MATERIAL SUMINISTRADO GELIEFERTES MATERIAL 1515 1525 1535 1 un. 1 un. 1 un. Gloves / Guantes / Handschube 1 un. 1 un. 1 un.
- Seite 2 ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE MONTAJE MONTAGEANLEITUNG 1. Fix the box (A) to the ceiling with suitable screws and plugs (not supplied). 2. Adjust the height of the light fitting by pulling the steel cable out to the desired height. NOTE: To help you decide the height, the mark printed on the protective tube indicates the position of the bottom shade.
- Seite 3 ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE MONTAJE MONTAGEANLEITUNG 3. Fit the levelling disc (C) to the fixing points on the cable and adjust the height so that it is properly levelled with the mark printed on the protective tube. IMPORTANT: Fit the disk on the last fixing point on the cable.
- Seite 4 ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE MONTAJE MONTAGEANLEITUNG 4. To adjust levelling more precisely, the three suspension points (D) located in the ceiling rose can be tightened or loosened to raise or lower them 2 mm. from their position. 5. Remove the levelling disc (C). 4.
- Seite 5 ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE MONTAJE MONTAGEANLEITUNG 6. Remove the protection. 7. Fit the decorative cover (E) supplied, with the three pins (F) inserted into their housings. 6. Retirar los protectores. 7. Montar el embellecedor (E) suministrado, con las tres torretas (F) insertadas en su alojamiento.
- Seite 6 ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE MONTAJE MONTAGEANLEITUNG 8. Fit the shades (G) to the fixing points on the cable. If you need to make a final adjustment to the levelling of the shades, follow the steps described in point 4. 9. Fit the shades for each reference as shown in the drawing.
- Seite 7 ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE MONTAJE MONTAGEANLEITUNG 10. Fit the counterweight by inserting the steel cable and letting it hang suspended 2 cm. from the ground. 11. Connect the cable to the regulator and then plug in the power. Montar contrapeso introduciendo el cable de acero y dejarlo que cuelgue suspendido a 2 cm.
