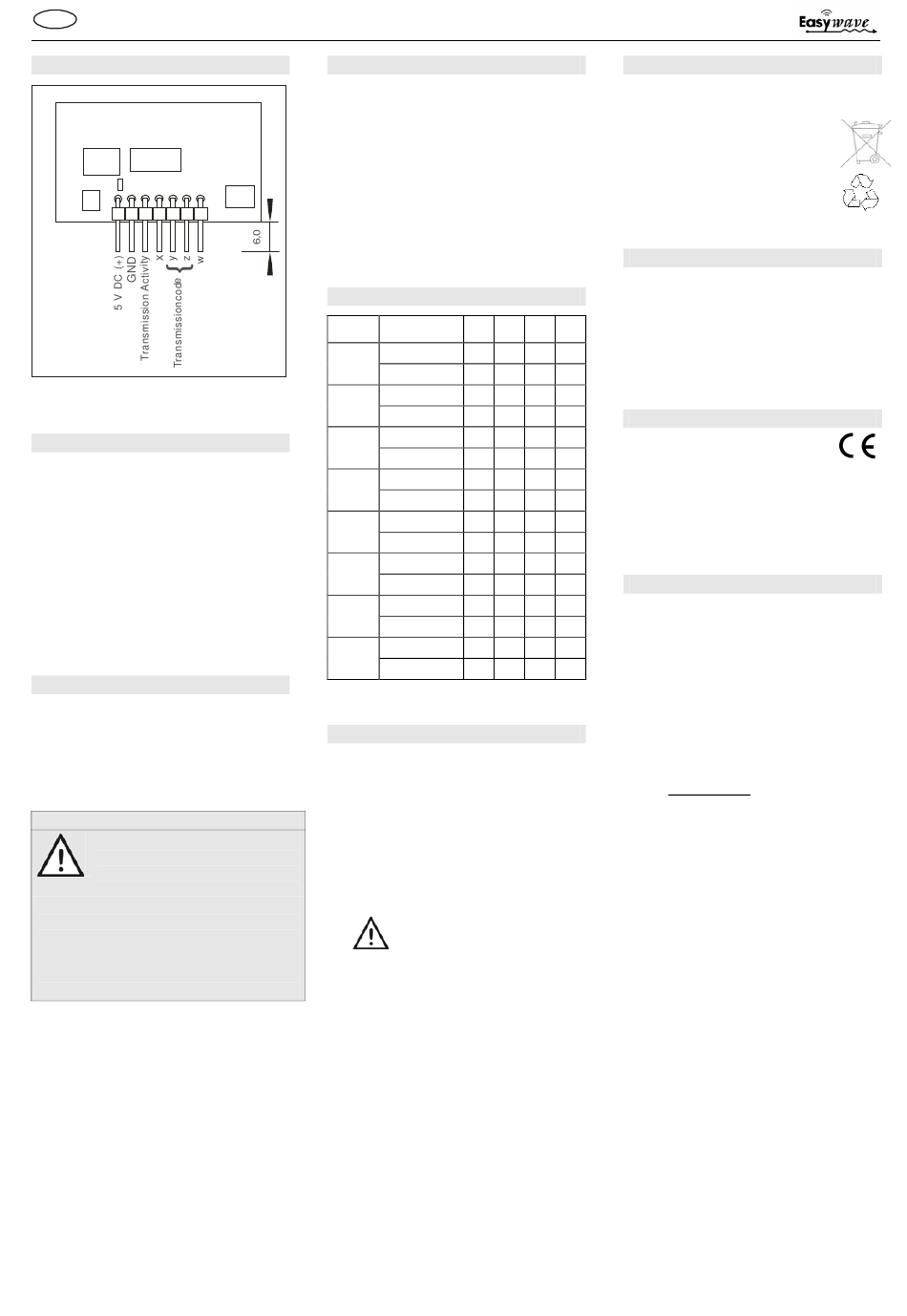

GB
Transmitter Module RTM08
Model
1 2 3 4 5 6 7
Grid:
2.54 mm
RTM08-5001E
Technical Details
Frequency: 868.30 MHz MHz
Modulation: FSK
Power supply: 5 V DC
Standby current: max. 1,5 mA
Transmitting
current: max. 13 mA
Transmission
range: approx. 100 m at optimal
free field conditions
Operating
temperature: -20 °C to +60 °C
Dimension: 40 x 22 x 5,8 mm
Intended Use
The transmitter module may only be used
to operate radio controls.
The manufacturer does not assume any
liability for damage caused as a result of
improper or non-intended use!
Safety Advice
Before connecting and operating
the transmitter module, carefully
read through the operating in-
structions!
Note also the operating instructions of the
radio control(s)!
Have faulty transmitter modules checked by
the manufacturer!
Do not make any unauthorized alterations or
modifications to the transmitter module!
Function
The Transmitter Module RTM08 is a
device designed for transmitting a
maximum of 16 different digital states. It is
permanently under voltage.
The integrated micro controller carries out
all necessary important functions for the
transmission process. The maximal
transmission time is 36 seconds.
In case PIN 3 receives a high a radiogram
according to the coding at PIN 4-7 is
transmitted.
Coding
Group
1
868.30 MHz
2
3
4
5
6
7
8
Start-Up
1. Connect the module as follows:
• Power Supply:
PIN1:
PIN2:
• Kanäle:
PIN4-7: transmission code
PIN 3:
2. Register the transmission code with
the radio control. Please read the op-
erating instructions supplied with the
radio controls.
Transmission
x y z
code
A 0 0 0
B 0 0 0
A 0 0 1
B 0 0 1
A 0 1 0
B 0 1 0
A 0 1 1
B 0 1 1
A 1 0 0
B 1 0 0
A 1 0 1
B 1 0 1
A 1 1 0
B 1 1 0
A 1 1 1
B 1 1 1
0 = GND, 1 = nc
5 V DC
GND
(see coding)
(High) transmission activity
Activate the transmission
activity (PIN3) only after
setting the codings x, y, z, w
(PIN4 to PIN7).
Disposal
Waste electrical products should not be
disposed of with household waste!
Dispose of the waste product via a
collection point for electronic scrap
or via your specialist dealer.
Put the packaging material into the
recycling bins for cardboard, paper
and plastics.
Warranty
Within the statutory warranty period we
undertake to rectify free of charge by
repair or replacement any product defects
arising from material or production faults.
w
Any non-authorized alterations or modifi-
0 cations to the product shall render this
warranty null and void.
1
0
Conformity
1
0 This product complies with the
essential requirements of the
1
R&TTE directive 1999/5/EG.
0
For use in: EU/CH/FL/IS/N
1
The Declaration of Conformity can be
acquired from the supplier referred to in
0
the delivery documents.
1
0
Customer Service
1
If, despite correct handling, faults or mal-
0
functions occur or if the product was dam-
1
aged, please contact the company at the
0
address below:
1
ELDAT GmbH
Im Gewerbepark 14
15711 Zeesen/Deutschland
Telefon: + 49 (0) 33 75 / 90 37-0
Telefax: + 49 (0) 33 75 / 90 37-90
Internet: www.eldat.de
E-Mail: info@eldat.de
