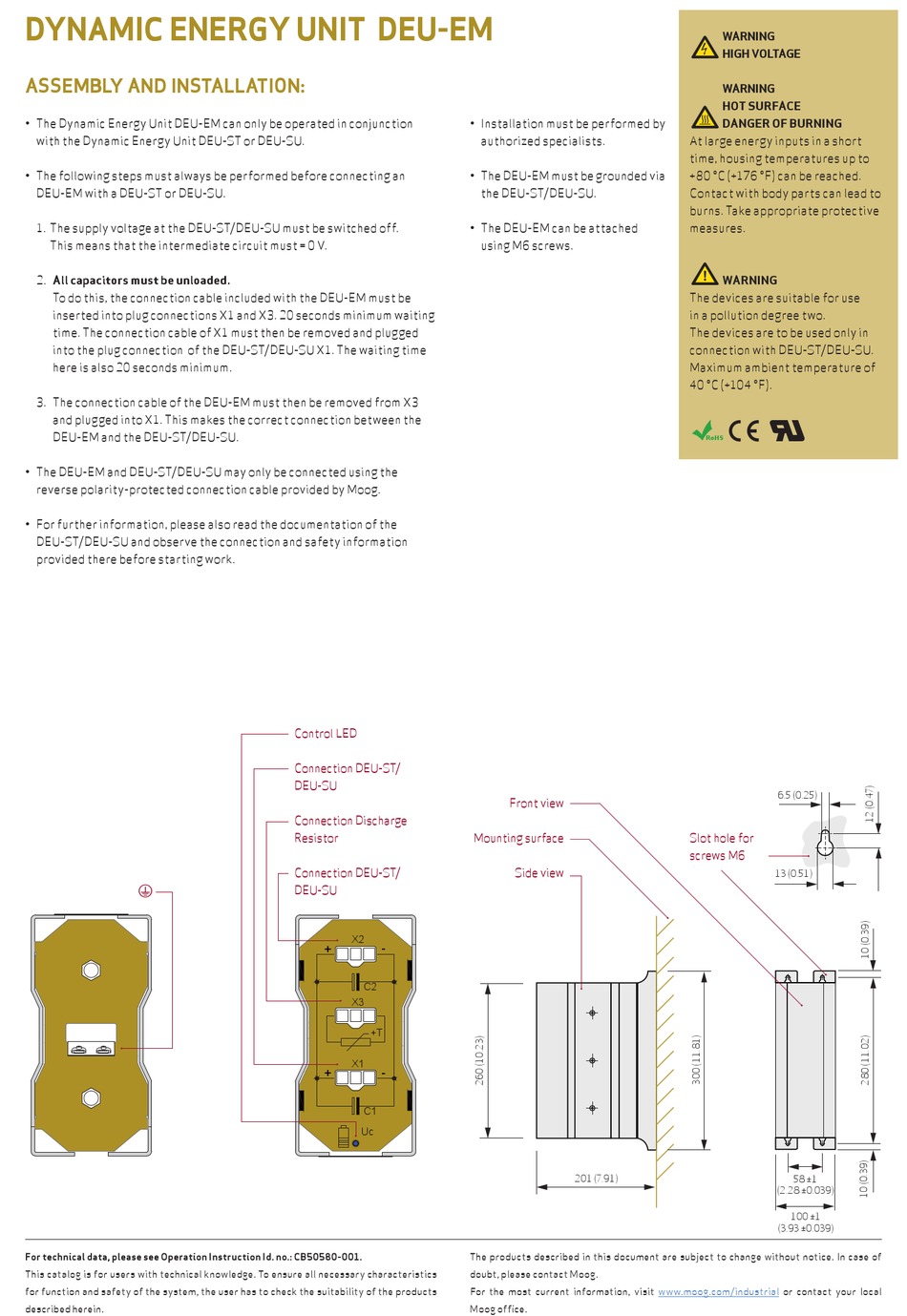

Dynamic EnErgy Unit DEU-Em
assEmbly anD installation:
• The Dynamic Energy Unit DEU-EM can only be operated in conjunction
with the Dynamic Energy Unit DEU-ST or DEU-SU.
• The following steps must always be performed before connecting an
DEU-EM with a DEU-ST or DEU-SU.
1. The supply voltage at the DEU-ST/DEU-SU must be switched off.
This means that the intermediate circuit must = 0 V.
2. all capacitors must be unloaded.
To do this, the connection cable included with the DEU-EM must be
inserted into plug connections X1 and X3. 20 seconds minimum waiting
time. The connection cable of X1 must then be removed and plugged
into the plug connection of the DEU-ST/DEU-SU X1. The waiting time
here is also 20 seconds minimum.
3. The connection cable of the DEU-EM must then be removed from X3
and plugged into X1. This makes the correct connection between the
DEU-EM and the DEU-ST/DEU-SU.
• The DEU-EM and DEU-ST/DEU-SU may only be connected using the
reverse polarity-protected connection cable provided by Moog.
• For further information, please also read the documentation of the
DEU-ST/DEU-SU and observe the connection and safety information
provided there before starting work.
y
For technical data, please see operation instruction id. no.: cb50580-001.
This catalog is for users with technical knowledge. To ensure all necessary characteristics
for function and safety of the system, the user has to check the suitability of the products
described herein.
Control LED
Connection DEU-ST/
DEU-SU
Connection Discharge
Resistor
Connection DEU-ST/
DEU-SU
X2
+
-
C2
+T
X3
-DC
1
2
+T
X1
X1
+
+
-
-
C1
C1
Uc
Uc
• Installation must be performed by
authorized specialists.
• The DEU-EM must be grounded via
the DEU-ST/DEU-SU.
• The DEU-EM can be attached
using M6 screws.
Front view
Mounting surface
Side view
+DC
3
201 (7.91)
The products described in this document are subject to change without notice. In case of
doubt, please contact Moog.
For the most current information, visit
Moog office.
Warning
high VoltagE
Warning
RoHS
hot sUrFacE
DangEr oF bUrning
At large energy inputs in a short
RoHS
time, housing temperatures up to
+80 °C (+176 °F) can be reached.
Contact with body parts can lead to
burns. Take appropriate protective
measures.
RoHS
Warning
The devices are suitable for use
in a pollution degree two.
The devices are to be used only in
connection with DEU-ST/DEU-SU.
Maximum ambient temperature of
40 °C (+104 °F).
r
C
RoHS
6.5 (0.25)
Slot hole for
screws M6
13 (0.51)
-DC
X1
+
-
C1
Uc
58 ±1
(2.28 ±0.039)
100 ±1
(3.93 ±0.039)
www.moog.com/industrial
or contact your local
+T
+DC
1
2
3
