Mini Radio Solutions EXTENDER Kurzanleitung Seite 2

www.miniradiosolutions.com

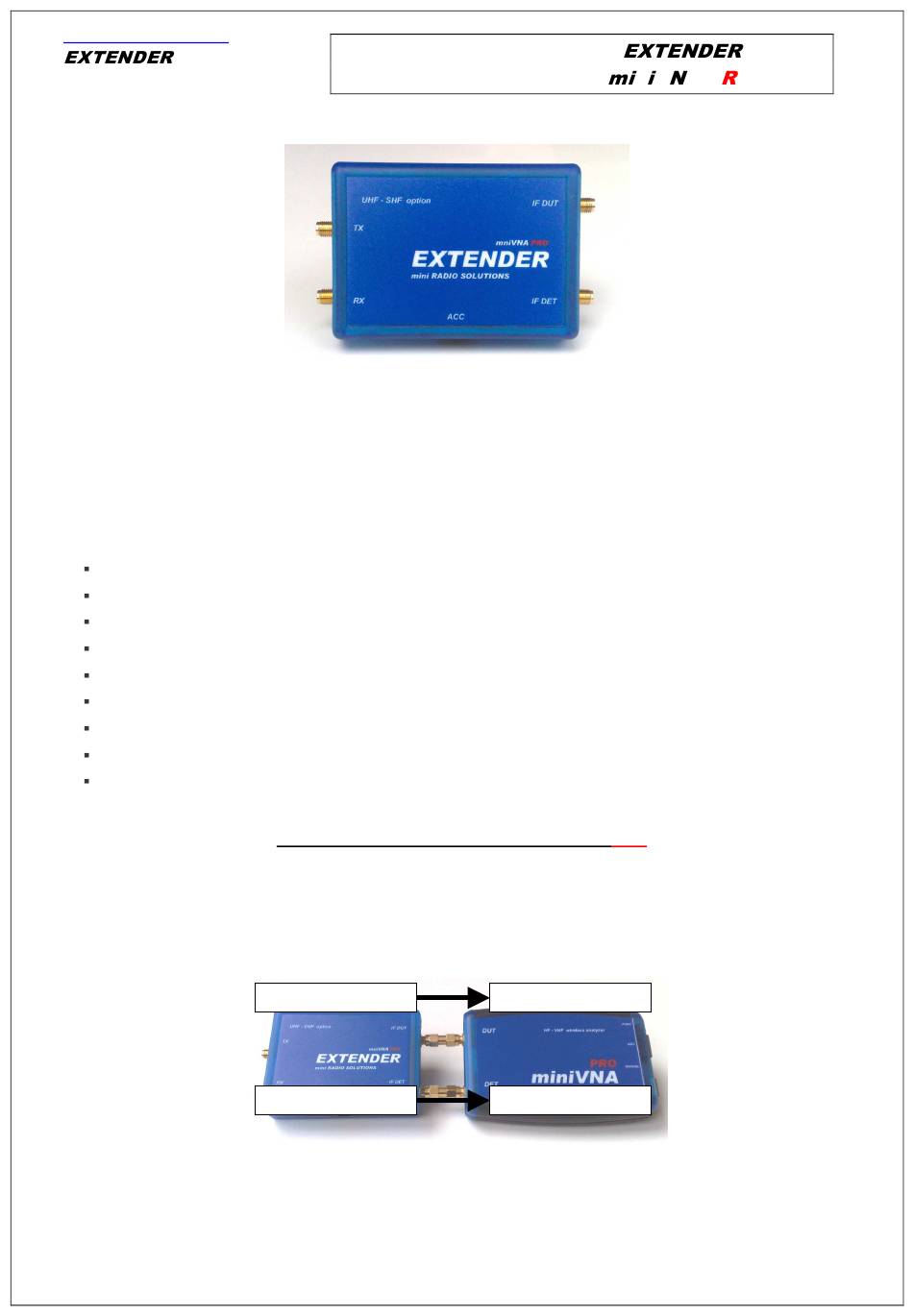

The EXTENDER is designed to be connected to
The unit is powered from the miniVNA PRO via the accessory port by a common CAT5 cable (supplied).
Now your system is able to work up to 1.5GHz.
You can do remote measurement via BLUETOOTH also, the system is completely remotable, supplied from the
internal battery of the miniVNA
Specifications:
Frequency range 200-1500 MHz
Dynamic range : 60 dB @ 1 Ghz
Operation mode : Reflection and transmission S11-S21
Harmonics: –35dbc
Directional coupler : internal
Calibration : OPEN/LOAD/SHORT
Connector type : SMA
Output Power –10 dbm (aprox.)
Power consumption : 150 mA
PEASE NOTE!
Before using this device, you need to update the firmware of your miniVNA PRO.
To do this connect on the website
(see 2.4)
Use of the EXTENDER:
1. Connect the EXTENDER to miniVNA
shown:
2. Connect the "ACC" port of the EXTENDER to the "ACC." port of the miniVNA PRO:
3. Download and install the latest version of the VNA sw / J in Java available via the website
www.miniradiosolutions.com
Reference manual for
UHF- SHF Option for
the miniVNA
PRO
www.miniradiosolutions.com
PRO by the connectors male - male SMA (supplied) as
EXTENDER IF DUT
EXTENDER IF DET
(SW Updates). Since version 2.8.2 you can use the Extender.
PRO using the two SMA connectors marked IF .
and download the updated firmware
miniVNA PRO DUT
miniVNA PRO DET

1
