4. ASSEMBLY OF THE ASSEMBLY STAND
First of all, make sure that there is enough
space around you during the assembly of the
stand so that you do not bump into anything. To
ensure that the assembly stand stands rmly,
it has very long legs that extend out very far.
Start the assembly by assembling the tripod
(A). To do this, open the lower red clamp on
the stand foot (1) and unscrew it by approx. 2
turns. Now take hold of two opposite stand feet
(2) with one hand each and slowly push them
outwards as far as possible. Be careful, all four
stand feet now spread apart at the same time,
like an umbrella. Place the stand foot upright.
Now the lower red clamp on the stand foot (1)
must be screwed so far that the clamp (1) can
still be pressed into its original position around
the tube with a little pressure.
Be very careful during this step, otherwise
there is a risk of bumping yourself or jamming
your ngers.
In the next step, open the upper red clip (3)
of the tripod (A) as already described above.
Now push the telescopic pole (B) at least
30 cm from the top into the corresponding pole
of the stand base and close the clamp again.
Check the tightness of the connection
carefully. If necessary, screw the clamp one
turn further together and check the tightness
of the connection again.
Guide the bicycle bracket (C) horizontally
through the clamping connection provided
for this purpose with the red hand wheel (4)
at the upper end of the telescopic pole (B)
straight until the notched marking of the
support arm becomes visible. Twist the support
arm so that the screw clamp (5) of the support
arm is on its upper side. Now tighten the bicyc-
le bracket (C) with the red hand wheel.

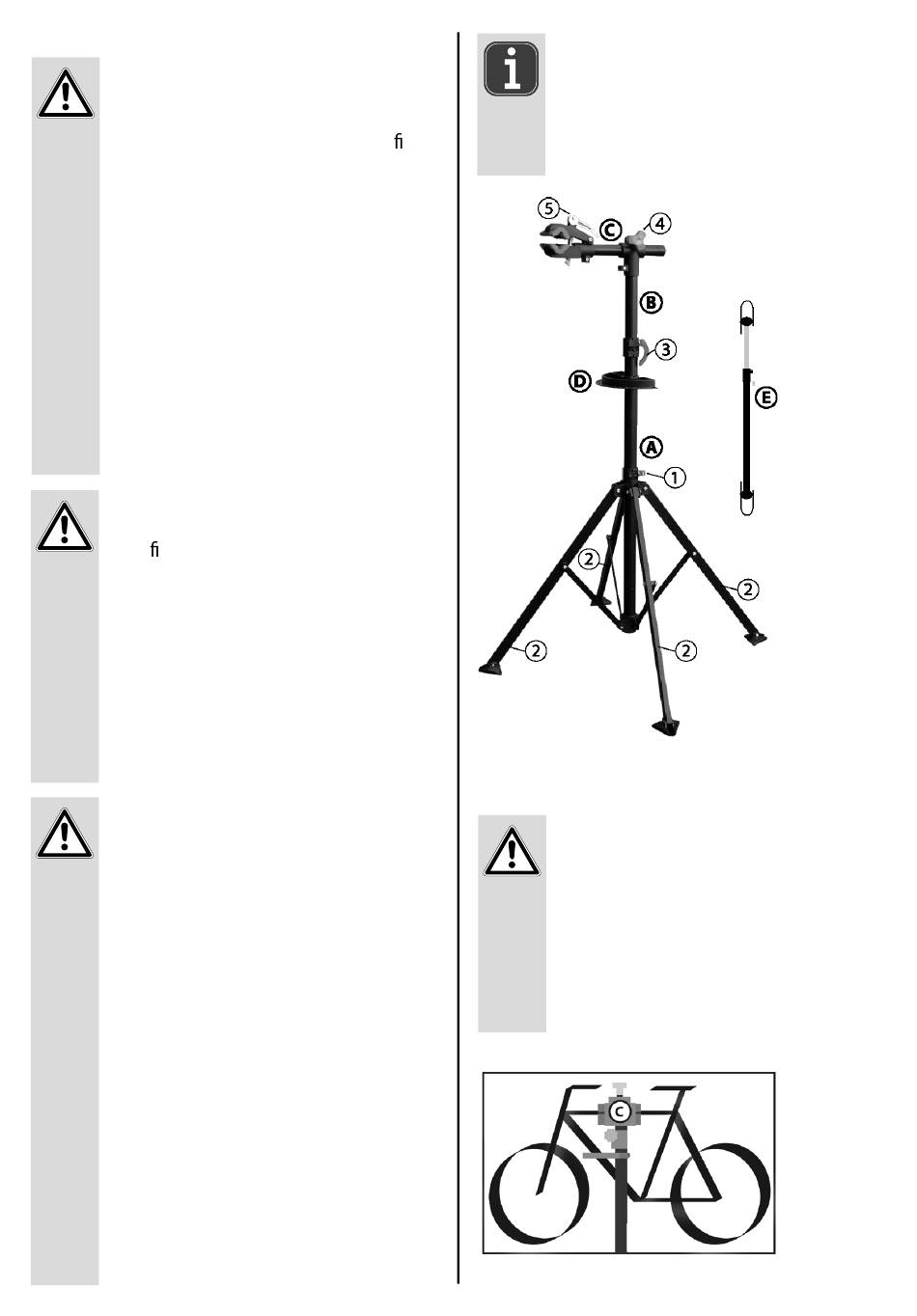

Finally, attach the magnetic tool tray (D)
to the vertical tube of the tripod (A). (see
picture 1) To do this, unscrew the two
hexagon socket screws of the holder of the
storage compartment with the enclosed
pin spanner and remove the holder. You are
free to choose the mounting height of the
compartment. Place the round recess of the
shelf against the vertical bar of the stand foot
(1). Replace the bracket and tighten the screws
securely.
6
To achieve an even better stability of the
assembly stand, you can screw it directly to the
ground.
The corresponding holes in the stand feet are
provided at the factory. The assembly material
is not included in the scope of delivery.
Picture 1
5. ATTACHING THE BIKE TO THE MOUNTING STAND
Before mounting the bike, check the kickstand
for damage and that all screws are tight. The
telescopic tube must be inserted deep enough
into the vertical tube of the stand base. There
is a corresponding circumferential marking on
the telescopic tube. The support arm must be
inserted deep enough into the telescopic tube;
there is also a corresponding marking on the
support arm.
Picture 2
