Safety Information - Maxwell Digital Multimeters 25601 Gebrauchsanleitung

s i
EN
afety nforMation
This device is a portable digital clamp meter with
a 3 ½ digit LCD display and insulation test function
(with a 500 V insulation test unit - not included).
Please follow the prescriptions for safety and
usage to ensure proper functioning and state of
the device.
Keep all safety standards when using the device:
• Protect yourself from the dangers of electricity
• Protect the device from improper usage.
• The compliance to the safety standards is only
guaranteed, when the measuring wires are intact.
If they are damaged, replace them to ones of the
same type immediately.
W
arninG
• Never exceed the given overload values in any
threshold while measuring.
• When connecting the device to the measured
circuit, do not touch the unused connectors.
• If you do not know the threshold of the measured
value, set the function switch to the highest
available one.
• Disconnect the device from the circuit before
switching functions.
• Be careful when measuring TVs and switching
circuits, the high amplitude voltage impulses on
the testing points can damage the device.
• Do not measure resistance in a circuit that is
under power.
• Be careful when measuring higher values than
60 V DC or 30 V AC. Keep your fingers on the
designated area and do not touch the metal
parts.
Warning symbols:
• Danger/Important information
• Compliance symbol (EU standards)
• "COM" Ground (GND)
M
aintenance
• Always disconnect the device from the measured
circuit before opening the cover of the device.
• Stop using the device if you encounter any errors
or faulty behaviour by the device, have it repaired
by a professional.
• Never use the device if the battery holder lid
2
is not in its proper place, or is insufficiently
fastened.
• Do not clean the device with rough materials
or solvents. Use a wet cloth and soft detergents
only.
f
Unctions
• AC current measuring - Insulation test (optional)
• DC and AC voltage measurement
• Resistance measurement
• Continuity test

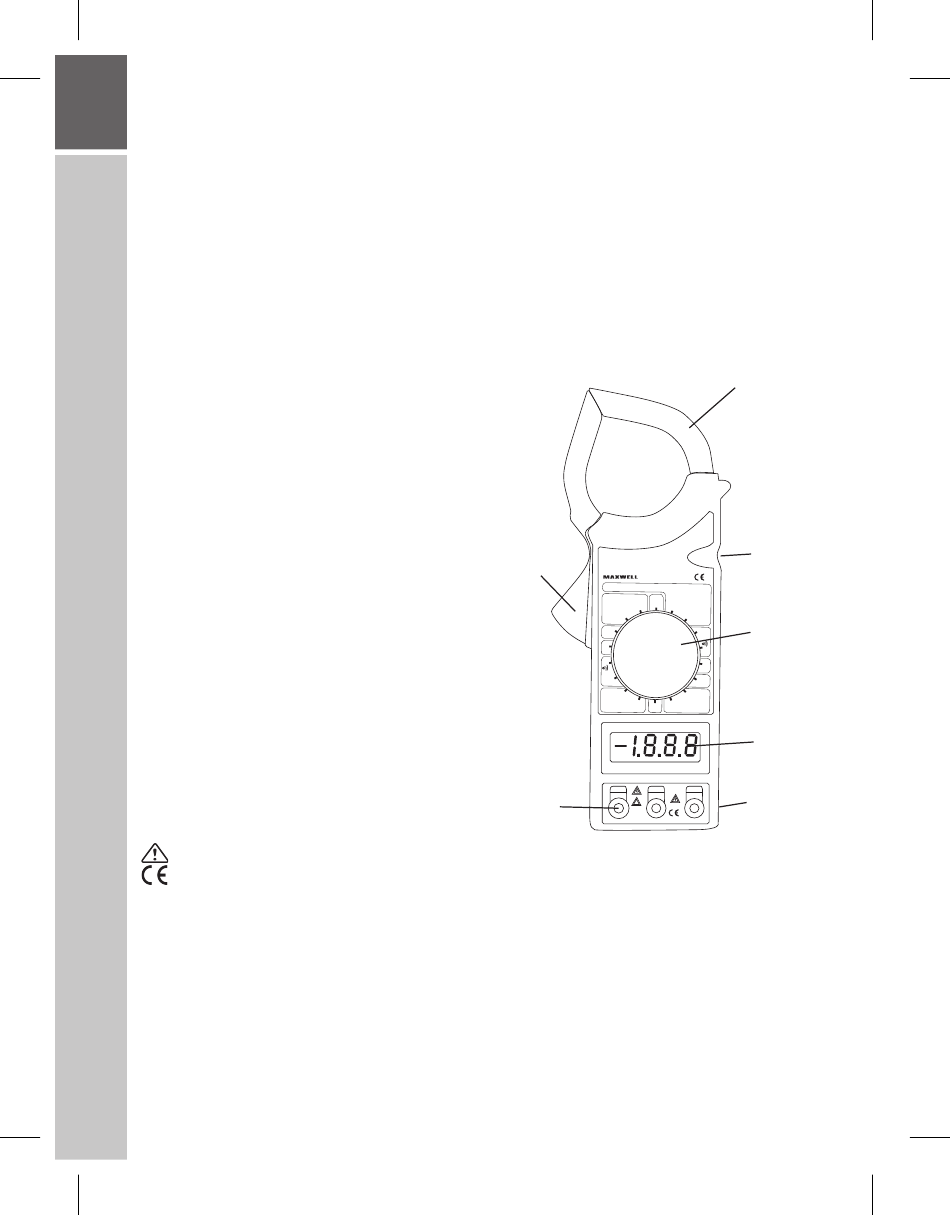

c
ontrols
2
DIGITAL CLAMP METER
MC 25601
WITH 261 OPTION(500V) INSULATION TESTER
ACA
OFF
1000
200
ACV
750
1000
DCV
200
Ω
20K
20MΩ
2000MΩ
OFF
EXTERNAL UNIT
6
V Ω COM
!
750V~
1000V— ...
MAX
1. Clamps
2. Trigger button
3. 'HOLD' button By pressing this button the
device holds the measured value on the
screen until you press the button again.
(Works with every function)
4. Function and
This swtich enables you to select the proper
function and threshold. You can turn the device
off by setting it to the OFF position.
5. LCD display
6. Inward connectors The device has 3 inward
1
3
HOLD
EXTERNAL UNIT
2000MΩ
20MΩ 4
20K
Ω
200
1000
DCV
ACV
750
200
1000
ACA
5
7
EXT
threshold switch
