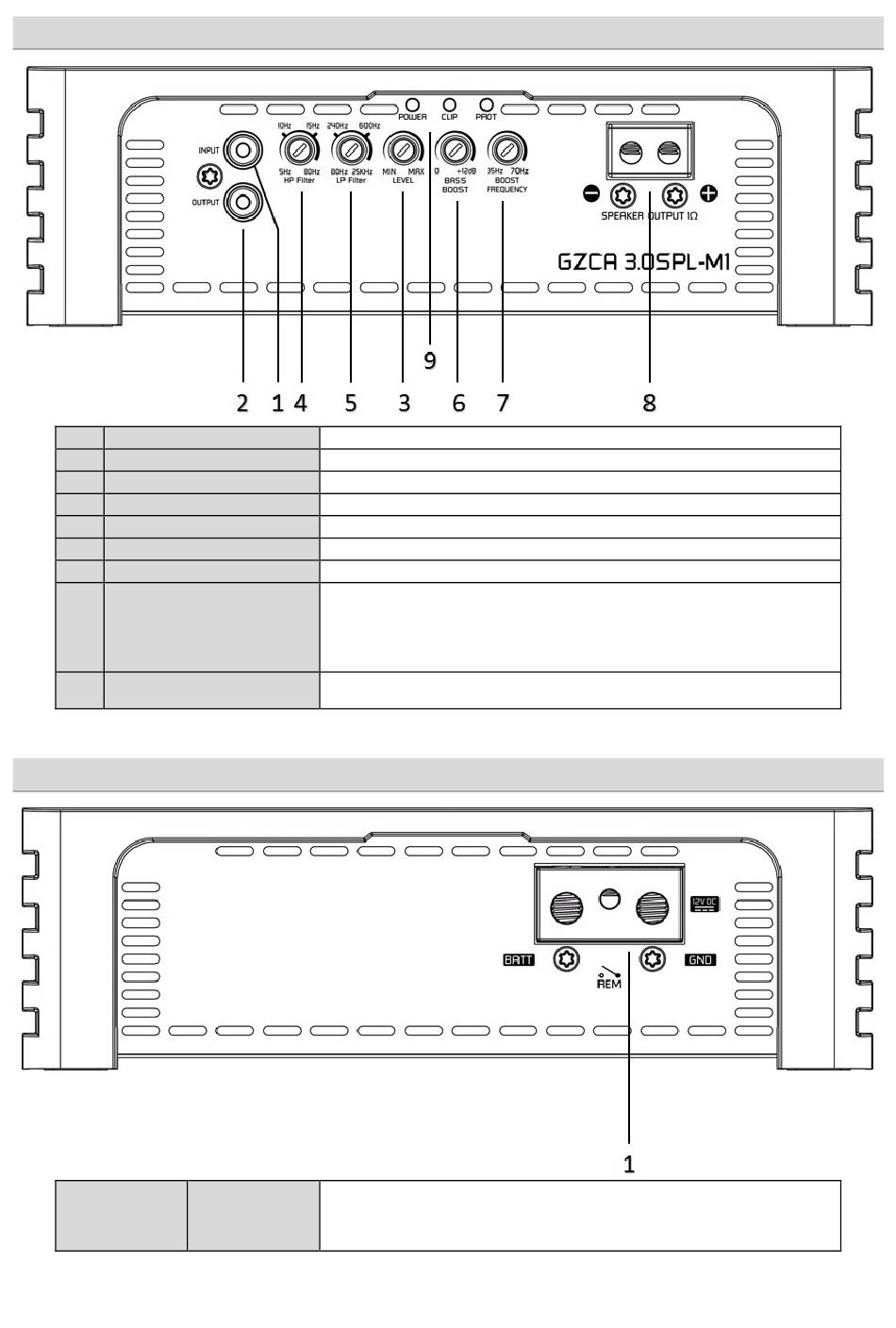

Controls and features – GZCA 3.0SPL-M1/M2
1
RCA signal input
2
RCA signal output
3
Input sensitivity (LEVEL)
4
High pass filter
5
Low pass filter
6
Bass boost level
7
Bass boost frequency
8
Speaker wire terminal
Power status, clipping and
9
protection LED
* to avoid any kind of malfunction, it is strongly recommended to use high quality RCA wires!
1
wer terminal
Po
To connect the RCA signal wire* from the audio source / head unit
To connect another amplifier (using an RCA cable)
To adjust the input sensitivity
To adjust the high pass filter´s crossover point (5 Hz - 80 Hz)
To adjust the low pass filter´s crossover point (80 Hz - 25 kHz)
To adjust the bass boost level (0 to12 dB)
To adjust the bass boost´s center frequency (35 – 70 Hz)
To be connected to one or more speakers
(pay attention to the minimum load mentioned for your amplifier model)
GZCA 3.0SPL-M1
GZCA 3.0SPL-M2
Indicating the power and clipping status and activated protection mode
Connections – GZCA 3.0SPL-M1/M2
BAT
To be connected to the positive terminal of the battery (+12 V)
REM
To be connected to the remote output of the head unit
GND
To be connected to the ground of the vehicle
Minimum load at terminal 1 ohm
Minimum load at terminal 2 ohm
