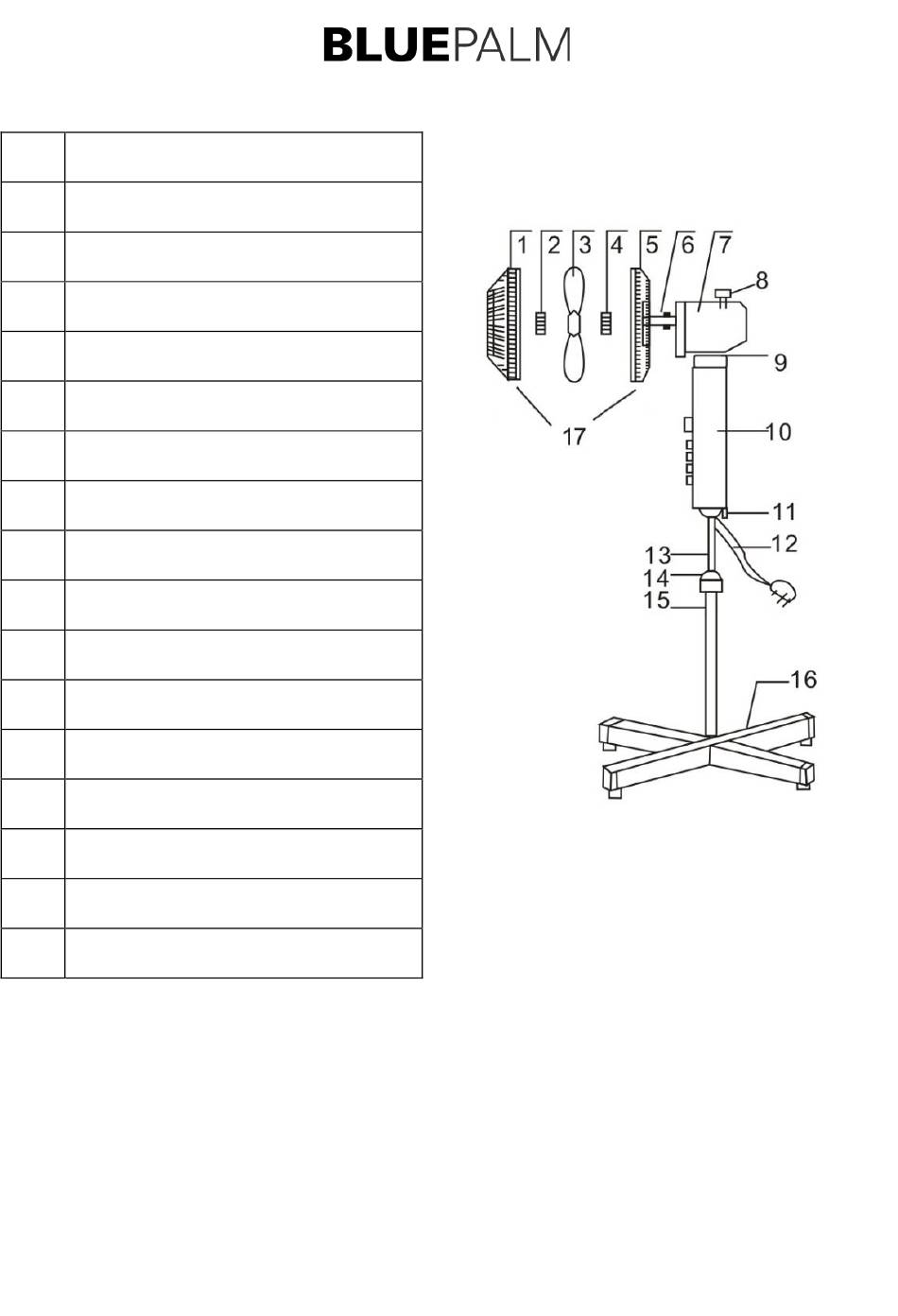

ASSEMBLY INSTRUCTIONS
1 Front protective grille
2 Rotor blade screw
3 Fan blades
4 Threaded nut
5 Rear protective grille
6 Motor shaft
7 Motor housing
8 Oscillation button
9 Locking screw
10 Control element
11 Locking screw
12 Electric cable
13 Inner telescopic rod
14 Height adjustment ring
15 Outer telescopic rod
16 Stand
17 Holes + fixing screw
1. Mount the two feet (16) crosswise.
2. Place the outer telescopic pole (15) on the stand legs and mount it firmly with
the four screws supplied and a screwdriver.
3. Remove the height adjustment ring (14) from the outer telescopic rod by turning
it anticlockwise.
4. Slide the stand cover over the telescopic rod (15) with the openings pointing
downwards until it is down over the already tightened screws.
