Multitel MT 162 Betriebsanleitung Seite 172

1 2
BLINKER BEACON
FUSE
A
FE4
+15a +15b
B U
2,5 mm² 2,5 mm²
3.1:F / +15a
5A
B
C
D
E
E5
BU
2,5 mm²
E5
1b.8:D /
1
YEGN
2,5 mm²
1
1a.9:E /
E20
YE
2,5 mm²
E20
/
F
3
B U
[1ELMER.1.1-C.19] DASHBOARD SIDE
REV. 0 23/11/2020 Dis. E.G. Contr. R.B.
REV. 0 13/09/2021 Dis. E.G. Ap. R.B.
4 5
STABILIZER LEG
SL
SIGNAL LIGHT PTO_SW
12V
L1
PTO SWITCH
BLINKER
PTO SWITCH
+ -
BEACON SWITCH
OUT
RD
(+)
1
E.MER.1.1.249R00

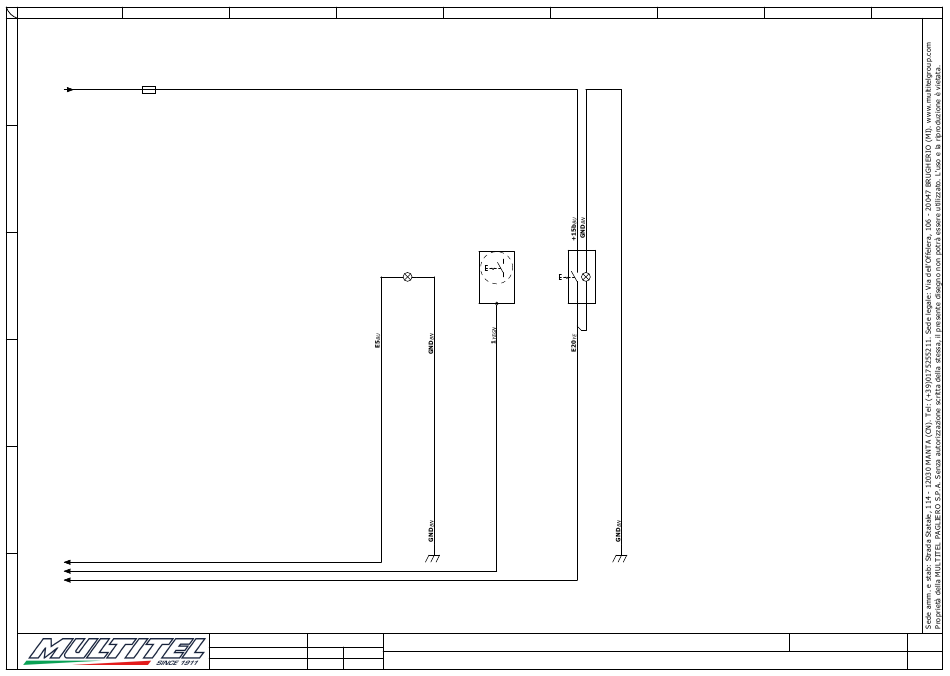

C.19_SWITCHES AND SIGNAL LIGHTS
6 7 8 9
MER. SPRINTER E6
P 2
NP 3
