Operating Instructions
SY-RS-201 Smart Wi-Fi Socket with 2 USB Charging Ports
Item No. 2208105
Intended Use
The product acts as a power socket and is equipped
with a push button that turns the power supply to
connected loads on and off. The product is equipped
with 2 USB-A charging ports.
An accompanying app controls the product
(remote on/off, countdown, timer, and voice control).
Warning labels in different languages are included
in the package. Stick the language label in your
language over or next to the language label on the
product.
The product is intended only for the connection to a
standard power socket with earth contact. Refer to
the technical data section to learn more about the
maximum permissible loads.
The product is only designed for indoor use. Keep
away from water and high-humidity sources and the
areas where these conditions occur (e.g. bathroom).
For safety and approval purposes, you must not
rebuild and/or modify this product. If you use the
product for purposes other than those described
above, the product may be damaged. In addition,
improper use can result in short circuits, fires, electric
shocks or other hazards. Read the instructions
carefully and store them in a safe place. Make this
product available to third parties only together with
its operating instructions.
This product complies with the statutory national and
European requirements. All company names and
product names are trademarks of their respective
owners. All rights reserved.
Delivery Content
• Wi-Fi socket
• Warning labels
• Operating instructions
Up-to-Date Operating Instructions
Download the latest operating instructions at
www.conrad.com/downloads or scan the
shown. Follow the instructions on the website.
Explanation of Symbols
The symbol with the lightning in the
triangle is used if there is a risk to your
health, e.g. due to an electric shock.
The symbol with the exclamation
mark in the triangle is used to indicate
important information in
operating instructions. Always read this
information carefully.
The arrow symbol indicates special
information and advice on operation.
Safety Instructions
Read the operating instructions carefully and
especially observe the safety information. If
you do not follow the safety instructions and
information on proper handling in this manual,
we assume no liability for any resulting personal
injury or damage to property. Such cases will
invalidate the warranty/guarantee.
a) General
• The unauthorized conversion and/or modification
of the product is not allowed for safety and
approval reasons. Do not open/disassemble!
• The product is designed in accordance with
protection class I. Only a standard grounding
mains socket of the public supply grid (a wall
socket, for example) may be used as a power
source.
• The mains socket to which the product is
connected must be easily accessible.
• The product is not a toy and should be kept out
of the reach of children. Position the product so it
is out of the reach of children.
• The product is equipped with a child safety
lock. An integrated mechanism will release the
holes of the receptacle only, if the two prongs
of a power plug are inserted into the two holes
at once. Nevertheless, take special caution
when children are around. Children cannot
recognize the danger arising from the incorrect
use of electrical devices. There is a risk of a life-
threatening electric shock!
• Do not leave the packaging material lying around
carelessly as it may be a danger to children.
• Handle the product with care; it can be damaged
by impacts, blows or falls even from a low height.
• If you have any questions that are not answered
in this manual, please contact our technical
service or another specialist.
• The product is equipped with an enhanced
protection against accidental contact. An
integrated mechanism will release the holes of
the receptacle only, if the two prongs of a power
plug are inserted into the two holes at once.
• Take special caution when children are around.
Children cannot recognize the danger arising
from the incorrect use of electrical devices. There
is a risk of a life-threatening electric shock!
b) Connected Devices
• Also observe the safety and operating
instructions of any other devices which are
connected to the product.
c) Operating Location
• The product may only be used in dry interiors;
it must not get damp or wet! Never position the
product in direct vicinity of a bathtub, shower,
bathroom, swimming pool, or similar. Lethal
hazard due to electric shock!
• The product must not be exposed to extremes of
temperature, direct sunlight or strong vibrations.
Keep the product away from strong magnetic
fields generated by machines, electric motors or
loudspeakers.
• Do not operate the device in environments where
there are high levels of dust, flammable gases,
vapours or solvents. There is a danger of fire and
explosion!
• The device can warm up during use. Make sure
not to place it on sensitive surfaces.
• Do not use this product in hospitals or medical
institutions. Radio waves may interfere with
medical equipment. The same may also apply
to other areas.
QR code
d) Handling and Use
• Never plug in, unplug or operate the product
when your hands are damp or wet. There is a
risk of a life-threatening electric shock! The
same applies for the load that is plugged into the
socket of the product.
• Never connect the product to the power supply
immediately after it has been transferred
from a cold room into a warm one (e.g. during
transport). The condensation that forms might
these
destroy the device. Moreover, there is danger of
electric shock! Allow the product to reach room
temperature. Wait until the condensation has
evaporated. This might take several hours. Only
then the product may be plugged into the mains
socket and put into use.
• Never overload the product. Note the maximum
permissible connected load in the
"Technical Data".
• Do not connect in series! This can lead to an
overload of the product! There is a risk of fire!
• Do not operate while
connected loads, the product becomes warm,
which can lead to overheating and potentially a
fire if covered!
• Disconnect the product from the mains socket in
thunderstorms for reasons of safety.
• Voltage-free only if unplugged
• Do not use the product if it is damaged. There
is a risk of a life-threatening electric shock!
In this case, dispose of the product in an
environmentally correct manner. Safe operation
can no longer be assumed if:
- the product shows visible signs of damage
- the product does not work at all or works
poorly (leaking smoke or a smell of burning,
audible cracking noises, discolouration to the
product or the adjacent surfaces)
- the product was stored under unfavourable
conditions
- it was exposed to heavy loads during transport
• Always pull the product out of the mains socket
(e.g. wall socket) before cleaning it or when the
device will not be in use for a long time (e.g. for
storage).
• Use the product only in a temperate climate,
never in a tropical climate.

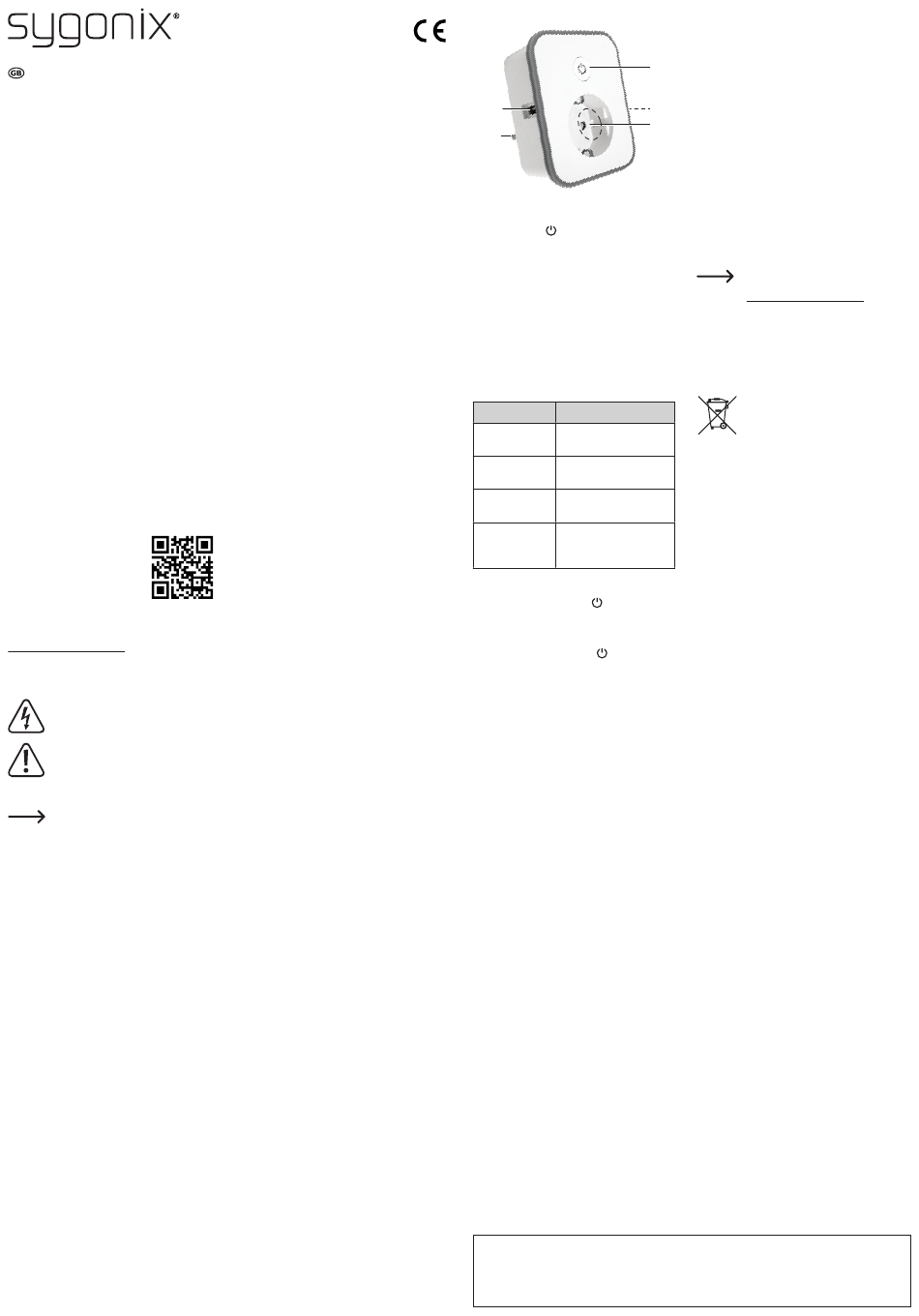

Control Elements
1
2
1 USB charging port
2 Plug
3 Power button
4 USB charging port
5 Socket
Connection
• Connect the plug (2) to a regular grounded mains
socket (wall socket).
• Plug a load into the socket (5) or a USB charging
port (1) (4).
Operation
a) LED Status Indicator
LED Status
Steady on (blue)
Off
Flashing fast blue
2x per second
Flashing slow
red-blue
1x every 3 s
b) Power On
• Press the power button
on. The status indicator light (3) will turn on to
indicate that the socket (5) is delivering power to
the connected load.
• Press the power button
power off. The status indicator (3) goes off and
the connected load will stop receiving power.
c) Socket Control
Refer to the app manual to learn more about socket
controls.
d) USB Charging Ports
The 2 USB charging ports can provide power to
devices connected via USB cable (e.g. charging of
mobile device), and do not serve as a data ports. See
section "Technical Data".
Refer to the app manual to learn more about port
controls.
Technical Data
Rated input ............................................................ 230 V/AC, 16 A, 50 Hz
chapter
Rated power .......................................................... max. 3680 W
Heat-resistance ..................................................... 750 °C
Plug/socket type .................................................... F
covered! At higher
Standby power consumption ................................. 0.5 W
Wi-Fi ...................................................................... IEEE 802.11 b/g/n, 2.4 GHz
Frequency range ................................................... 2412 - 2472 MHz
Transmission power............................................... max. 20 dBm
WLAN security ....................................................... WPA, WPA2, WPA/WPA2
WLAN range .......................................................... 15 m
USB-A ports ........................................................... max 5 V. 2.4 A (total)
Enhanced protection against accidental contact ... Yes
Protection class ..................................................... I
Device name .......................................................... SY-RS-201 Smart Wi-Fi Socket with 2 USB
App OS .................................................................. Android, iOS
App support ........................................................... Amazon Alexa, Google Home
Operating conditions .............................................. 0 to 40 ºC, 5 – 85 %
Storage conditions ................................................. -10 to +60 ºC, 5 – 85 %
Dimensions (W x H x D) ........................................ 77 x 94 x 75 mm
Weight ................................................................... 153 g
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com). All rights
including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in electronic data
processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited. This publication
represents the technical status at the time of printing.
Copyright 2023 by Conrad Electronic SE.
Maintenance and Cleaning
• The product does not require any maintenance.
You should not open/disassemble it. Repair
or maintenance work must be carried out by a
specialist.
3
• Before cleaning, turn the product off and
disconnect it from the power supply. Disconnect
connected loads.
4
• You can use a clean, dry, soft cloth for cleaning.
5
Dust can be very easily removed with a soft,
clean brush and a vacuum cleaner.
• Do not use aggressive chemical or scouring
cleaning agents, as this may lead to
discolouration or changes in the material on the
surface.
Declaration of Conformity (DOC)
/Status indicator light Conrad Electronic SE, Klaus-Conrad-Straße 1,
D-92240 Hirschau hereby declares that this product
conforms to the 2014/53/EU directive.
Select a language by clicking on a flag symbol
and enter the product order number in the search
box. You can then download the EU declaration of
conformity in PDF format.
Disposal
Description
Power on and connected
to WLAN
No power to connected loads/
not connected to WLAN
Device is ready to be paired
with application.
Device is ready to be paired
with application in AP mode
(3) to turn the plug
Distributors of electrical and electronic equipment
are legally obliged to provide free take-back of
waste. Conrad provides the following return options
free of charge (more details on our website):
again to turn the
• in our Conrad offices
• at the Conrad collection points
• at the collection points of public waste
management authorities or the collection points
set up by manufacturers or distributors within the
meaning of the ElektroG
End users are responsible for deleting personal data
from the WEEE to be disposed of.
It should be noted that different obligations about the
return or recycling of WEEE may apply in countries
outside of Germany.
RH (non-condensing)
RH (non-condensing)
Click on the following link to read the full
text of the EU declaration of conformity:
www.conrad.com/downloads
This symbol must appear on any
electrical and electronic equipment
placed on the EU market. This symbol
indicates that this device should not
be disposed of as unsorted municipal
waste at the end of its service life.
Owners of WEEE (Waste from Electrical
and Electronic Equipment) shall
dispose of it separately from unsorted
municipal waste. Spent batteries and
accumulators, which are not enclosed
by the WEEE, as well as lamps that can
be removed from the WEEE in a non-
destructive manner, must be removed
by end users from the WEEE in a non-
destructive manner before it is handed
over to a collection point.
*2208105_v3_0923_02_dh_mh_en
