Specifications
Power Source:
Power Consumption:
Aerial Impedance:
Receiving System:
Receiving Channels:
Intermediate Frequency:
Video/Audio Terminals:
AV1/21 pin IN
AV1/21 pin OUT
AV2 S-VHS IN
AV2, AV3 IN
AV2 OUT
Monitor OUT
High Voltage:
Picture Tube:
Audio Output:
internal Speaker
External Speaker
Headphones:
Speaker:
Accessories supplied:
Dimensions:
Net Weight:
220 V AC, 50 Hz
135 W (Max.)
SECAM -B,G
VHF E2 ~ E12
UHF E21 ~ E69
CATV S1 ~ $20
Video
38.9 MHz
Sound
33.4MHz
Colour
34.47 MHz (PAL)
34.5
MHz (SECAM)
34.65 MHz (SECAM)
Video 1 Vp-p 75 0.
Audio 0.67 Vrms, 10k Q
Video 1 Vp-p 75 0
Luminance 1 Vp-p 75 0
Chrominance 0.3 Vp-p 75 O
Video 1 Vp-p 75 0
Audio 0.67 Vrms, 10k 0
Video 1 Vp-p 75 0
Video 1 Vp-p'75
25.2 kV at zero beam current
24 inches (63 cm) measured
diagonally, 110° deflection
2 < 10 W (Music Power)
8 O Impedance
2 X 20 W (Music Power)
4 (0 Impedance
1: 8O Impedance
Il: 8. QO Impedance
Woofer 12 cm, 8 2 Round Type
Mid Range 9 x 5cm8 2) Oval Type
Remote Controller
UM4 Battery
Height:
549mm
Width:
594mm
Depth:
448.5mm
32 kg

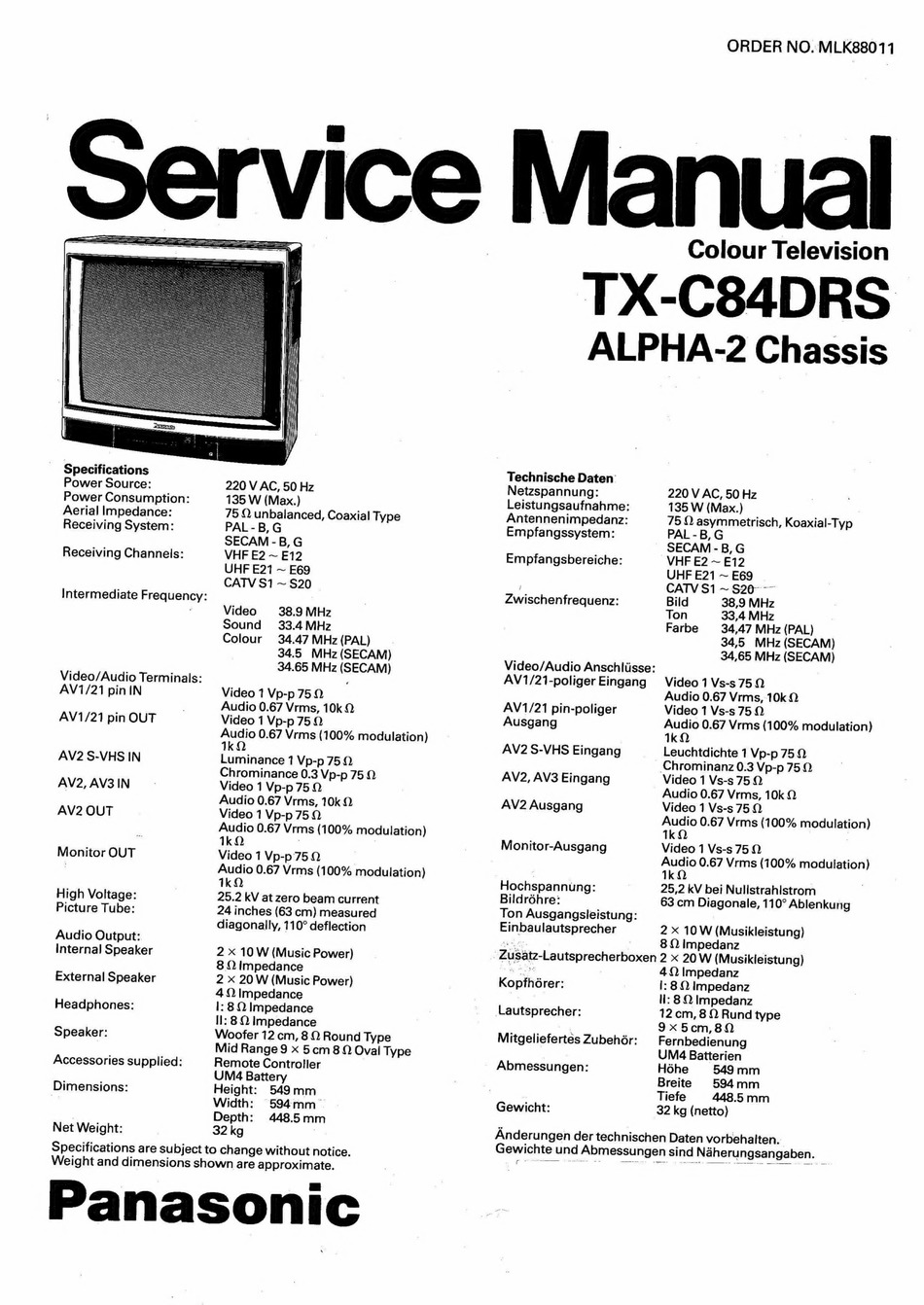

ORDER NO. MLK88011
Colour Television
Technische Daten
SECAM - B, G
Empfangsbereiche:
VHF E2 ~ E12
UHF E21 ~ E69
CATV S1 ~ S20--~
Ton
33,4 MHz
Farbe
34,47 MHz (PAL)
34,5
MHz (SECAM)
34,65 MHz (SECAM)
Video/Audio Anschitisse:
AV1/21-poliger Eingang
Video 1 Vs-s 75Q
Audio 0.67 Vrms, 10k 0
AV 1/21 pin-poliger
Video 1 Vs-s 750
Ausgang
Audio 0.67 Vrms (100% modulation)
1kQ
AV2 S-VHS Eingang
Leuchtdichte 1 Vp-p 75 0
Chrominanz 0.3 Vp-p 75 0
AV2, AV3 Eingang
Video 1 Vs-s 75 0
Audio 0.67 Vrms, 10k Q
AV2 Ausgang
Video 1 Vs-s 75 0
Audio 0.67 Vrms (100% modulation)
Tk
|
Monitor-Ausgang
Video 1 Vs-s 75 0
Audio 0.67 Vrms (100% modulation)
|
1kQ
Hochspannung:
25,2 kV bei Nullstrahlstrom
Bildrdhre:
63 cm Diagonale, 110° Ablenkung
Ton Ausgangsleistung:
Einbaulautsprecher
2 X 10 W (Musikleistung)
eed ae.
8 Q Impedanz
-Zusatz-Lautsprecherboxen 2 x 20 W (Musikleistung)
ty re
42 Impedanz
Kopfthorer:
I: 8.0 Impedanz
Hl: 8O Impedanz
Lautsprecher:
12 cm, 8 Q Rund type
;
9x 5cm,80
Mitgeliefertes Zubehér:
— Fernbed ienung
UM4 Batterien
Abmessungen:
Hohe
549 mm
Breite
594mm
Tiefe
448.5 mm
