uSer'S MAnuAL For
MASter SLAVe - Power Socket
General notes
read this user's manual completely and carefully before using. it is part of the product and contains important notes for
operating. keep this document for other users or for personal reference. Assembling and disassembling the housing is
only allowed to trained electricians.
Safety instructions

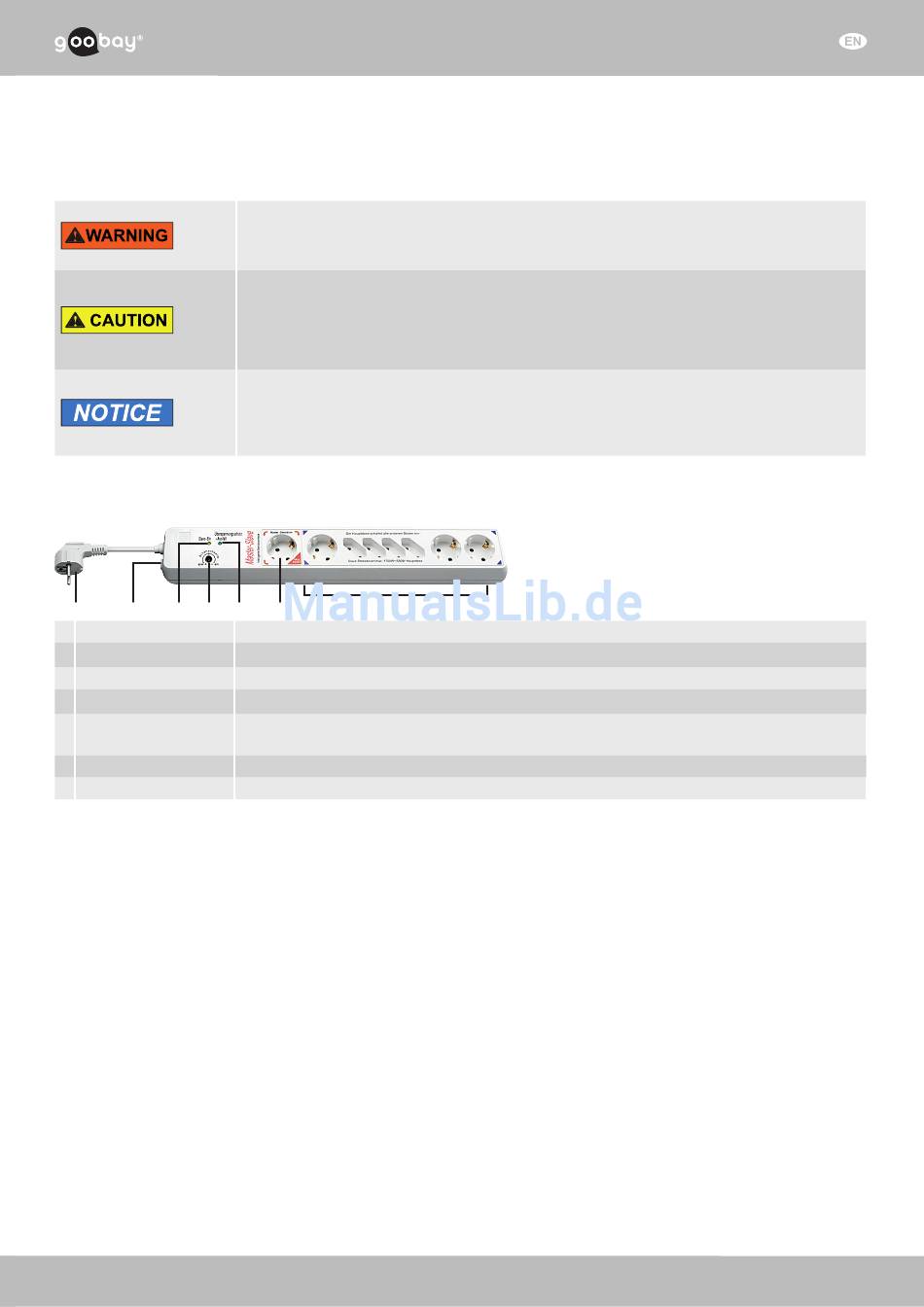

Description and Function
This product is a Master Slave power socket and is made for switching on or off Slave devices automatically by interrupting the
power supply, when the Master device is on or off.
1
2
3
4
1
Mains plug
2
RESET button
3
Slave-Ein-LED (Slave ON)
4
Schaltschwelle (Treshold)
Überspannungsschutz-LED
5
(Surge protection LED)
6
Master outlet
7
Slave outlets
Preparing
>> Check the packing content by comparing it to the scope of delivery regarding completeness and integrity.
>> C ompare the specifications of all used devices and products and make sure they are compatible to each other.
connecting
1. Plug the mains plug into a well reachable 230V~ 50Hz mains socket.
2. Connect the Master device to the Master outlet (max. 550W).
3. Connect the Slave devices to the Slave outlets (max. 1700W).
operating
Adjusting:
1.
Increase the treshold continuously with switched on Master device, until the connected Slave devices can be
switched on or off.
2.
Notice or note this controller position 1.
3.
Further increase the treshold continuously with switched off Master device , until the connected Slave
devices can be switched on or off.
4.
Notice or note this controller position 2.
5.
Now adjust the treshold centered between controller position 1 and 2. Alternatively set the treshold to central
position.
Checking:
1.
The surge protection must be on. The „Überspannungsschutz-LED" shines green.
2.
With switched on Slave devices the „Slave-Ein-LED" shines.
risk of life by electric shock
>> Avoid contacting mains voltages.
>> Voltage-free only with unplugged mains plug.
risk of injury by tripping and falling
>> Place, transport and install product, parts and acceories in a safe way.
risk of injury by cutting
>> Protect small parts and packaging materials against unintentionally use.
risk of self-intervention and misuse
>> Do not modify or alter either the product or the accessories!
>> Do not use in serie.
>> Only use the product uncovered in operation.
5
6
7
230V~ 50Hz
resets the power socket to factory setting.
Power is supplied for Slave devices.
determines from which slave load between 8-80W, the slave outlets are turned on when you turn on the master device.
shines green with active or not with inactive surge protection.
Connection for main device, which determines power supplying for slave devices.
are activated by switching on the main device according to the threshold setting.
1/2
