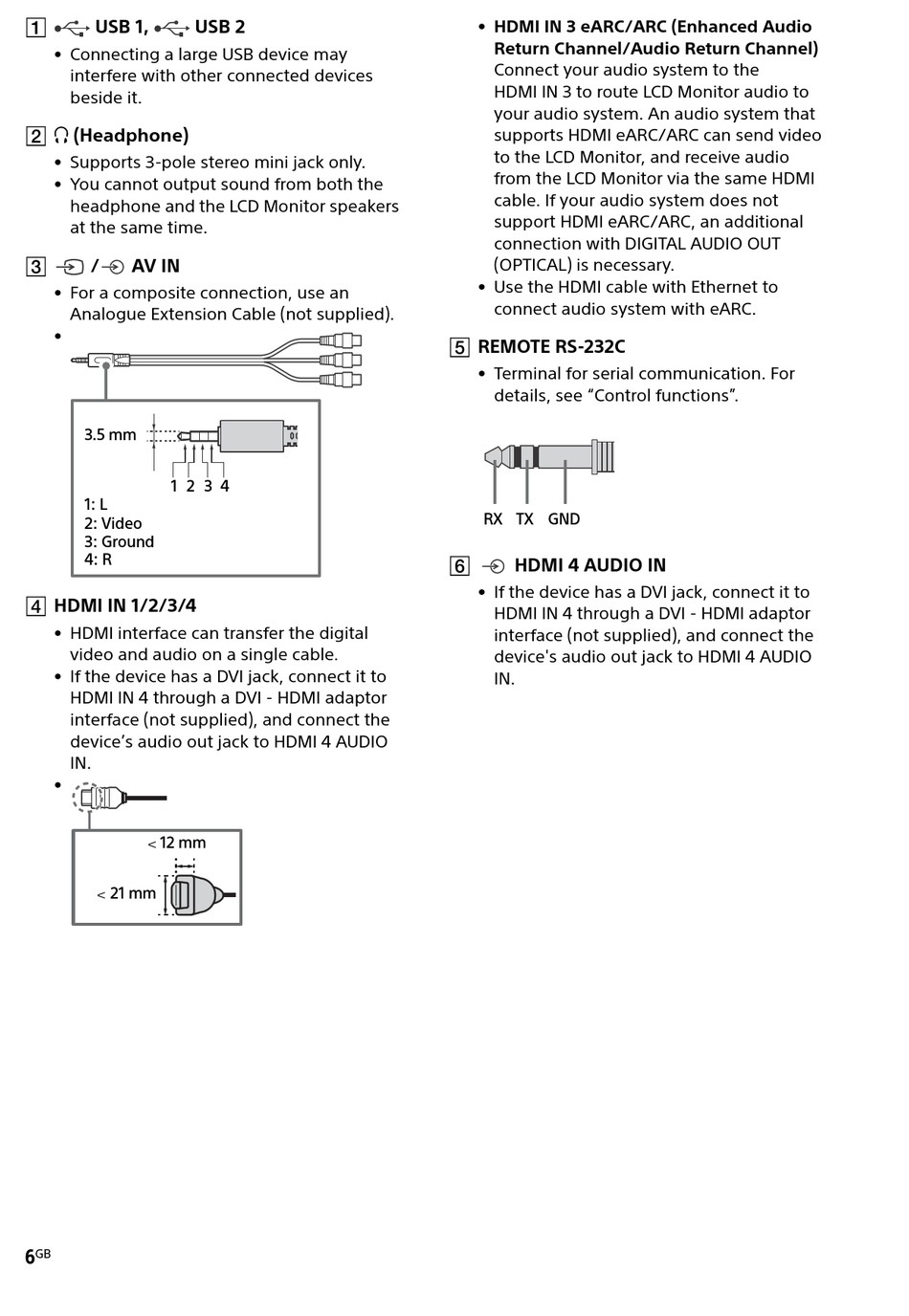

Sony BRAVIA FW-55BZ30J1 Referenz-Anleitung Seite 6


USB 1,
• Connecting a large USB device may
interfere with other connected devices
beside it.
  (Headphone)
• Supports 3-pole stereo mini jack only.
• You cannot output sound from both the
headphone and the LCD Monitor speakers
at the same time.

/ AV IN
• For a composite connection, use an
Analogue Extension Cable (not supplied).
•
3.5 mm
1 2
1: L
2: Video
3: Ground
4: R
 HDMI IN 1/2/3/4
• HDMI interface can transfer the digital
video and audio on a single cable.
• If the device has a DVI jack, connect it to
HDMI IN 4 through a DVI - HDMI adaptor
interface (not supplied), and connect the
device's audio out jack to HDMI 4 AUDIO
IN.
•
12 mm
<
21 mm
<
6
GB
USB 2
3 4
• HDMI IN 3 eARC/ARC (Enhanced Audio
Return Channel/Audio Return Channel)
Connect your audio system to the
HDMI IN 3 to route LCD Monitor audio to
your audio system. An audio system that
supports HDMI eARC/ARC can send video
to the LCD Monitor, and receive audio
from the LCD Monitor via the same HDMI
cable. If your audio system does not
support HDMI eARC/ARC, an additional
connection with DIGITAL AUDIO OUT
(OPTICAL) is necessary.
• Use the HDMI cable with Ethernet to
connect audio system with eARC.
 REMOTE RS-232C
• Terminal for serial communication. For
details, see "Control functions".
RX TX GND

HDMI 4 AUDIO IN
• If the device has a DVI jack, connect it to
HDMI IN 4 through a DVI - HDMI adaptor
interface (not supplied), and connect the
device's audio out jack to HDMI 4 AUDIO
IN.
