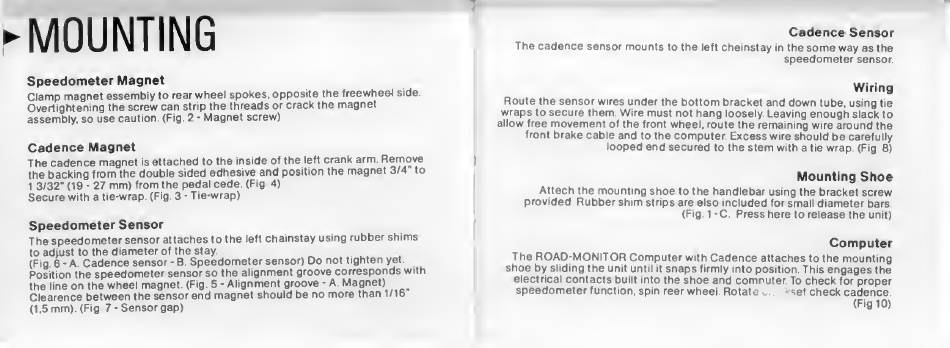

MOUNTING
Speedometer Magnet
Clamp magnet
assembly
to rear
wheel
spokes, opposite the freewheel side
Overtightening the
screw can
strip
the threads or
crack the
magnet
assembly, so use
caution. (Fig.
2
*
Magnet
screw)
Cadence Magnet
The cadence magnet
is
attached
to
the inside of
the
left
crank
arm
Remove
the
backing from
the
double
sided adhesive
and position the
magnet
3/4 to
1
3/32"
(19 -
27
mm)
from the pedal
cade
(Fig. 4)
Secure
with a tie-wrap. (Fig.
3
-
Tie-wrap)
Speedometer
Sensor
The speedometer sensor attaches to
the
left
chainstay using rubber shims
to
adjust to
the
diameter
of
the
stay.
(Fig
6
-
A Cadence
sensor -
B.
Speedometer sensor)
Do
not tighten
yet.
Position the
speedometer sensor so the
alignment groove corresponds
with
the line
on
the
wheel magnet.
(Fig.
5
-
Alignment groove
- A.
Magnet)
Clearance
between
the
sensor and
magnet should be no
more than
1/16
(1,5
mm).
(Fig.
7
-
Sensor
gap)
Cadence
Sensor
The cadence
sensor mounts
to the
left
chainstay
in
the
some way
as the
speedometer
sensor.
Wiring
Route
the sensor
wires
under
the bottom bracket and down
tube, using
tie
wraps
to
secure them. Wire
must not hang
loosely Leaving
enough
slack to
allow free
movement
of the
front
wheel, route the remaining wire
around
the
front
brake cable
and
to the
computer Excess
wire should be
carefully
looped and
secured
to the
stem
with a
tie
wrap
(Fig 8)
Mounting
Shoe
Attach the mounting shoe
to
the handlebar using the bracket screw
provided Rubber shim
strips
are also included
for small
diameter
bars
(Fig.
1
-C.
Press here
to release the
unit)
Computer
The
ROAD-MONITOR
Computer
with
Cadence
attaches
to
the
mounting
shoe
by
sliding the unit
until
it
snaps
firmly into position This
engages
the
electrical
contacts
built into
the
shoe and computer
To
check
for
proper
speedometer
function, spin rear wheel Rotate
v.
set
check cadence
(Fig 10)
