grospol FUTURA 3S PLUS Montageanleitung Seite 3

Inhaltsverzeichnis

Werbung

Verfügbare Sprachen
  • DE

Verfügbare Sprachen

  • DEUTSCH, seite 23
ASSEMBLY
List of parts
Castors - Base • Mechanism • Armrests • Backrest • Headrest • Pneumatic lift •
3 pcs. of M8x20 mm bolts • 3 pcs. of M8x20 mm washers • 2 pcs. of M6x20 mm
bolts • 4 pcs. of M6 washers

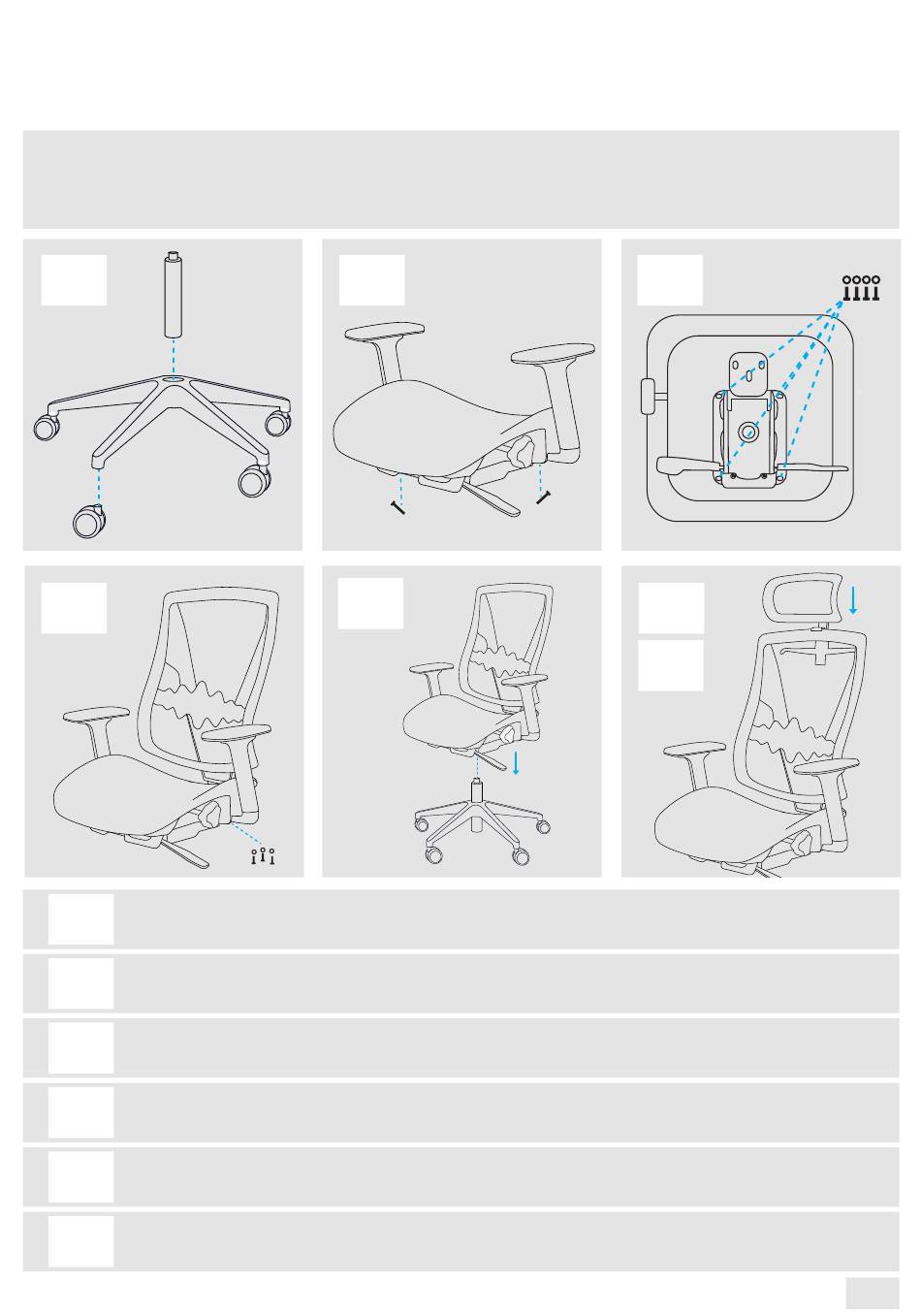

1.
4.
1.
Push the castors and lift into the chair base.
2.
Using the allen key, screw the armrests to the seat using M6x20 mm
bolts.
3.
Fix the mechanism to the seat using M6 bolts and washers.
4.
Screw the backrest to the seat using M8x20 mm bolts and washers.
5.
Put the seat on the pneumatic lift cone. Tighten the tapered
connection by loading the seat once.
6.
Slide the headrest into the seat back (only for Futura 4S Plus version).
