WARNING!
Residual media in and at dismounted instruments can result in a risk to persons, the
environment and equipment. Take sufficient precautionary measures.
Do not use this instrument in safety or Emergency Stop devices. Incorrect use of the
instrument can result in injury.
Should a failure occur, aggressive media with extremely high temperature and under high
pressure or vacuum may be present at the instrument.

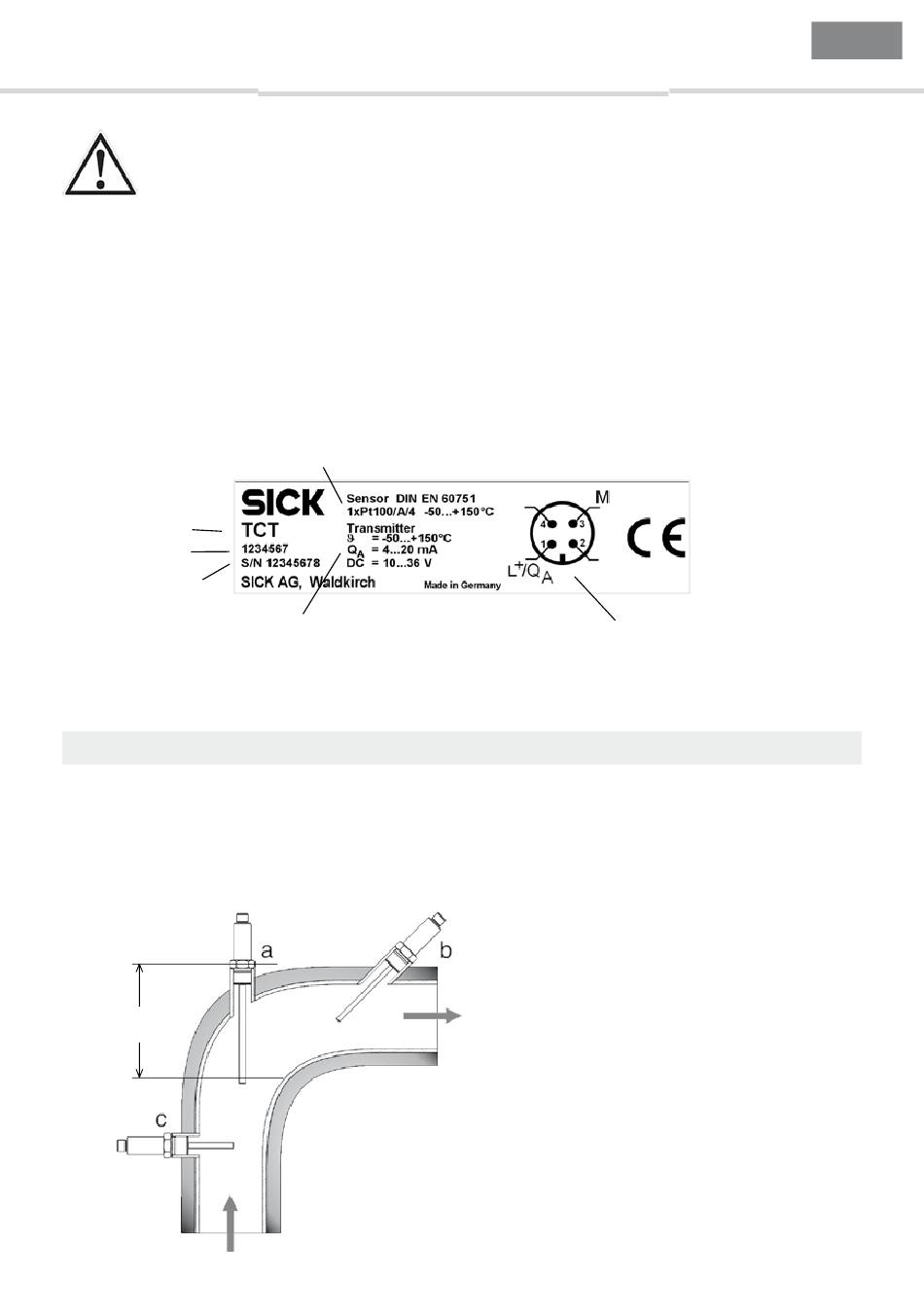

2.4 Labelling / safety marks

Product label
Type
Part number
Serial number
Transmitter (optional)
Measuring range (here: -50 ... + 150 °C)
■
Output signal (4 ... 20 mA)
■
Supply voltage (10 ... 36 V)
■
3. Installation and dimensions
These resistance thermometers are provided for fitting directly into the process. The insertion length
and the flow velocity as well as the viscosity of the process medium may reduce the maximum load
capacity of the thermowell.
Installation examples
Insertion length L
8013875/ZZV7/2018-06-26 © SICK AG • Temperature • Germany• Subject to change without notic
3. Installation and dimensions
Sensor element
Number and type of sensor (1 x Pt100)
■
Accuracy class (A)
■
Wiring configuration (4-wire circuit)
■
Permissible operating temperature range (here: -50 ... + 150 °C)
■
Installation in pipes
a in the elbow fitting
b in a smaller, inclined pipe
c at right angles to the flow direction
Operating instructions
Connection diagram (here: M12x1)
For information on tapped holes,
please refer to DIN 3852 or ANSI B
1.20 for NPT threads.
For process temperatures > 150
°C variants without process
connection and variants with
compression fitting are to be
installed such that the distance
M between the lower edge of the
housing and the installation level
is at least 70 mm (see dimensions
below).
