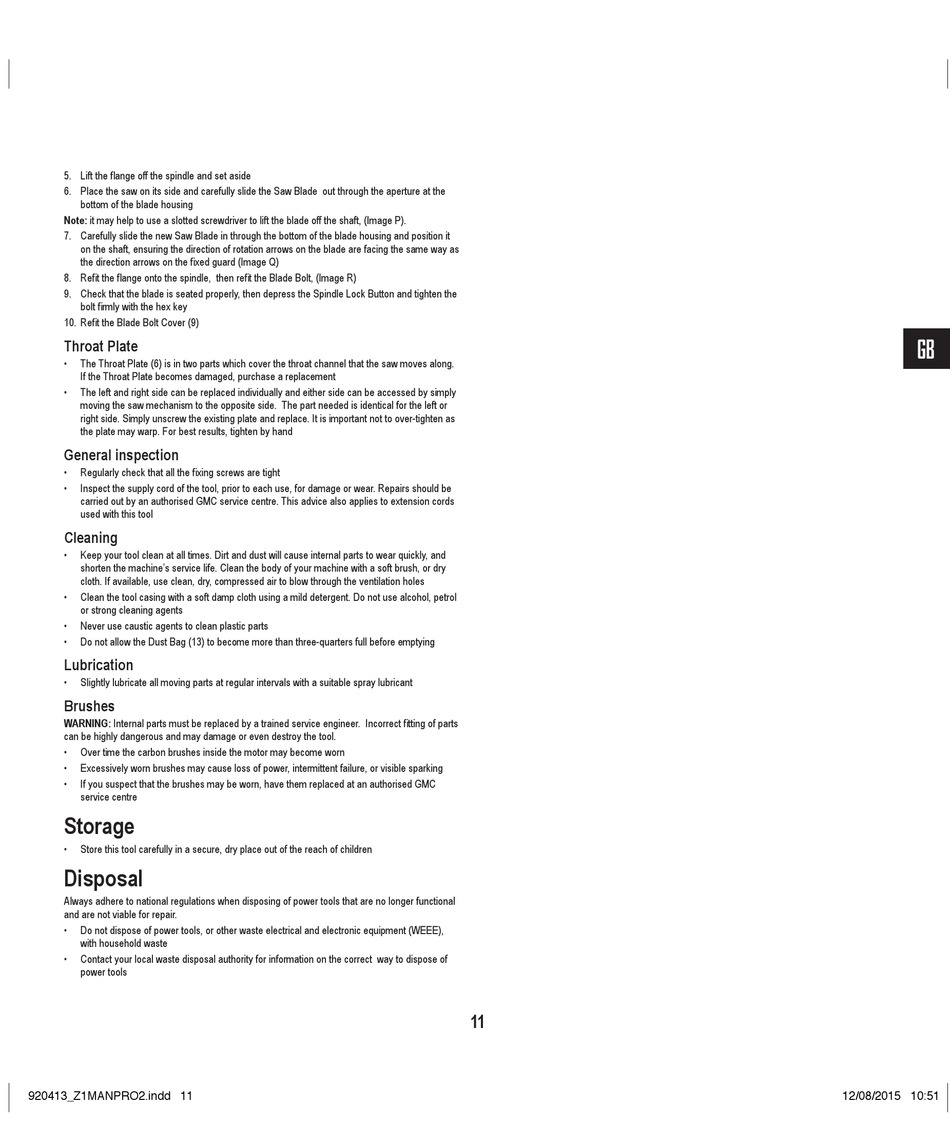

GMC MS018 Anleitung Seite 11

5. Lift the flange off the spindle and set aside
6. Place the saw on its side and carefully slide the Saw Blade out through the aperture at the
bottom of the blade housing
Note: it may help to use a slotted screwdriver to lift the blade off the shaft, (Image P).
7. Carefully slide the new Saw Blade in through the bottom of the blade housing and position it
on the shaft, ensuring the direction of rotation arrows on the blade are facing the same way as
the direction arrows on the fixed guard (Image Q)
8. Refit the flange onto the spindle, then refit the Blade Bolt, (Image R)
9. Check that the blade is seated properly, then depress the Spindle Lock Button and tighten the
bolt firmly with the hex key
10. Refit the Blade Bolt Cover (9)
Throat Plate
• The Throat Plate (6) is in two parts which cover the throat channel that the saw moves along.
If the Throat Plate becomes damaged, purchase a replacement
• The left and right side can be replaced individually and either side can be accessed by simply
moving the saw mechanism to the opposite side. The part needed is identical for the left or
right side. Simply unscrew the existing plate and replace. It is important not to over-tighten as
the plate may warp. For best results, tighten by hand
General inspection
• Regularly check that all the fixing screws are tight
• Inspect the supply cord of the tool, prior to each use, for damage or wear. Repairs should be
carried out by an authorised GMC service centre. This advice also applies to extension cords
used with this tool
Cleaning
• Keep your tool clean at all times. Dirt and dust will cause internal parts to wear quickly, and
shorten the machine's service life. Clean the body of your machine with a soft brush, or dry
cloth. If available, use clean, dry, compressed air to blow through the ventilation holes
• Clean the tool casing with a soft damp cloth using a mild detergent. Do not use alcohol, petrol
or strong cleaning agents
• Never use caustic agents to clean plastic parts
• Do not allow the Dust Bag (13) to become more than three-quarters full before emptying
Lubrication
• Slightly lubricate all moving parts at regular intervals with a suitable spray lubricant
Brushes
WARNING: Internal parts must be replaced by a trained service engineer. Incorrect fitting of parts
can be highly dangerous and may damage or even destroy the tool.
• Over time the carbon brushes inside the motor may become worn
• Excessively worn brushes may cause loss of power, intermittent failure, or visible sparking
• If you suspect that the brushes may be worn, have them replaced at an authorised GMC
service centre
Storage
• Store this tool carefully in a secure, dry place out of the reach of children
Disposal
Always adhere to national regulations when disposing of power tools that are no longer functional
and are not viable for repair.
• Do not dispose of power tools, or other waste electrical and electronic equipment (WEEE),
with household waste
• Contact your local waste disposal authority for information on the correct way to dispose of
power tools
