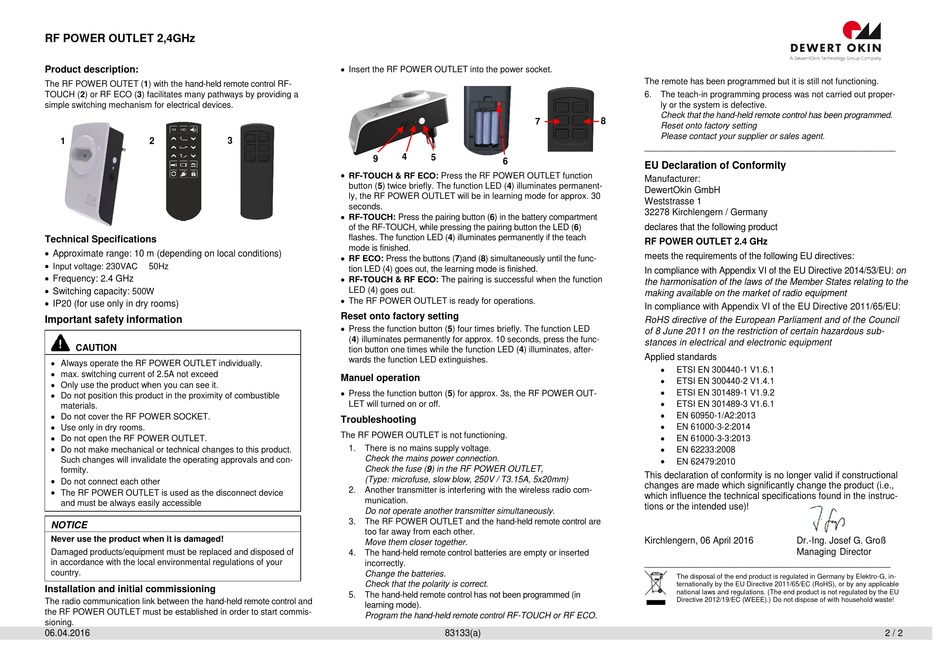

RF POWER OUTLET 2,4GHz
Product description:
The RF POWER OUTET (1) with the hand-held remote control RF-
TOUCH (2) or RF ECO (3) facilitates many pathways by providing a
simple switching mechanism for electrical devices.
1
2
Technical Specifications
Approximate range: 10 m (depending on local conditions)
Input voltage: 230VAC
50Hz
Frequency: 2.4 GHz
Switching capacity:
500W
IP20 (for use only in dry rooms)
Important safety information
CAUTION
Always operate the RF POWER OUTLET individually.
max. switching current of 2.5A not exceed
Only use the product when you can see it.
Do not position this product in the proximity of combustible
materials.
Do not cover the RF POWER SOCKET.
Use only in dry rooms.
Do not open the RF POWER OUTLET.
Do not make mechanical or technical changes to this product.
Such changes will invalidate the operating approvals and con-
formity.
Do not connect each other
The RF POWER OUTLET is used as the disconnect device
and must be always easily accessible
NOTICE
Never use the product when it is damaged!
Damaged products/equipment must be replaced and disposed of
in accordance with the local environmental regulations of your
country.
Installation and initial commissioning
The radio communication link between the hand-held remote control and
the RF POWER OUTLET must be established in order to start commis-
sioning.
06.04.2016
Insert the RF POWER OUTLET into the power socket.
3
4
9
RF-TOUCH & RF ECO: Press the RF POWER OUTLET function
button (5) twice briefly. The function LED (4) illuminates permanent-
ly, the RF POWER OUTLET will be in learning mode for approx. 30
seconds.
RF-TOUCH: Press the pairing button (6) in the battery compartment
of the RF-TOUCH, while pressing the pairing button the LED (6)
flashes. The function LED (4) illuminates permanently if the teach
mode is finished.
RF ECO: Press the buttons (7)and (8) simultaneously until the func-
tion LED (4) goes out, the learning mode is finished.
RF-TOUCH & RF ECO: The pairing is successful when the function
LED (4) goes out.
The RF POWER OUTLET is ready for operations.
Reset onto factory setting
Press the function button (5) four times briefly. The function LED
(4) illuminates permanently for approx. 10 seconds, press the func-
tion button one times while the function LED (4) illuminates, after-
wards the function LED extinguishes.
Manuel operation
Press the function button (5) for approx. 3s, the RF POWER OUT-
LET will turned on or off.
Troubleshooting
The RF POWER OUTLET is not functioning.
1.
There is no mains supply voltage.
Check the mains power connection.
Check the fuse (9) in the RF POWER OUTLET,
(Type: microfuse, slow blow, 250V / T3.15A, 5x20mm)
2.
Another transmitter is interfering with the wireless radio com-
munication.
Do not operate another transmitter simultaneously.
3.
The RF POWER OUTLET and the hand-held remote control are
too far away from each other.
Move them closer together.
4.
The hand-held remote control batteries are empty or inserted
incorrectly.
Change the batteries.
Check that the polarity is correct.
5.
The hand-held remote control has not been programmed (in
learning mode).
Program the hand-held remote control RF-TOUCH or RF ECO.
7
8
5
6
83133(a)
The remote has been programmed but it is still not functioning.
6.
The teach-in programming process was not carried out proper-
ly or the system is defective.
Check that the hand-held remote control has been programmed.
Reset onto factory setting
Please contact your supplier or sales agent.
__________________________________________________
EU Declaration of Conformity
Manufacturer:
DewertOkin GmbH
Weststrasse 1
32278 Kirchlengern / Germany
declares that the following product
RF POWER OUTLET 2.4 GHz
meets the requirements of the following EU directives:
In compliance with Appendix VI of the EU Directive 2014/53/EU: on
the harmonisation of the laws of the Member States relating to the
making available on the market of radio equipment
In compliance with Appendix VI of the EU Directive 2011/65/EU:
RoHS directive of the European Parliament and of the Council
of 8 June 2011 on the restriction of certain hazardous sub-
stances in electrical and electronic equipment
Applied standards
ETSI EN 300440-1 V1.6.1
ETSI EN 300440-2 V1.4.1
ETSI EN 301489-1 V1.9.2
ETSI EN 301489-3 V1.6.1
EN 60950-1/A2:2013
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 62233:2008
EN 62479:2010
This declaration of conformity is no longer valid if constructional
changes are made which significantly change the product (i.e.,
which influence the technical specifications found in the instruc-
tions or the intended use)!
Kirchlengern, 06 April 2016
Dr.-Ing. Josef G. Groß
Managing Director
_________________________________________________
The disposal of the end product is regulated in Germany by Elektro-G, in-
ternationally by the EU Directive 2011/65/EC (RoHS), or by any applicable
national laws and regulations. (The end product is not regulated by the EU
Directive 2012/19/EC (WEEE).) Do not dispose of with household waste!
2 / 2
