NOTE: On conclusion of resetting in case of absence of DMX signal, Pan & Tilt move to the Home position (Pan 50% - Tilt 50%) all the others channels stay at 0%.

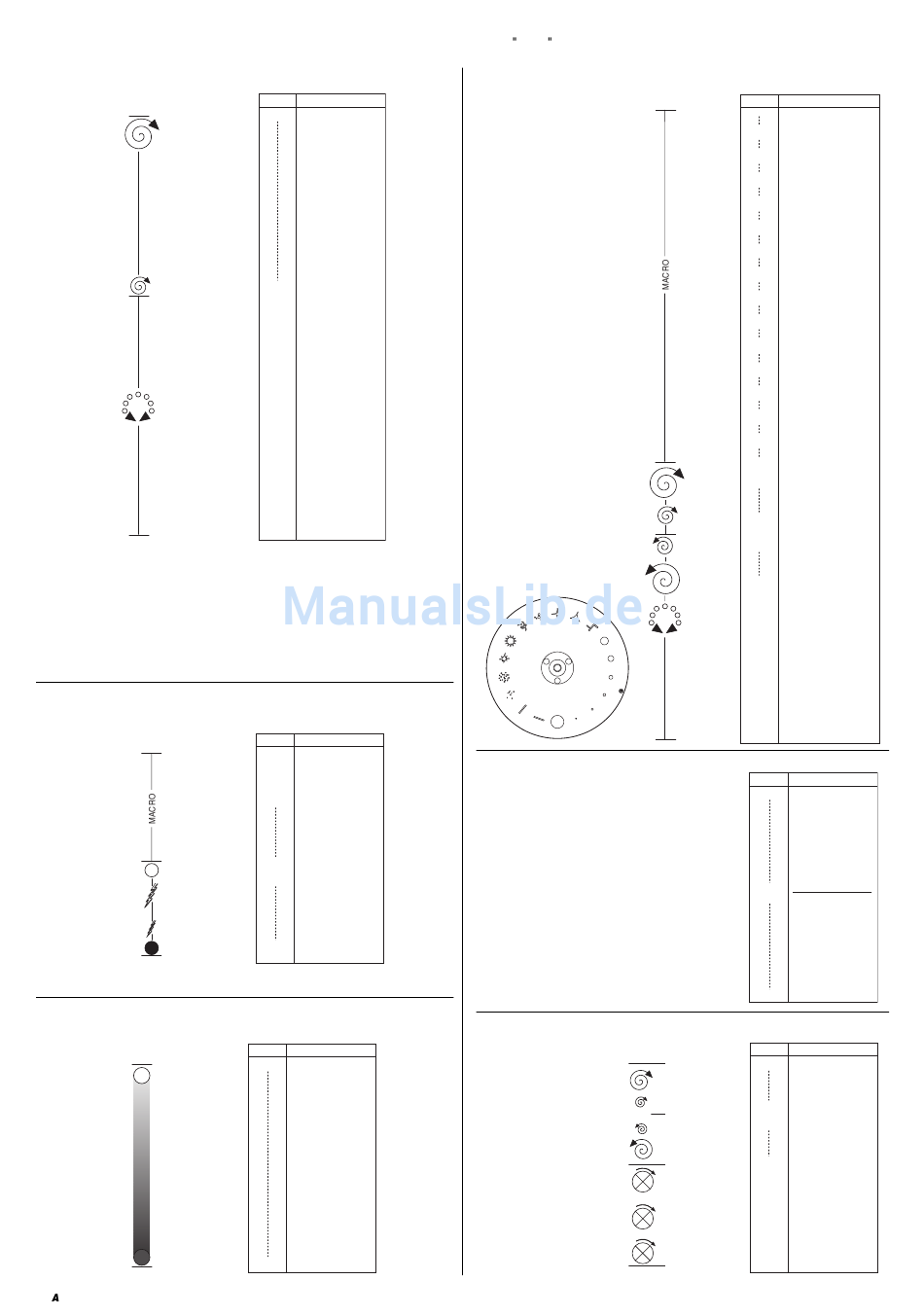

• COLOUR WHEEL - channel 1
• STOP / STROBE - channel 2
• DIMMER - channel 3
SH RPY
BIT EFFECT
255 FAST ROTATION (160 rpm)
128 SLOW ROTATION (0.2 rpm)
124 BLUE + WHITE
120 BLUE
116 CTB 8000 + BLUE
111 CTB 8000
107 CTO 190 + CTB 8000
103 CTO 190
99 CTO 260 + CTO 190
94 CTO 260
90 CYAN + CTO 260
86 CYAN
82 MAGENTA + CYAN
77 MAGENTA
73 YELLOW + MAGENTA
69 YELLOW
64 PINK + YELLOW
60 PINK
56 LAVENDER + PINK
52 LAVENDER
47 LIGHT GREEN + LAVENDER
43 LIGHT GREEN
39 GREEN + LIGHT GREEN
35 GREEN
30 AQUAMARINE + GREEN
26 AQUAMARINE
22 ORANGE + AQUAMARINE
18 ORANGE
13 RED + ORANGE
9 RED
5 WHITE + RED
0 WHITE
BIT EFFECT
252 - 255 OPEN
RANDOM FAST STROBE
239 - 251
226 - 238 RANDOM MEDIUM STROBE
213 - 225 RANDOM SLOW STROBE
208 - 212
OPEN
207 FAST PULSATION (360 bpm)
108 SLOW PULSATION (30 bpm)
104 - 107 OPEN
103 FAST STROBE (12 flash/sec)
4 SLOW STROBE (1 flash/sec)
0 - 3 CLOSED
BIT EFFECT
255
0%-100%: 0.02 sec
0
• STATIC GOBO CHANGE - channel 4
9
10
8
11 7
12
6
13 5
14
4
3
15
16 2
17
1
WHITE
• PRISM INSERTION - channel 5
• PRISM ROTATION - channel 6
STOP
24
BIT EFFECT
255 GOBO 16 SHAKE FAST SPEED (600 bpm)
250 GOBO 16 SHAKE, SLOW SPEED (24 bpm)
249 GOBO 15 SHAKE FAST SPEED
244 GOBO 15 SHAKE, SLOW SPEED
243 GOBO 14 SHAKE FAST SPEED
237 GOBO 14 SHAKE, SLOW SPEED
236 GOBO 13 SHAKE FAST SPEED
231 GOBO 13 SHAKE, SLOW SPEED
230 GOBO 12 SHAKE FAST SPEED
224 GOBO 12 SHAKE, SLOW SPEED
223 GOBO 11 SHAKE FAST SPEED
218 GOBO 11 SHAKE, SLOW SPEED
217 GOBO 10 SHAKE FAST SPEED
212 GOBO 10 SHAKE, SLOW SPEED
211 GOBO 9 SHAKE FAST SPEED
205 GOBO 9 SHAKE, SLOW SPEED
204 GOBO 8 SHAKE FAST SPEED
199 GOBO 8 SHAKE, SLOW SPEED
198 GOBO 7 SHAKE FAST SPEED
192 GOBO 7 SHAKE, SLOW SPEED
191
GOBO 6 SHAKE FAST SPEED
186 GOBO 6 SHAKE, SLOW SPEED
185 GOBO 5 SHAKE FAST SPEED
180 GOBO 5 SHAKE, SLOW SPEED
179 GOBO 4 SHAKE FAST SPEED
173 GOBO 4 SHAKE, SLOW SPEED
172 GOBO 3 SHAKE FAST SPEED
167 GOBO 3 SHAKE, SLOW SPEED
166 GOBO 2 SHAKE FAST SPEED
160 GOBO 2 SHAKE, SLOW SPEED
159 FAST ROTATION (60 rpm)
118 SLOW ROTATION (5 rpm)
114-117 STOP
113 SLOW ROTATION (5 rpm)
72 FAST ROTATION (60 rpm)
68-71 GOBO 17
64-67 GOBO 16
60-63 GOBO 15
56-59 GOBO 14
52-55 GOBO 13
48-51 GOBO 12
44-47 GOBO 11
40-43 GOBO 10
36-39 GOBO 9
32-35 GOBO 8
28-31 GOBO 7
24-27 GOBO 6
20-23 GOBO 5
16-19 GOBO 4
12-15 GOBO 3
8-11 GOBO 2
4-7 GOBO 1
0-3 WHITE
BIT EFFECT
255
PRISM INSER
0%-100%: 0.36 sec
128
127
PRISM EXCLUDED
0
BIT EFFECT
255 FAST ROTATION (43 rpm)
193 SLOW ROTATION (1.1 rph)
191 - 192 STOP
190 SLOW ROTATION (1.1 rph)
128 FAST ROTATION (43 rpm)
127 POSITION 540°
540°
105 POSITION 450°
84 POSITION 360°
360°
63 POSITION 270°
42 POSITION 180°
21
POSITION 90°
0°
0 POSITION 0°
TED
