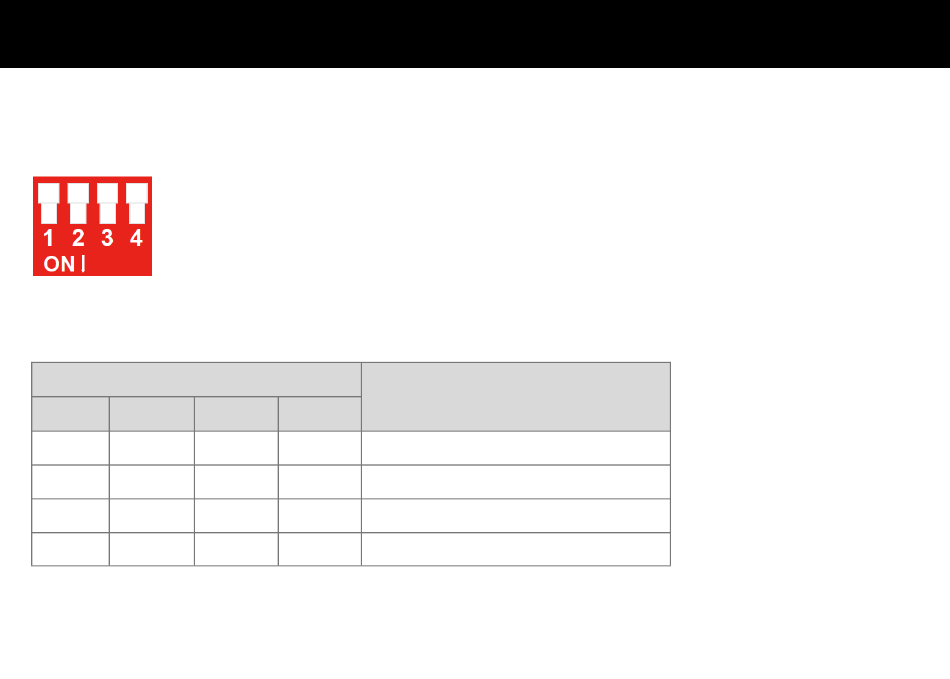

DIP Switch Settings

This device equips a 4-pin DIP switch for settings of RS232 working mode (RS232 pass-through, MCU firmware update or Valens firmware update).
By default, all the four switches are set in (up, up, up, up) positions.
The following table shows how the DIP Switch functions:
DIP Position
1 2
X X
X X
X X
X X
Function
3 4
up up RS232 pass through (default)
down up RS232 for MCU firmware update
up down RS232 for Valens firmware update
down down Reserved
