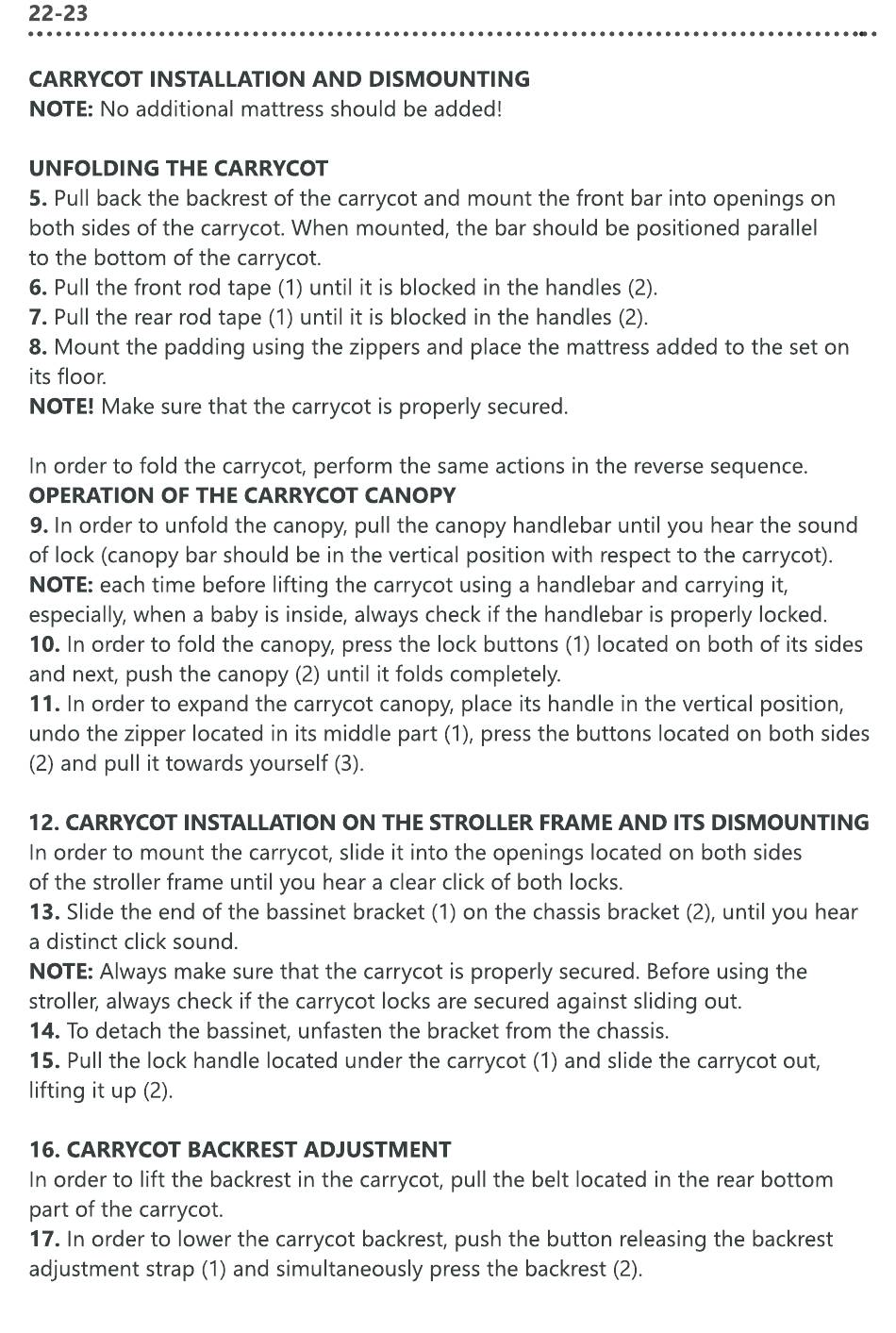

22-23
CARRYCOT INSTALLATION
NOTE: No additional
UNFOLDING THE
5. Pull back the backrest of the carrycot and mount the front bar into openings on
both sides of the carrycot. When mounted, the bar should be positioned parallel
to the bottom of the carrycot.
6. Pull the front rod tape (I) until it is blocked in the handles (2).
7. Pull the rear rod tape (I) until it is blocked in the handles (2).
8. Mount the padding using the zippers and place the mattress added to the set on
its floor.
NOTE! Make sure that the carrycot is properly secured
In order to fold the carrycot, perform the same actions in the reverse sequence.
OPERATION OF THE
9. In order to unfold the canopy, pull the canopy handlebar until you hear the sound
of lock (canopy bar should be in the vertical position with respect to the carrycot).
NOTE: each time before lifting the carrycot using a handlebar and carrying it,
especially, when a baby is inside, always check if the handlebar is properly locked.
10. In order to fold the canopy, press the lock buttons (I) located on both of its sides
and next, push the canopy (2) until it folds completely.
II. In order to expand the carrycot canopy, place its handle in the vertical position,
undo the zipper located in its middle part (1), press the buttons located on both sides
(2) and pull it towards yourself (3).
12. CARRYCOT INSTALLATION
In order to mount the carrycot, slide it into the openings located on both sides
of the stroller frame until you hear a clear click of both locks.
13. Slide the end of the bassinet bracket (1) on the chassisbracket (2), until you hear
a distinct click sound.
NOTE: Always make sure that the carrycot is properly secured. Before using the
stroller, always check if the carrycot locks are secured against sliding out.
14. To detach the bassinet, unfasten the bracket from the chassis.
15. Pull the lock handle located under the carrycot (1) and slide the carrycot out,
lifting it up (2).
16. CARRYCOT BACKREST
In order to lift the backrest in the carrycot, pull the belt located in the rear bottom
part of the carrycot.
17. In order to lower the carrycot backrest, push the button releasing the backrest
adjustment strap (1) and simultaneously press the backrest (2).
AND DISMOUNTING
mattress should
CARRYCOT
CARRYCOT CANOPY
ON THE
ADJUSTMENT
be added!
STROLLER FRAME AND ITS DISMOUNTING
