Fletcher FrameMaster Betriebsanweisung Seite 9

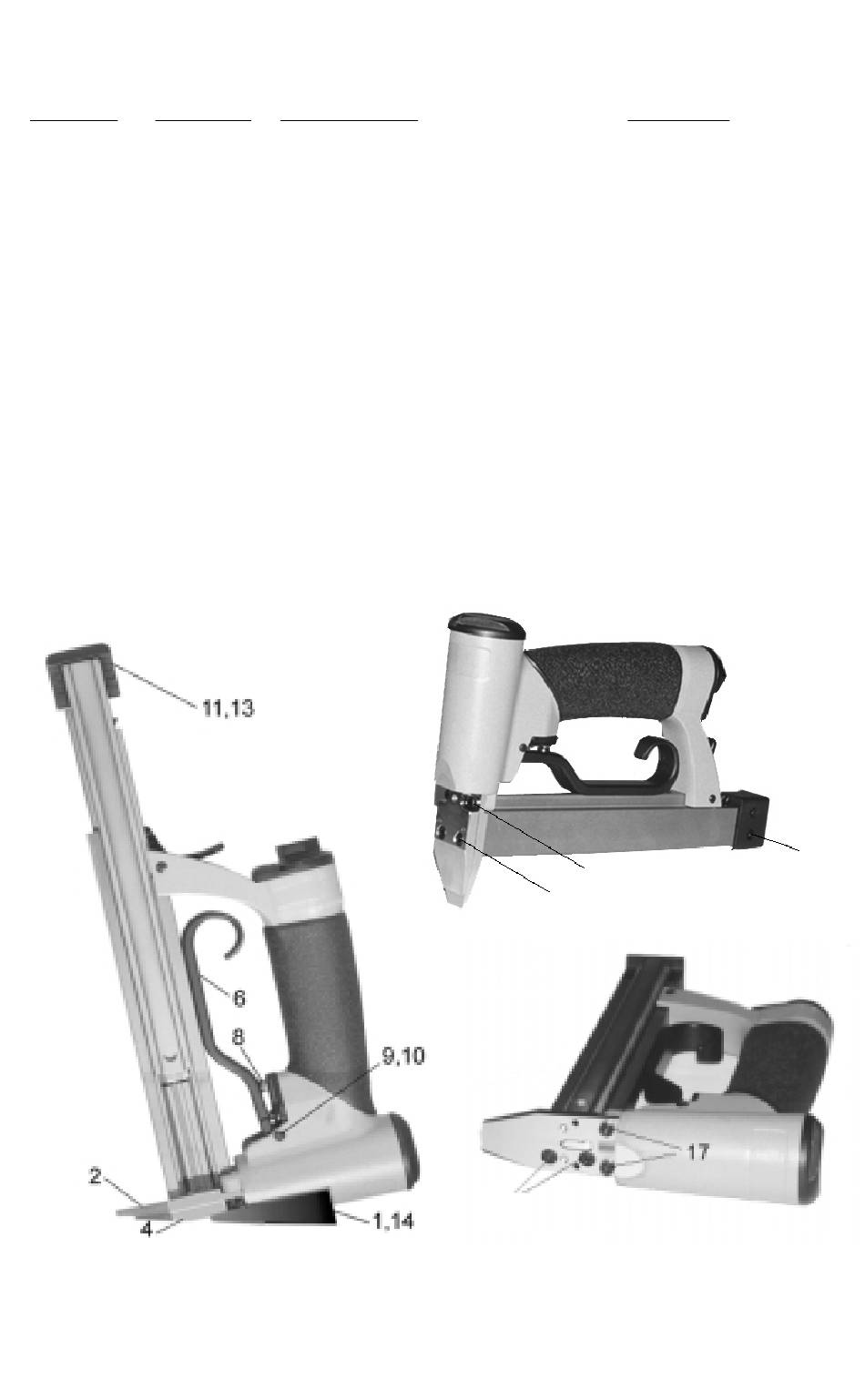

Pneumatic FrameMaster
Ref.No. Part No.
1 12-635
2 12-636
4 12-637
6 12-638
8 12-639
9 12-640
10 12-641
11 12-642
13 12-643
14 12-644
15 12-645
16 12-645
17 12-646
18* 12-647
19* 12-648
*Not Shown
Description
Stabilizing Shoe
Upper Guide
Lower Guide
Trigger
Trigger Spring
Trigger Pin
Retaining Clip
End Cap
End Cap Screw
Stabilizing Shoe Screw
Lower Guide Mtg. Screw
Upper Guide Mtg. Screw
Guide Assembly Mtg. Screw
3mm Hex Wrench
Air Oil
9
®
Quantity
1
1
1
1
1
1
1
1
2
1
2
2
2
1
1
17
15
16
13
