Seite 1

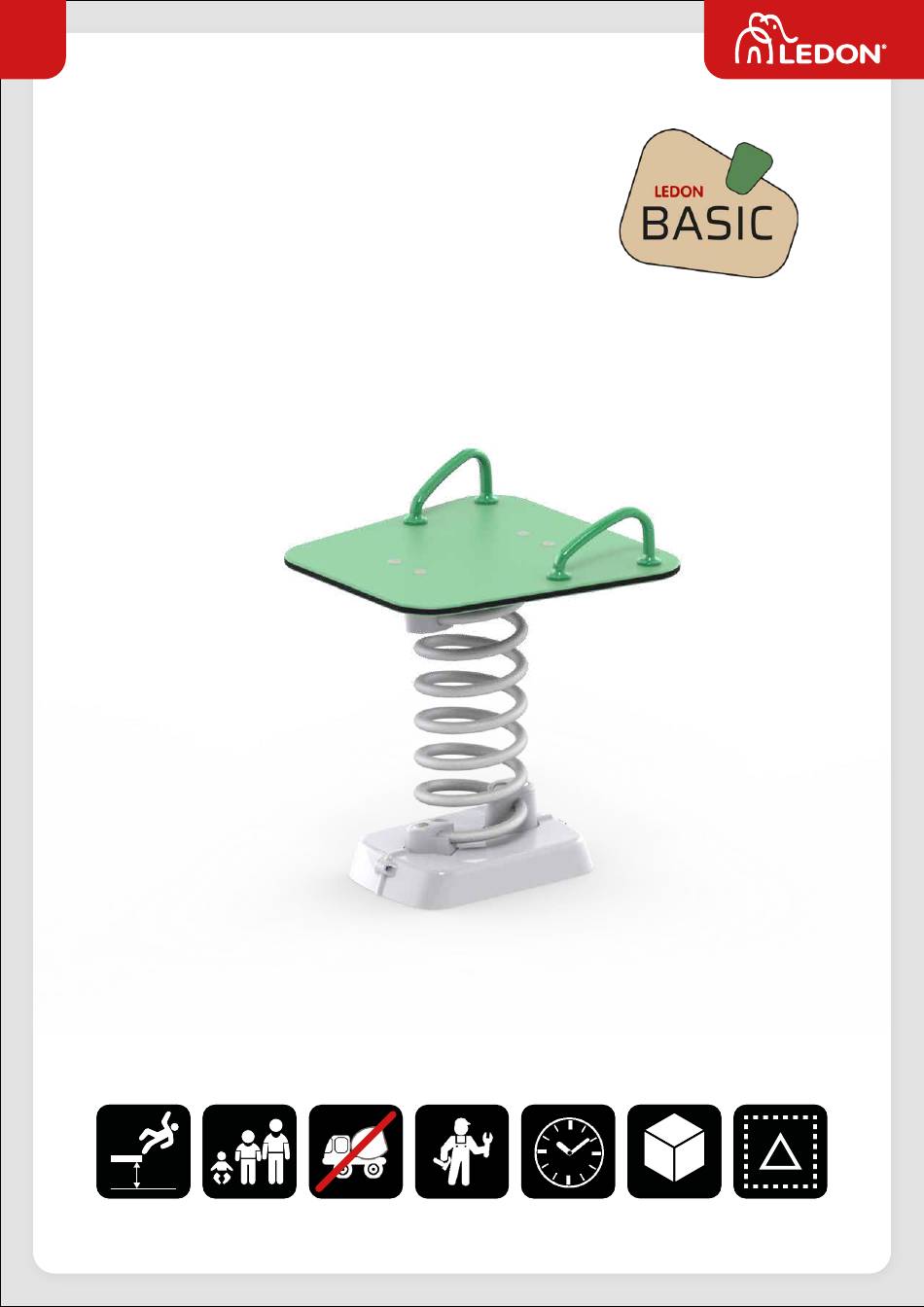

Revision: 1.0 LB010 Date: Feb 19, 2021 Bobi Assembly instructions Montageanleitung • Montagevejledning (LxW) (LxWxH) 45 cm Nej/No 47 x 48 x 54 cm 285 x 248 cm...
Seite 2
Good advice and tips Ein paar gute Ratschläge und Tipps • Gode råd og vejledning • Take all components from the pallet and place them on the ground • Compare with components list – is everything there? • Be at all times precise when measuring •...
Seite 3
Clearance and safety surfaces Platzbedarf und Fallschutzunterlage • Pladshensyn og faldunderlag Safety surface in accordance with EN 1176 Fallschutzunterlag gemäß EN 1176 Faldunderlag i overensstemmelse med EN 1176 (*) Areas are accurately calculated values which are difficult to achieve in practice. Height •...
Seite 4
Components overview Bauteileübersicht • Komponentoversigt Bolt bag M10x50mm UH M10 LN M10 Not top - Black 400,10 100910 400,002 4040901...
Seite 5
Site preparation Vorbereitung • Pladsforberedelse Digging depths • Grabtiefen • Gravedybder: 55cm...
