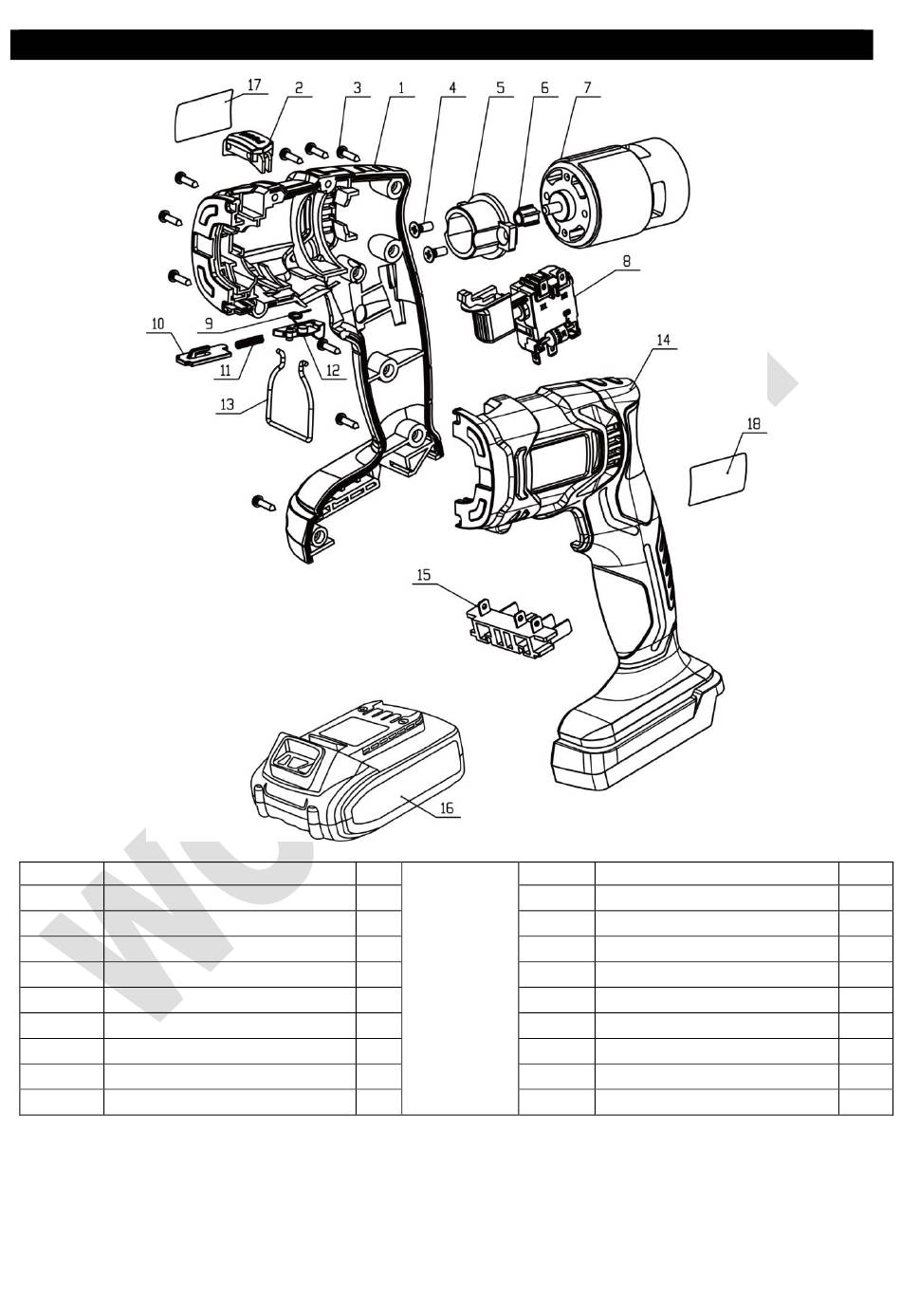

Exploded view & Part list of CPC-S20Li—machine body
Part No Part Name
1 Right housing
2 Safefty lock-off knob
3 Self-tapping scew
4 Flat head screw
5 Fixing block
6 Motor gear
7 Motor
8 Switch
9 Spring
Qty Part No
1
1
9
2
1
1
1
1
1
Part Name
10 Anti-locking button
11 Spring
12 Spacer
13 Stel wire
14 Left housing
15 Connect foot
16 Battery pack (optional)
17 Parameter label
18 Logo lable
Qty
1
1
1
1
3
1
1
2
1
