8. Rope roller guide should be assembled in a way that
facilitates pulling the rope in and out. The rope roller gu-
ide may not be mounted directly to the winch. The guide
roller should be attached to the mounting plate.
IMPORTANT
i
If there is not enough room to mount the winch,
the gear with the handle can be rotated by any
angle. Not applicable to DWH 9000-15000.

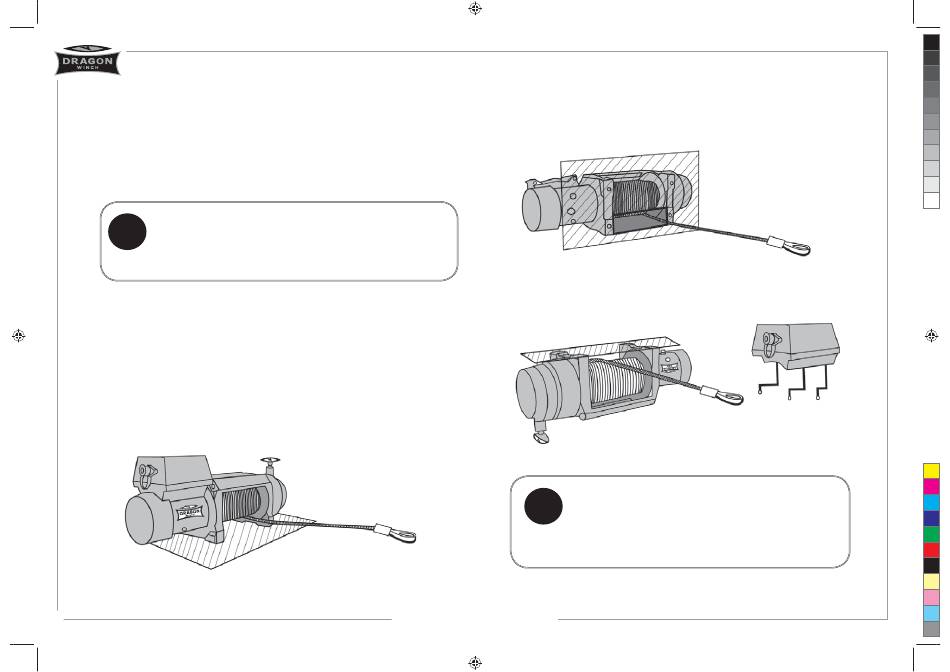

Methods for mounting the Dragon Winch devices recom-
mended by the manufacturer:
1. Standard mounting:
winch with mounting plate on the bottom.
38
2. Installation of the winch with mounting plate on the
side.
3. Installation of the winch with mounting plate on the
top.
IMPORTANT
i
When mounting the winch as shown in Fig.
3 the control box must be transferred and
mounted with the cover facing up.
