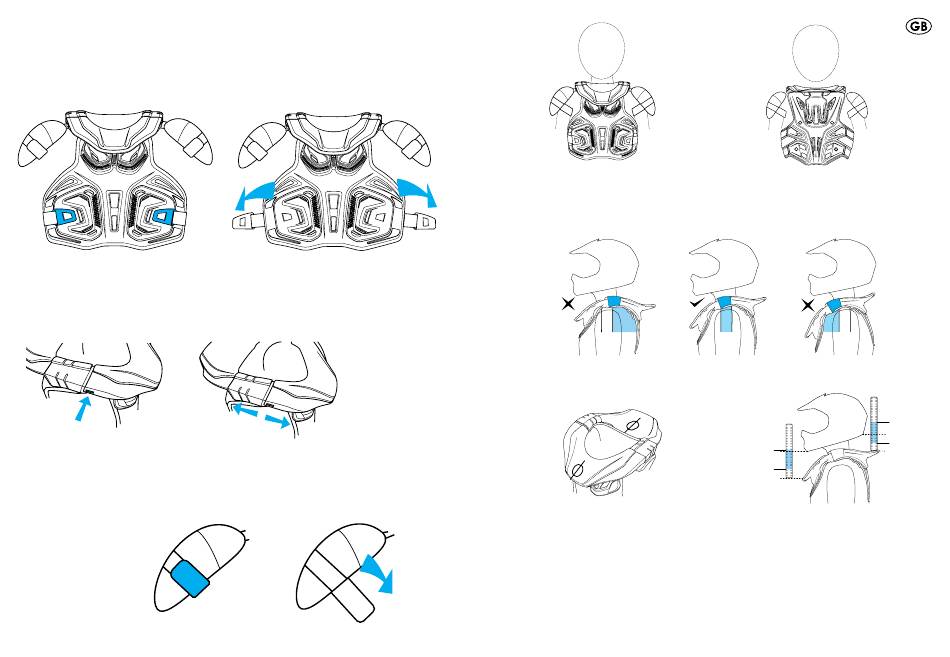

Fitment and Adjusting
1. Waist belt
1a.
Open the waist belt on both sides.
2. Neck Brace
2a.
Next open the neck brace by pushing the release button (1a) on the right
side of the brace (2b) and pull the brace shoulder appart.
3. Shoulders
Locate the shoulder
3a.
straps under the
shoulder cups (3a)
and pull the upper
strap away from the
bottom strap (3b)
5
1b.
2b.
3b.
Copyright © 2017, Leatt ® Corporation
4. Fit
4a.
front
Put the protector on, makes sure the it is the right side around front to front (4a)
and back to back (4b). Go through steps 1- 3 in reverse to close everything up.
5. Fitment check
5a.
Be sure to check that the brace shoulder sits directly over your shoulder.
Adjust Waist Belt (1) till brace shoulder fits correctly.
Back
5b.
Front
Use help to measure from the bottom of the helmet rim to the top of the neck
brace platform (5b). The zone of optimum effectiveness is between 50 - 80 mm in
Front and 50 - 90 mm in Back (5c).
Please Note!
If the Fusion does not correctly fit and cover the areas specified , an
alternative size may be required. Please contact Leatt ® Corporation or go to
www.leatt.com if you require further advice on sizing, adjustment or fitting.
