7. Operation

7.1 Power supply
Connect your EL-Micro with the line adapter and connect it with the power supply.
Please make sure that you are using the correct voltage. False voltages could des-
troy the device. Please use the voltage specified at the end of this manual. Don't
focus the front of the laser on people while installation.

7.2 Switch on / off

Set the switch on the back side of the laser on "On" to switch the device on or "Off"
to switch the device off. The auto mode is active when "On" is set.
7.3 Stroboflash
Set the switch on "Stroboflash" to activate the flash effect. The laser output will be
interrupted in certain intervals. Fine tuning will be made by the trim pots.
7.4 Voice Controller
The music mode is active when "Voice Controller" is activated. Fine tuning can be
made by the trim pots.
7.5 Trim Pots
There are 3 trim pots on the back side of the device: "Voice Controller Stroboflash",
"Auto Stroboflash" and "Motor Speed Controller".
7.5.1 Voice Controller Stroboflash: If your device is in the music mode you can con-
trol the sensivity of the micro with the trim pot "Voice Controller Stroboflash". Thus
it is possible to adapt the EL-Micro to the music or other sounds.
7.5.2 Auto Stroboflash: With the trim pot "Auto Stroboflash" you can set the speed
of the flash effect.
7.5.3 Motor Speed Controller: You can set the movement of the pattern of the laser
effects with the "Motor Speed Controller".

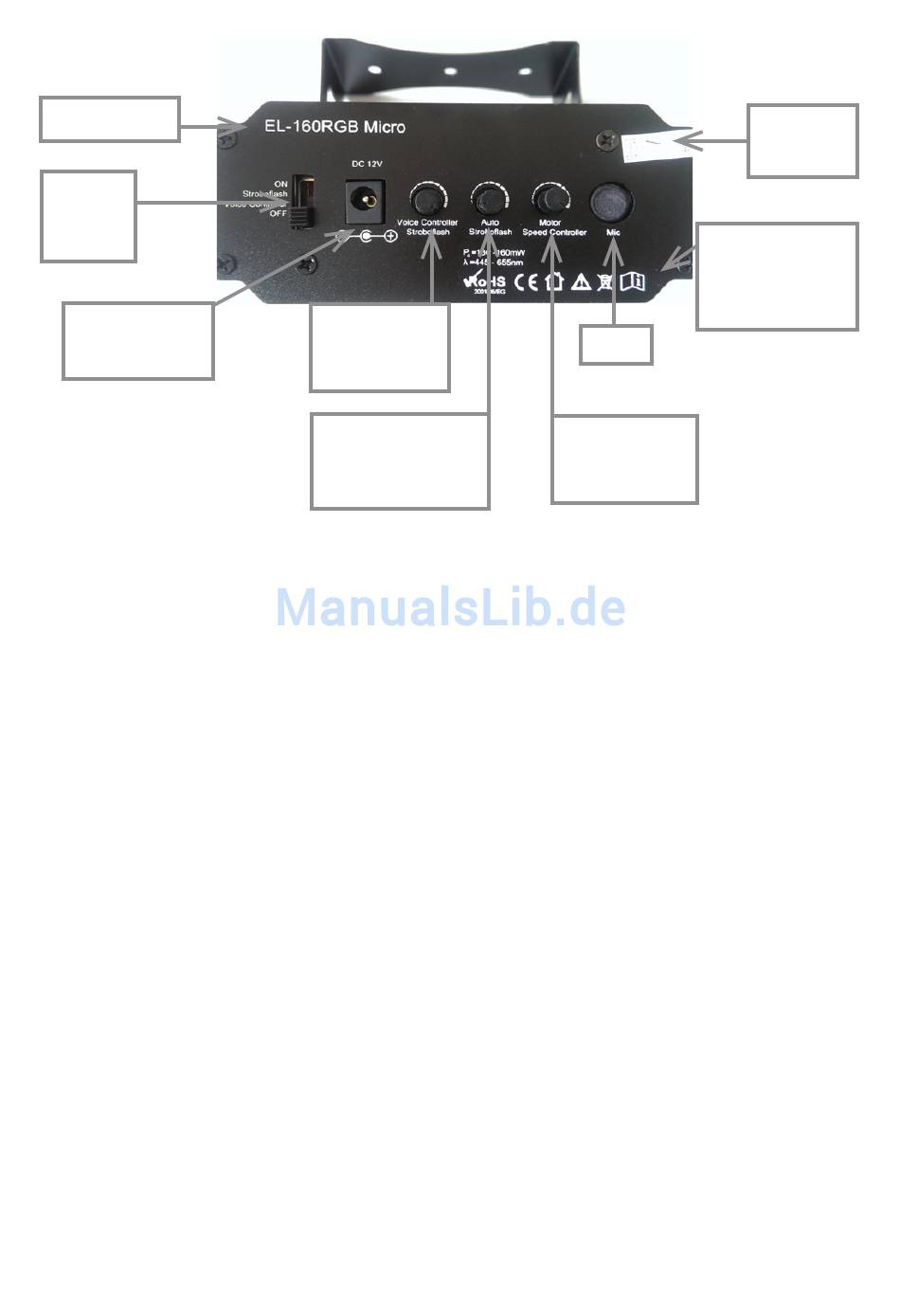

Sensivity
control of the
music mode
Control of the
flashing frequen-
cy in strobo mode
Output power
& wavelength,
Micro
Speed control
of the effect
movements
