COLORKINETICS Light System Manager gen6 Installationsanweisungen Seite 3

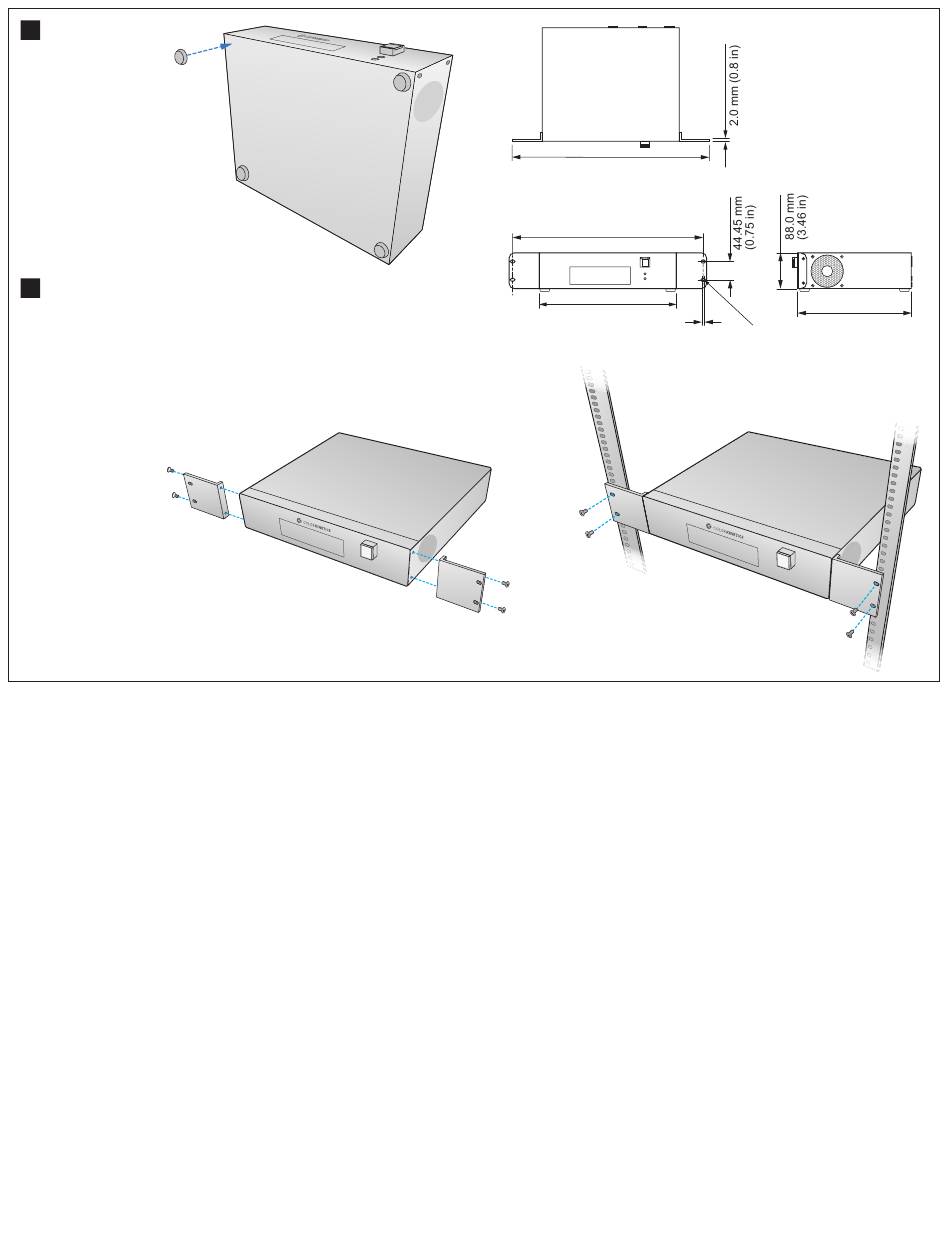

Apply feet
4
Appliquer les pieds
Aplicar los pies
Applicare i piedi
Voeten aanbrengen
Füße anbringen
足を適用します。
应用脚
Rack mount (optional)
5
Montage en rack (facultatif)
Montaje en bastidor (opcional)
Montaggio a rack (opzionale)
Rekbevestiging (optioneel)
Rack-Montage (optional)
ラックマウント （オプション
机架安装（可选
Included with
Light System
Manager gen6
Torque to
1.0 to 1.35 N-m
(9 to 12 in-lbs)
481.8 mm (18.97 in)
465.0 mm (18.3 in)
335.0 mm (13.2 in)
5.0 mm
(0.2 in)
Typical M6 x 16 mm
(10-32 x 5/8 in)
customer supplied
Light System Manager gen6 Installation Instructions 3
280.0 mm (11.0 in)
Ø 7.0 mm
(0.28 in)
