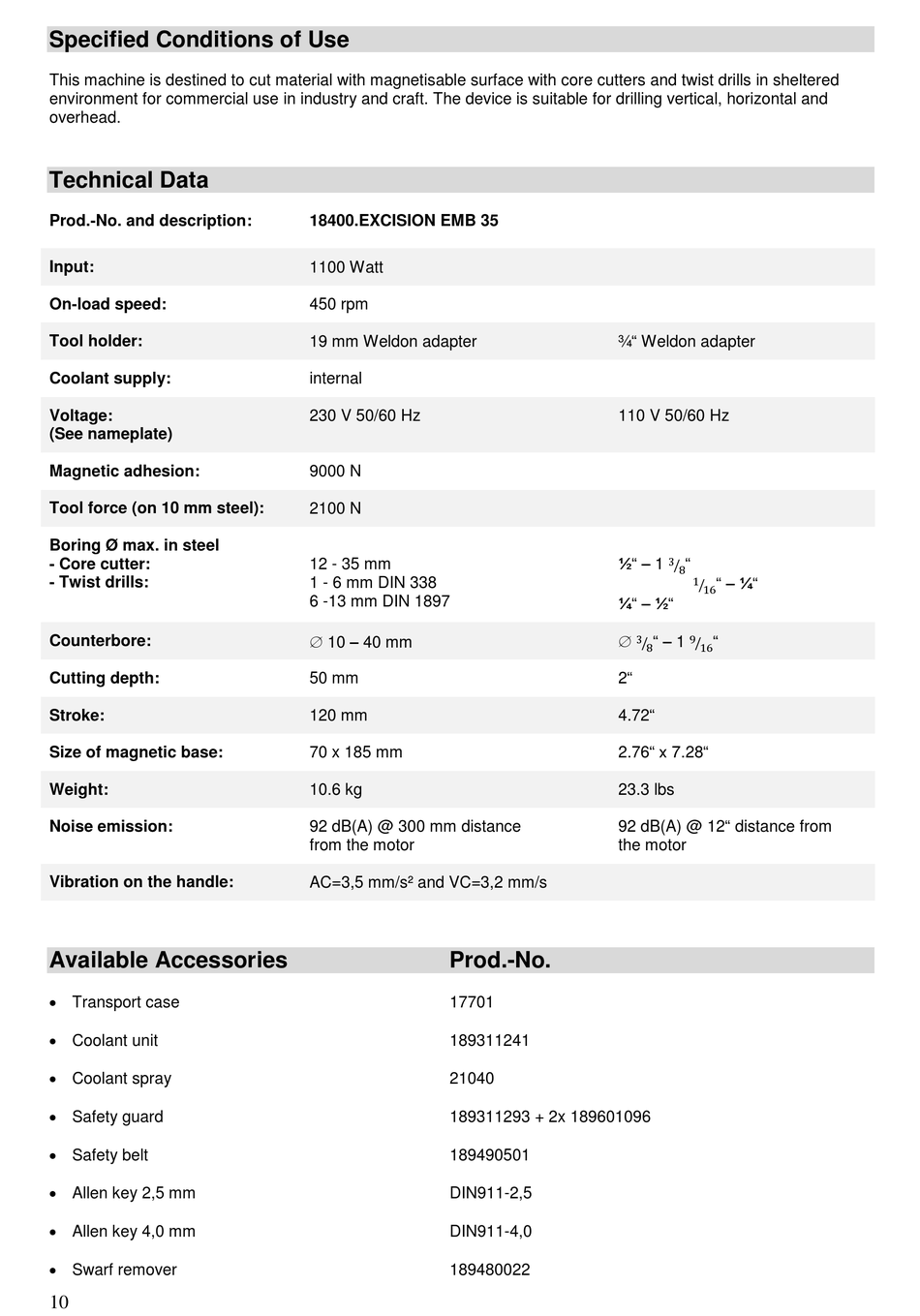

Specified Conditions of Use
This machine is destined to cut material with magnetisable surface with core cutters and twist drills in sheltered
environment for commercial use in industry and craft. The device is suitable for drilling vertical, horizontal and
overhead.
Technical Data
Prod.-No. and description:
Input:
On-load speed:
Tool holder:
Coolant supply:
Voltage:
(See nameplate)
Magnetic adhesion:
Tool force (on 10 mm steel):
Boring Ø max. in steel
- Core cutter:
- Twist drills:
Counterbore:
Cutting depth:
Stroke:
Size of magnetic base:
Weight:
Noise emission:
Vibration on the handle:
Available Accessories
 Transport case
 Coolant unit
 Coolant spray
 Safety guard
 Safety belt
 Allen key 2,5 mm
 Allen key 4,0 mm
 Swarf remover
10
18400.EXCISION EMB 35
1100 Watt
450 rpm
19 mm Weldon adapter
internal
230 V 50/60 Hz
9000 N
2100 N
12 - 35 mm
1 - 6 mm DIN 338
6 -13 mm DIN 1897
 10 – 40 mm
50 mm
120 mm
70 x 185 mm
10.6 kg
92 dB(A) @ 300 mm distance
from the motor
AC=3,5 mm/s² and VC=3,2 mm/s
Prod.-No.
17701
189311241
21040
189311293 + 2x 189601096
189490501
DIN911-2,5
DIN911-4,0
189480022
¾" Weldon adapter
110 V 50/60 Hz
½" – 1 3 "
8 ⁄
1 " – ¼"
⁄
16
¼" – ½"

3 " – 1 9 "
8 ⁄ ⁄
16
2"
4.72"
2.76" x 7.28"
23.3 lbs
92 dB(A) @ 12" distance from
the motor
