8 – SETTING NODO-MASTER TO "SLAVE" MODE

8-1 - CONNECTIONS

Use cables as shown in paragraph 5. Refer to fig. 3b.
Connect feeding cables from power supply to M5 terminal block, respecting the polarity.
Connect the cable toward the fixtures to M6 terminal block, respecting the polarity.
Connect "–" and "S" on M7 of "Master" NODO-MASTER to "–" and "S" on M2 of "Slave" NODO-MASTER, respecting the polarity.
On "slave" NODO-MASTER do NOT connect either M1 to DALI bus or M4 to DMX bus.

8.2 - DIP-SWITCHES SETTINGS FOR SLAVE MODE

Please refer to fig. 8.
To set the bus type, locate S1 dip-switches. To set SLAVE:
S1-1: OFF
S1-2: OFF
S1-3: ON
S1-4: OFF
To set S2: copy on "Slave" NODO-MASTER the setting used on "Master" NODO-MASTER to whom "Slave" NODO-MASTER is connec-
ted to. Addresses set on "Slave" NODO-MASTER are NOT occupied on DALI or DMX buses.
S3 and S4 are meaningless under "Slave" NODO-MASTER mode.

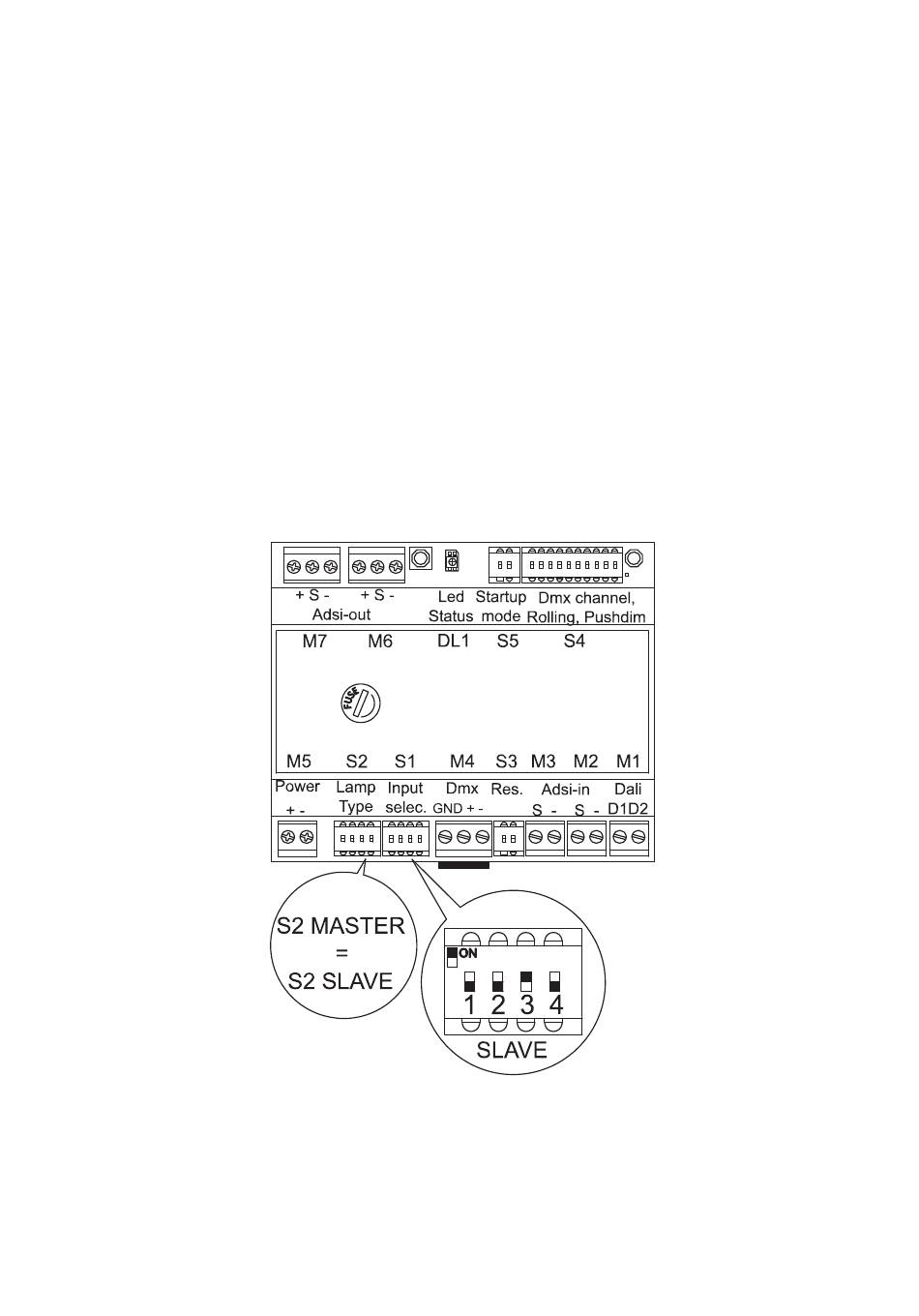

Fig. 8: Settings of dip-switches in "SLAVE" mode
