Field of application:
The audio / video converter converts an analog composite signal into HDMI.
The video signal is upscaled to a resolution of 720p or 1080p. This allows an
analog audio / video source (such as a camera, game console, or DVD player)
to be connected to a TV, monitor, or projector with an HDMI port. The input
supports the PAL, PAL-M, PAL-N, NTSC3.58, NTSC4.43, SECAM standards.
Use the devices only as specified in this operating instructions. If the devices
are used for other applications, no guarantee is given!
Scope of delivery:
1 × AVC 1-00 Audio/Video-Umsetzer HDMI
1 × Steckernetzteil
1 × HDMI-Kabel, 1 m
1 × Betriebsanleitung

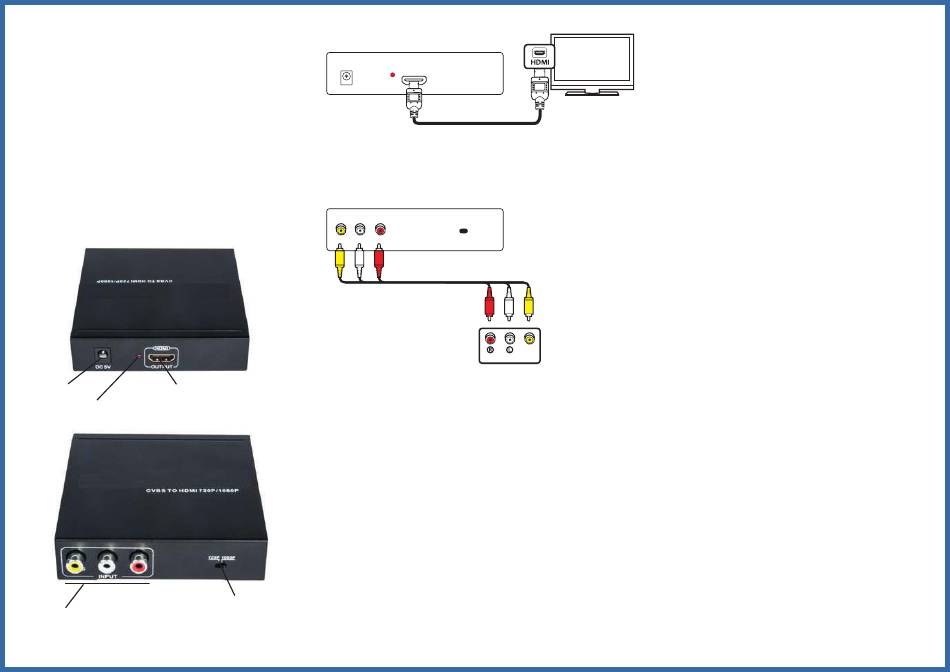

Display elements and connectors:
12V DC
HDMI output
LED (lights up when voltage is applied)
audio/video input
yellow = composite video signal
white = audio left
red = audio right
Connection of the HDMI output:
Connection of the audio/video intput:
switch for
HDMI resolution
720p/1080p
Installation:
Turn off all equipment (TV, DVD player, etc.) and disconnect the AC
Use the supplied HDMI cable to connect the AVC 1-00 to the TV.
Use 3 RCA cables to connect the audio / video source to the AVC 1-00
Connect the power adapter to the 5V DC power connector and plug the
Turn on the audio / video source.
Turn on the TV and switch to the input to which the AVC 1-00 is
Adjustments:
The resolution can be switched between 720p and 1080p (recommendation:
720p).
audio/video source
adapter from the wall outlet before connecting or disconnecting any
cables.
power adapter into a power outlet.
The LED of the AVC 1-00 lights up.
connected.
