01/11 MN03402002Z-DE/EN
Settings
j
4

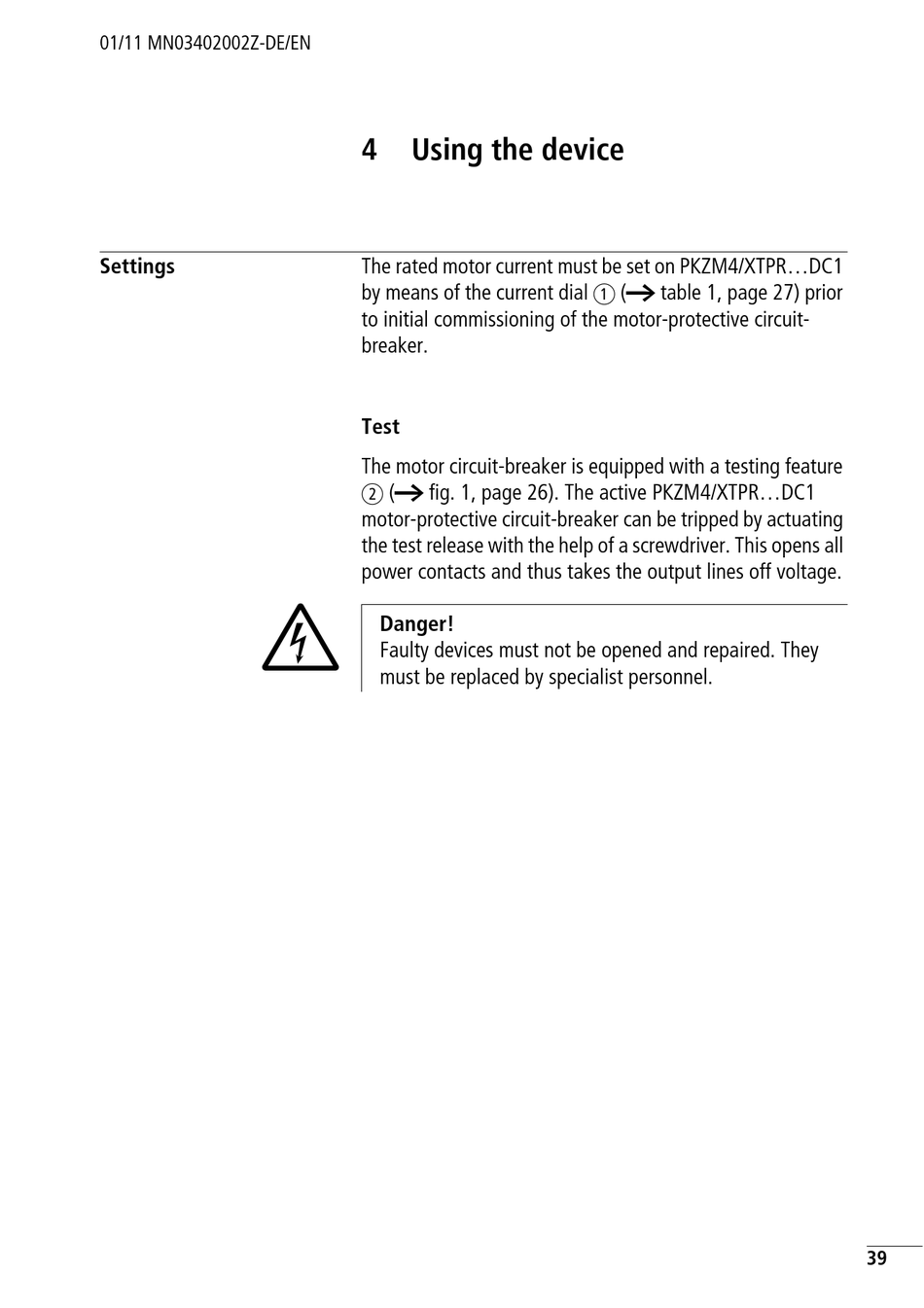

Using the device

The rated motor current must be set on PKZM4/XTPR...DC1
by means of the current dial a (a table 1, page 27) prior
to initial commissioning of the motor-protective circuit-
breaker.
Test
The motor circuit-breaker is equipped with a testing feature
b (a fig. 1, page 26). The active PKZM4/XTPR...DC1
motor-protective circuit-breaker can be tripped by actuating
the test release with the help of a screwdriver. This opens all
power contacts and thus takes the output lines off voltage.
Danger!
Faulty devices must not be opened and repaired. They
must be replaced by specialist personnel.
39
