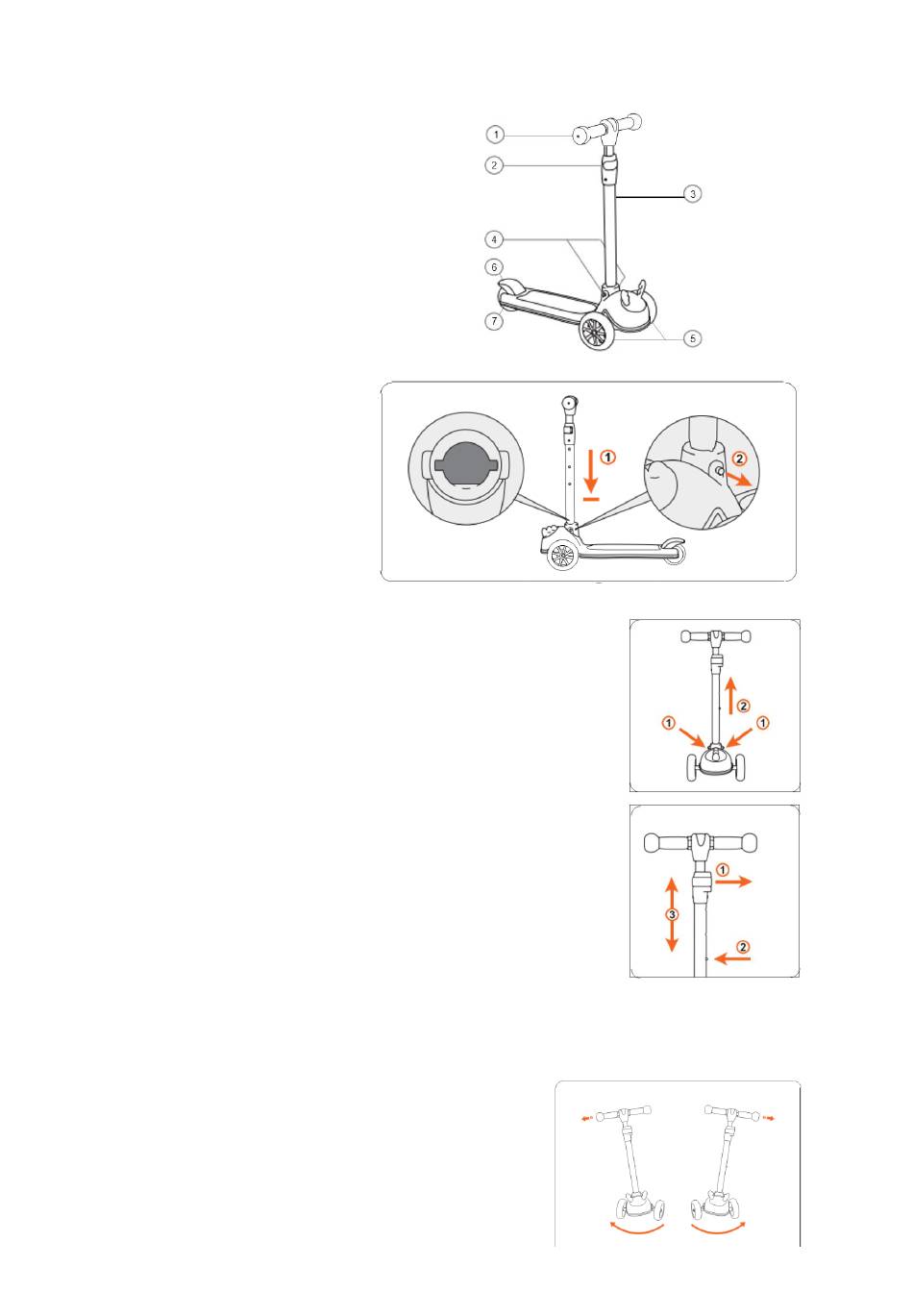

PARTS OF THE SET:
1. Steering wheel
2. Steering wheel height adjustment lock clamp
3. Steering bar
4. Steering wheel lock buttons
5. Front wheels
6. Brake
7. Rear wheel
STEERING WHEEL ASSEMBLY
To connect the handlebar to the platform, push the
handlebar rod into the mounting hole until it audibly
locks into place. The locking mechanism will make a
"click" sound and, on the outside of the mounting
hole, buttons will appear to unlock and remove the
handlebar bar.
CAUTION: Ensure that the locking mechanism is active and that the steering wheel is stationary in the mounting hole.
STEERING WHEEL REMOVAL
To separate the handlebar bar from the platform,
press both handlebar lock buttons simultaneously and
pull the bar out of the mounting hole.
ADJUSTMENT
To change the height of the steering wheel, pivot the
steering wheel height adjustment locking handle. Then
press the locking pin so that it does not protrude
beyond the outline of the handlebar bar and adjust
the height of the handlebar to one of the three
available levels until the locking pin pops out
appearing in a hole on the side of the handlebar bar.
To fully secure the handlebar, tighten the handlebar
height adjustment lock handle.
CAUTION: Once you have set the correct height for your child's handlebars, make sure that the locking pin extends
beyond the bar, which means that the handlebar height lock is active and that the locking handle is fully tightened and
against the handlebar bar.
DIRECTIONS:
The scooter is turned by tilting the handlebar bar to
the right or left.
CAUTION: The handlebar bar should not rotate .
