Seite 1

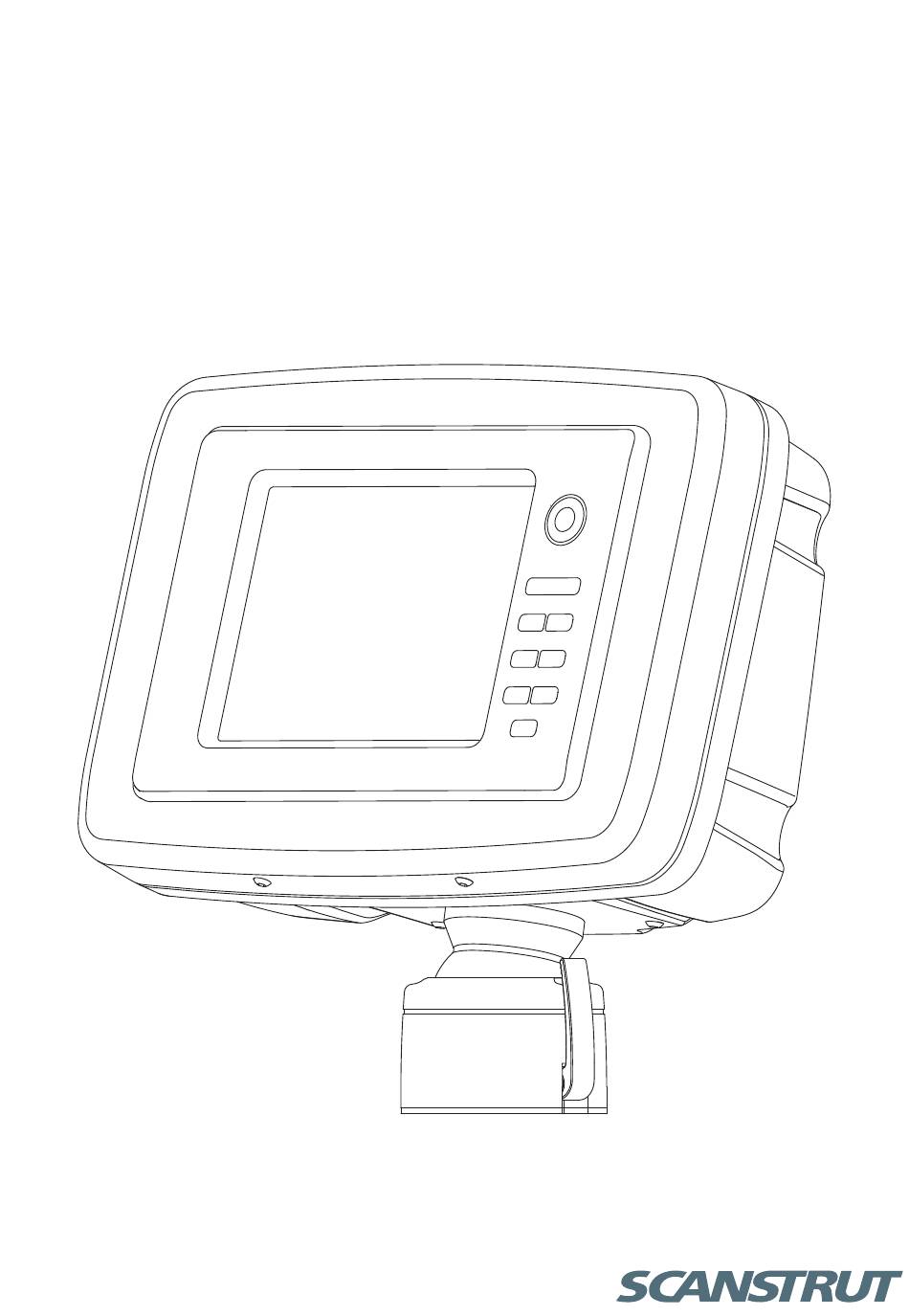

Scanstrut Scanpod Installation Instructions DECK POD ®...
Seite 2
23-08/2019 Issue H SPD-7/7S/8/9/12/13 Parts List Tools Required x6/x8 60548 Pod Back 6x 60548 Assembled Deck Pod Base SPD-7/7S Jigsaw/Spiral SPD-8/9/ 8x 60548 60540 12/13 4/5 x 60513 620645 60514 60546 4/5 x 4x 60513 Hole Saw ø50-52mm (2") 60704...
Seite 3
Deck Pod Maximum Maximum Overall cut-out area usable face dimensions mm / inches mm / inches mm / inches mm / inches mm / inches mm / inches SPD-7S-W 218/8.5 140.5/5.5 240/9.4 159/6.25 275/10.8 196/7.7 Max cut-out SPD-7-W 218/8.5 140.5/5.5 240/9.4...
