EN
Mounting
Before mounting this product, read the

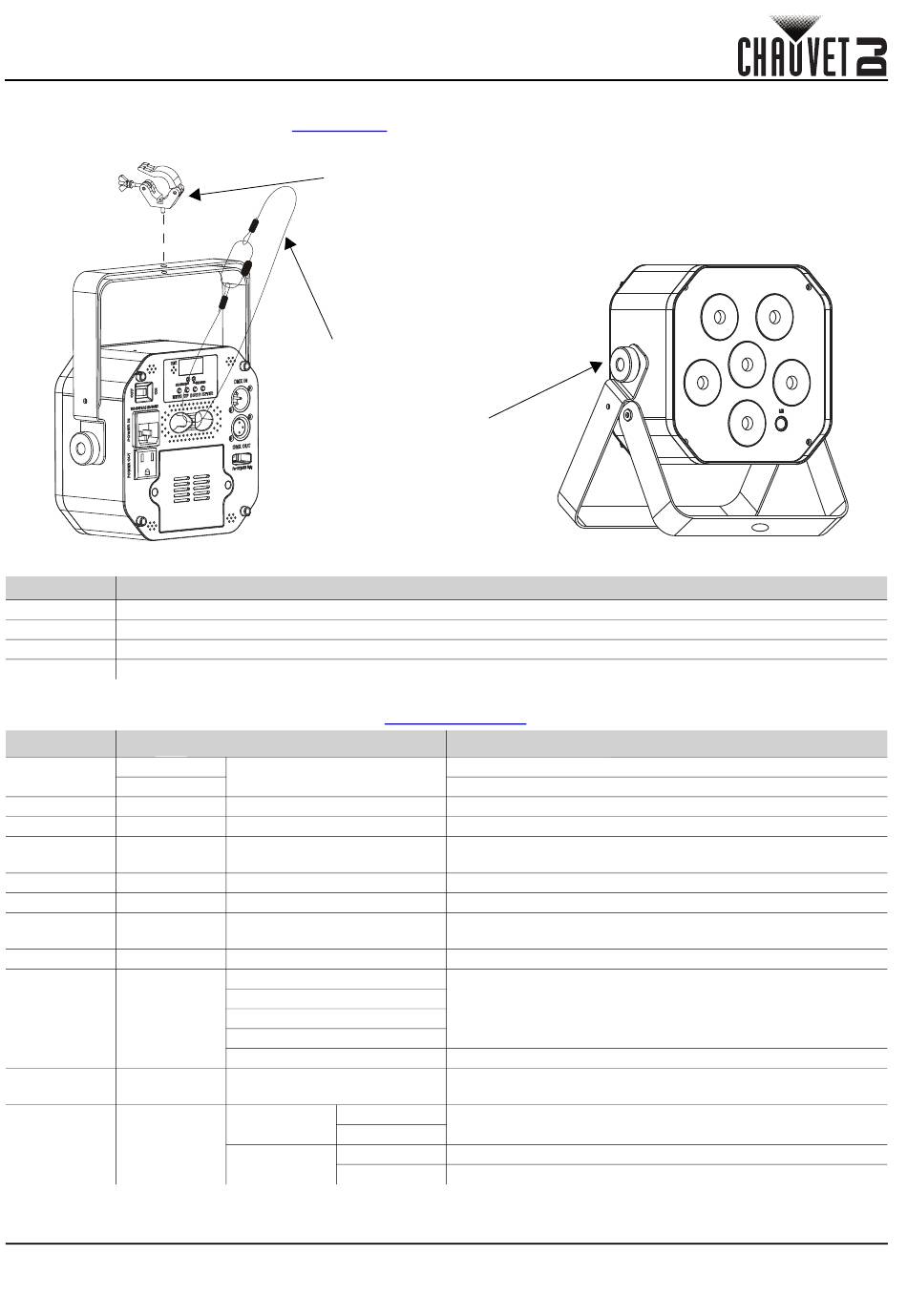

Mounting Diagram
Control Panel Description
Button
Function
<MENU>
Exits from the current menu or function
<UP>
Navigates upwards through the menu list and increases the numeric value when in a function
<DOWN>
Navigates downwards through the menu list and decreases the numeric value when in a function
<ENTER>
Enables the currently displayed menu or sets the currently selected value into the selected function
Menu Map
Refer to the EZLink Par Q6BT ILS product page on
Mode
4Ch
DMX Mode
8Ch
ILS Mode
iLS
Static Colors
C--
Automatic
P--
Programs
Auto Speed
S--
Dimmer
d--
Sound-
Snd
Active Mode
Sensitivity
SEnS
Custom
u--
Color Mixing
Bluetooth
bLE
Mode*
Control
SEt
Mode
*The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by
Chauvet & Sons, LLC is under license. Other trademarks and trade names are those of their respective owners.
3
QUICK REFERENCE GUIDE
Safety
Notes.
Mounting clamp
(such as CLP-15 from
Chauvet)
Safety cable
(such as CH-05 from Chauvet)
Programming Levels
d 1–509
iLS1–4
C 1–15
P 1–5
S. 1–100
L. 1–255
Snd1–5
u 0–100
r. 0–255
G. 0–255
b. 0–255
A. 0–255
S. 0–100
_ _ _ _ _
ir
SLAV
out
Bracket
adjustment
knob (x2)
www.chauvetdj.com
for the latest menu map.
Description
4-channel DMX mode
8-channel DMX mode
Sets ILS mode
Static colors
Automatic programs
Program speed for P 1–5
Dimmer
Sound-active programs
Sound sensitivity
Custom static colors combine red, green, blue, and amber
Strobe rate
Bluetooth control mode, displays Bluetooth ID
on
Turns infrared on or off
oFF
Enable Master/Slave with other BT products
dMX
Enable Master/Slave with non-BT products
EZLink Par Q6BT ILS QRG Rev. 1
